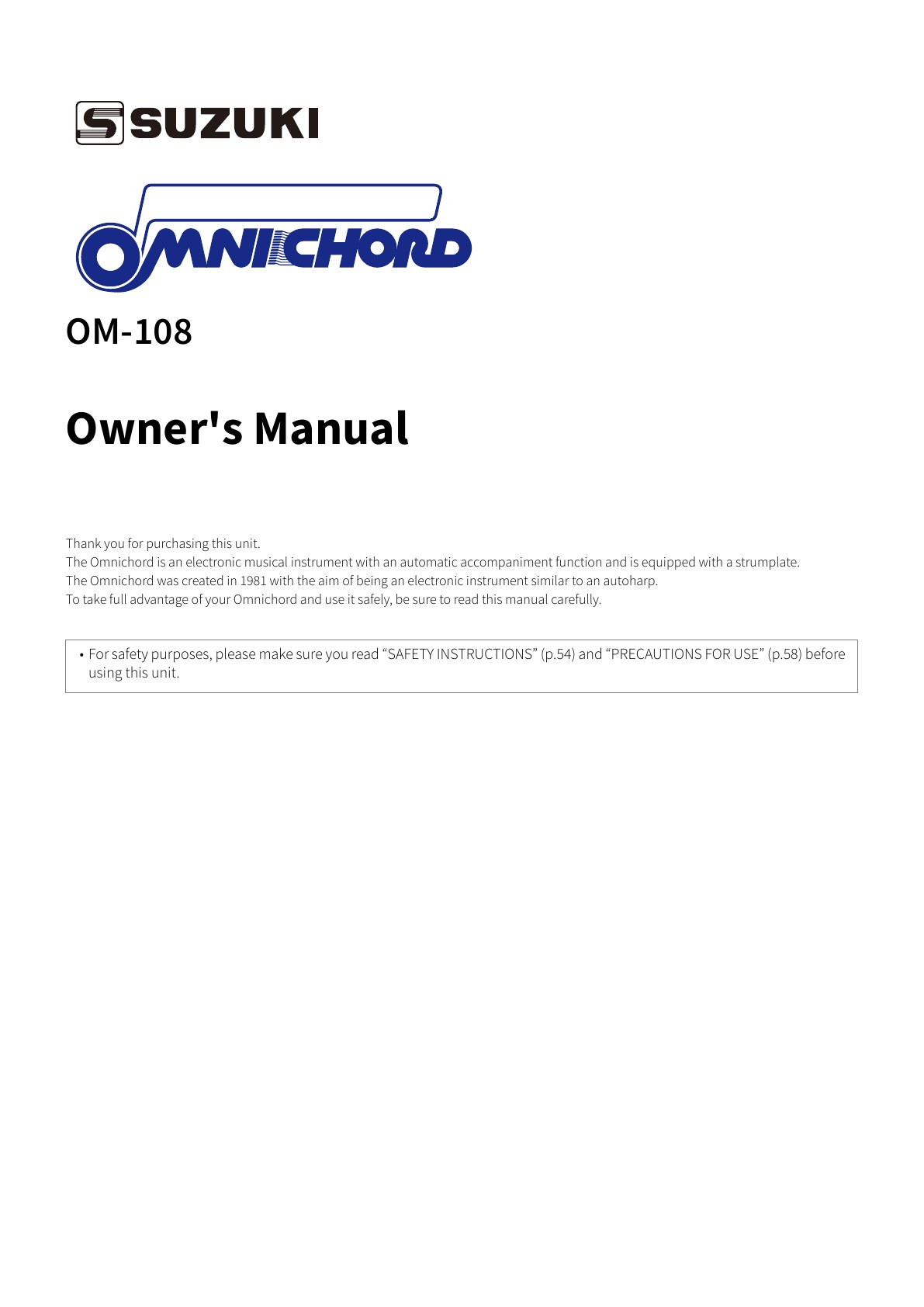

OM-108 Owner's Manual Thank you for purchasing this unit. The Omnichord is an electronic musical instrument with an automatic accompaniment function and is equipped with a strumplate. The Omnichord was created in 1981 with the aim of being an electronic instrument similar to an autoharp. To take full advantage of your Omnichord and use it safely, be sure to read this manual carefully. • For safety purposes, please make sure you read “SAFETY INSTRUCTIONS” (p.54) and “PRECAUTIONS FOR USE” (p.58) before using this unit.

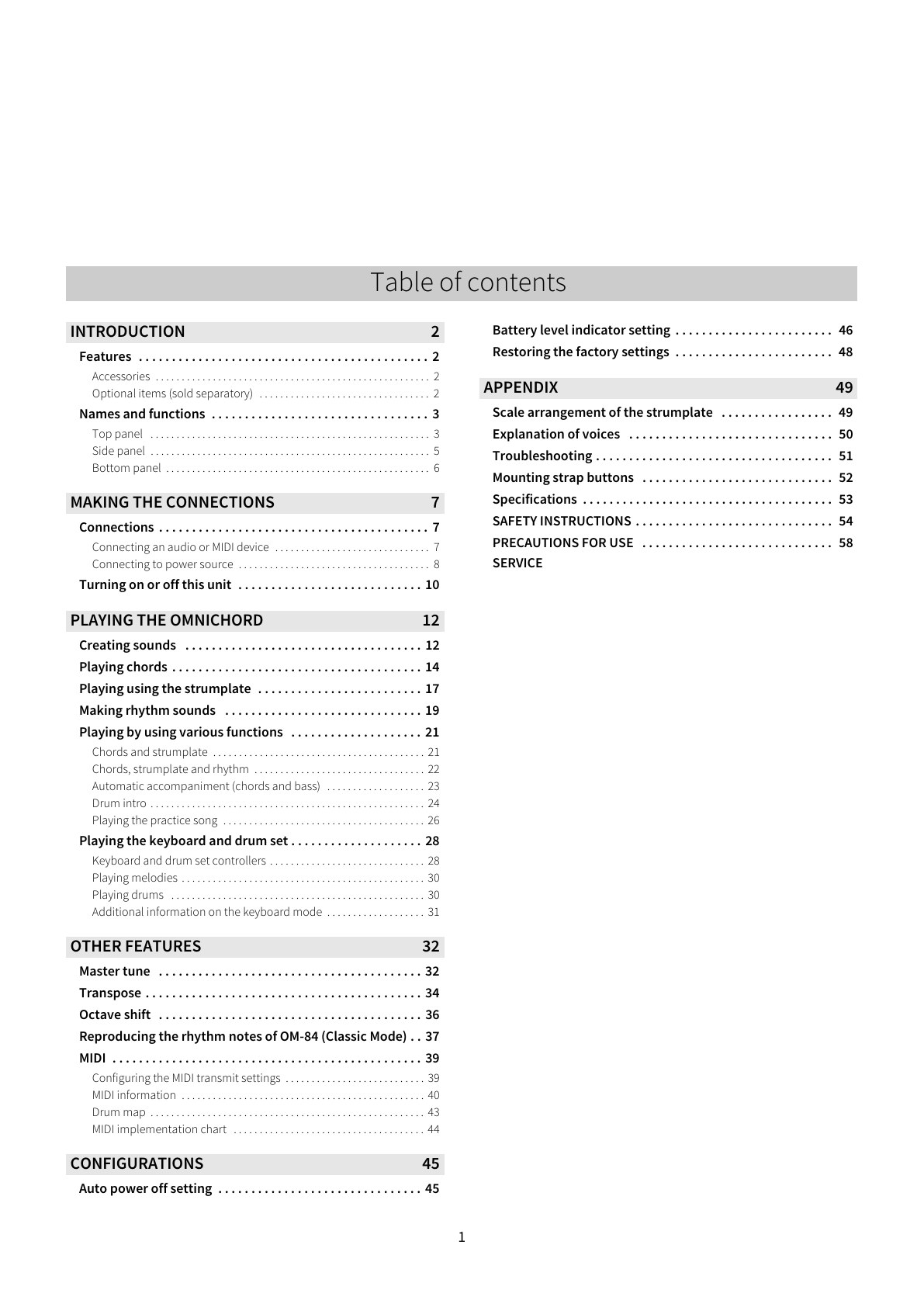

1 Table of contents INTRODUCTION 2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Optional items (sold separatory) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Names and functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Top panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Side panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Bottom panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 MAKING THE CONNECTIONS 7 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Connecting an audio or MIDI device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Connecting to power source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Turning on or off this unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 PLAYING THE OMNICHORD 12 Creating sounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Playing chords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Playing using the strumplate . . . . . . . . . . . . . . . . . . . . . . . . . 17 Making rhythm sounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Playing by using various functions . . . . . . . . . . . . . . . . . . . . 21 Chords and strumplate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Chords, strumplate and rhythm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Automatic accompaniment (chords and bass) . . . . . . . . . . . . . . . . . . . 23 Drum intro . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Playing the practice song . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Playing the keyboard and drum set . . . . . . . . . . . . . . . . . . . . 28 Keyboard and drum set controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Playing melodies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Playing drums . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Additional information on the keyboard mode . . . . . . . . . . . . . . . . . . . 31 OTHER FEATURES 32 Master tune . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Transpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Octave shift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Reproducing the rhythm notes of OM-84 (Classic Mode) . . 37 MIDI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 Configuring the MIDI transmit settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 MIDI information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 Drum map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 MIDI implementation chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 CONFIGURATIONS 45 Auto power off setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Battery level indicator setting . . . . . . . . . . . . . . . . . . . . . . . . 46 Restoring the factory settings . . . . . . . . . . . . . . . . . . . . . . . . 48 APPENDIX 49 Scale arrangement of the strumplate . . . . . . . . . . . . . . . . . 49 Explanation of voices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Mounting strap buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 PRECAUTIONS FOR USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 SERVICE

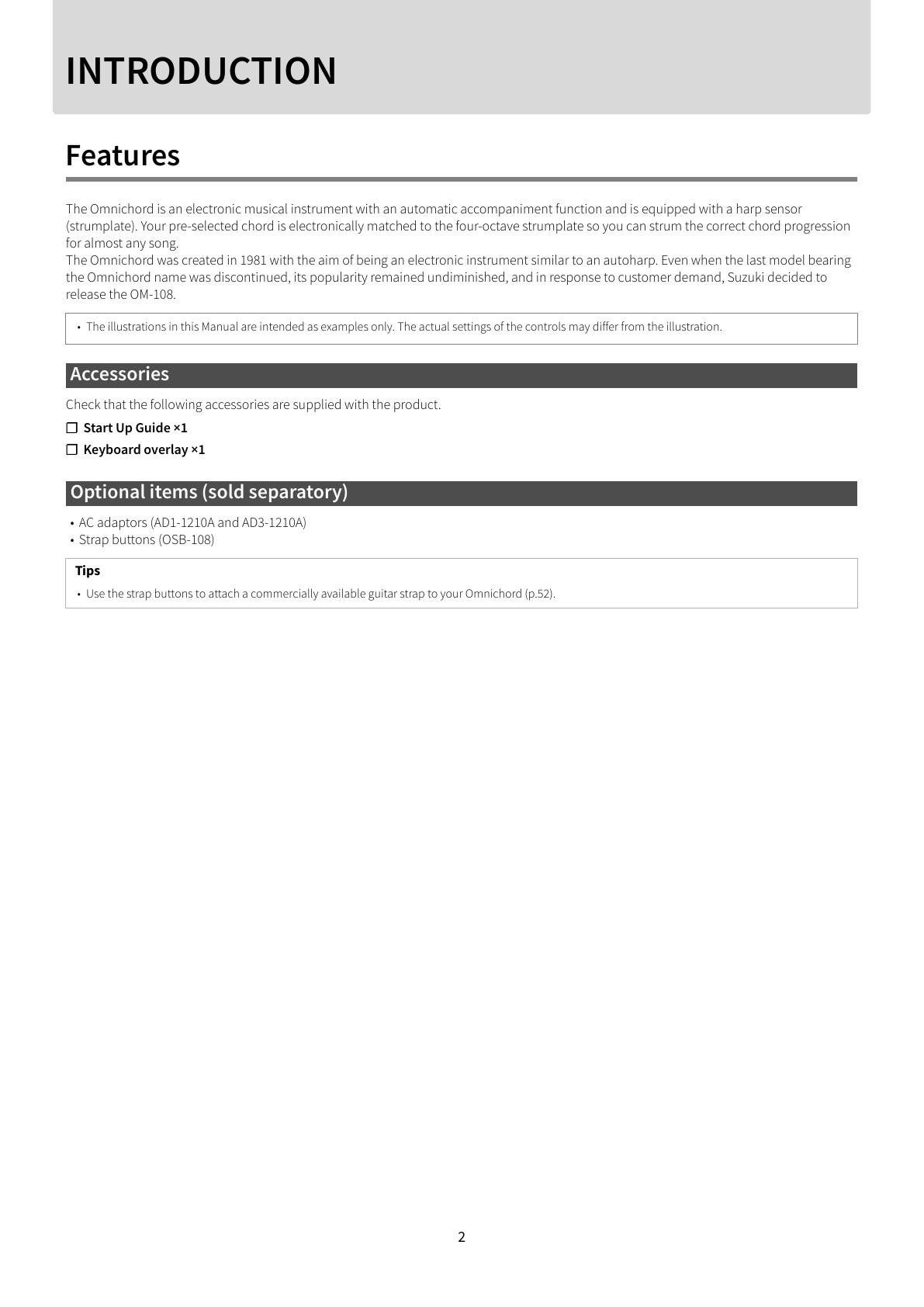

2 INTRODUCTION Features The Omnichord is an electronic musical instrument with an automatic accompaniment function and is equipped with a harp sensor (strumplate). Your pre-selected chord is electronically matched to the four-octave strumplate so you can strum the correct chord progression for almost any song. The Omnichord was created in 1981 with the aim of being an electronic instrument similar to an autoharp. Even when the last model bearing the Omnichord name was discontinued, its popularity remained undiminished, and in response to customer demand, Suzuki decided to release the OM-108. Accessories Check that the following accessories are supplied with the product. ❒ Start Up Guide ×1 ❒ Keyboard overlay ×1 Optional items (sold separatory) • AC adaptors (AD1-1210A and AD3-1210A) • Strap buttons (OSB-108) • The illustrations in this Manual are intended as examples only. The actual settings of the controls may differ from the illustration. Tips • Use the strap buttons to attach a commercially available guitar strap to your Omnichord (p.52).

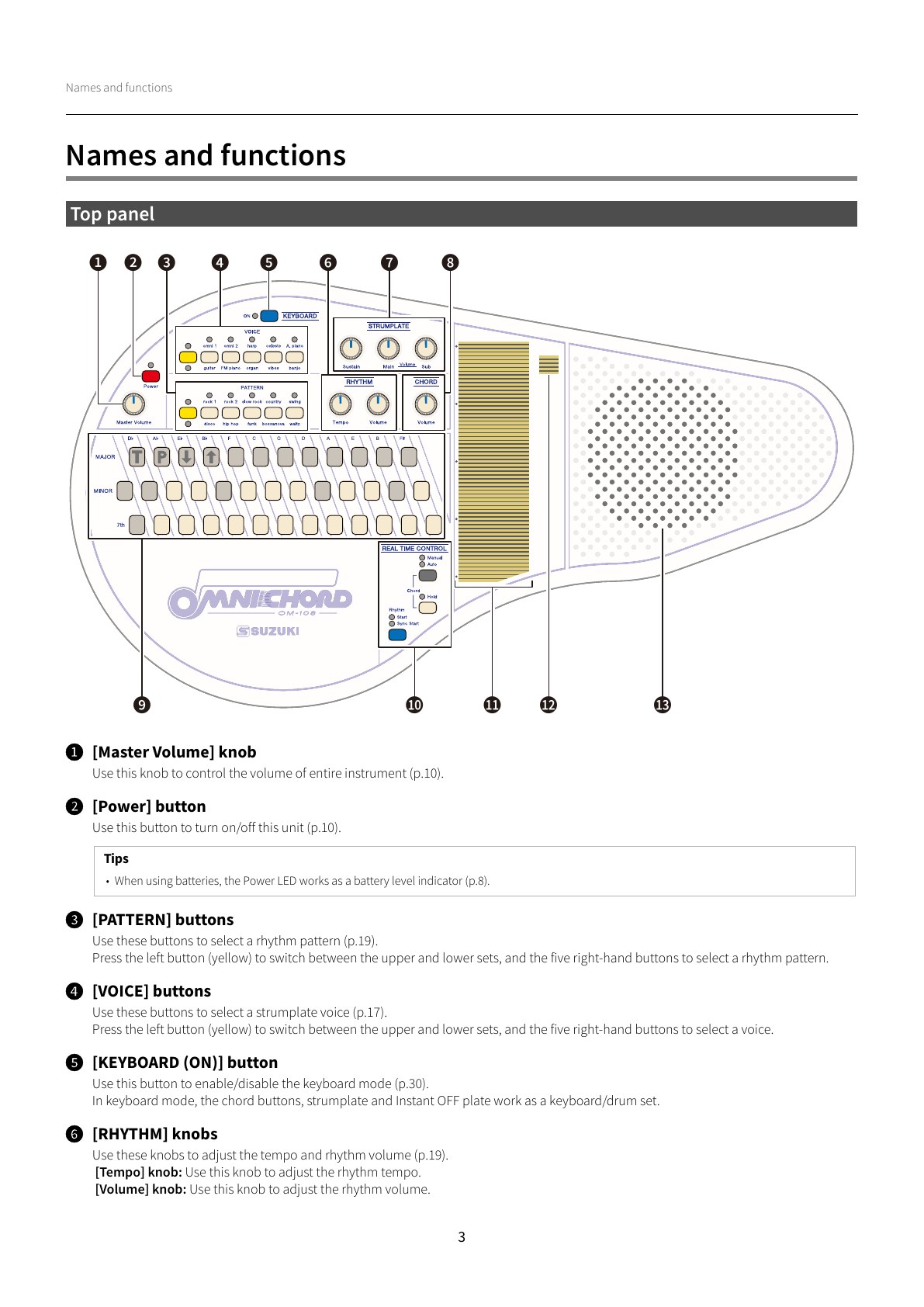

Names and functions 3 Names and functions Top panel a [Master Volume] knob Use this knob to control the volume of entire instrument (p.10). b [Power] button Use this button to turn on/off this unit (p.10). c [PATTERN] buttons Use these buttons to select a rhythm pattern (p.19). Press the left button (yellow) to switch between the upper and lower sets, and the five right-hand buttons to select a rhythm pattern. d [VOICE] buttons Use these buttons to select a strumplate voice (p.17). Press the left button (yellow) to switch between the upper and lower sets, and the five right-hand buttons to select a voice. e [KEYBOARD (ON)] button Use this button to enable/disable the keyboard mode (p.30). In keyboard mode, the chord buttons, strumplate and Instant OFF plate work as a keyboard/drum set. f [RHYTHM] knobs Use these knobs to adjust the tempo and rhythm volume (p.19). [Tempo] knob: Use this knob to adjust the rhythm tempo. [Volume] knob: Use this knob to adjust the rhythm volume. Tips • When using batteries, the Power LED works as a battery level indicator (p.8). ab ec hfd g ji k l m

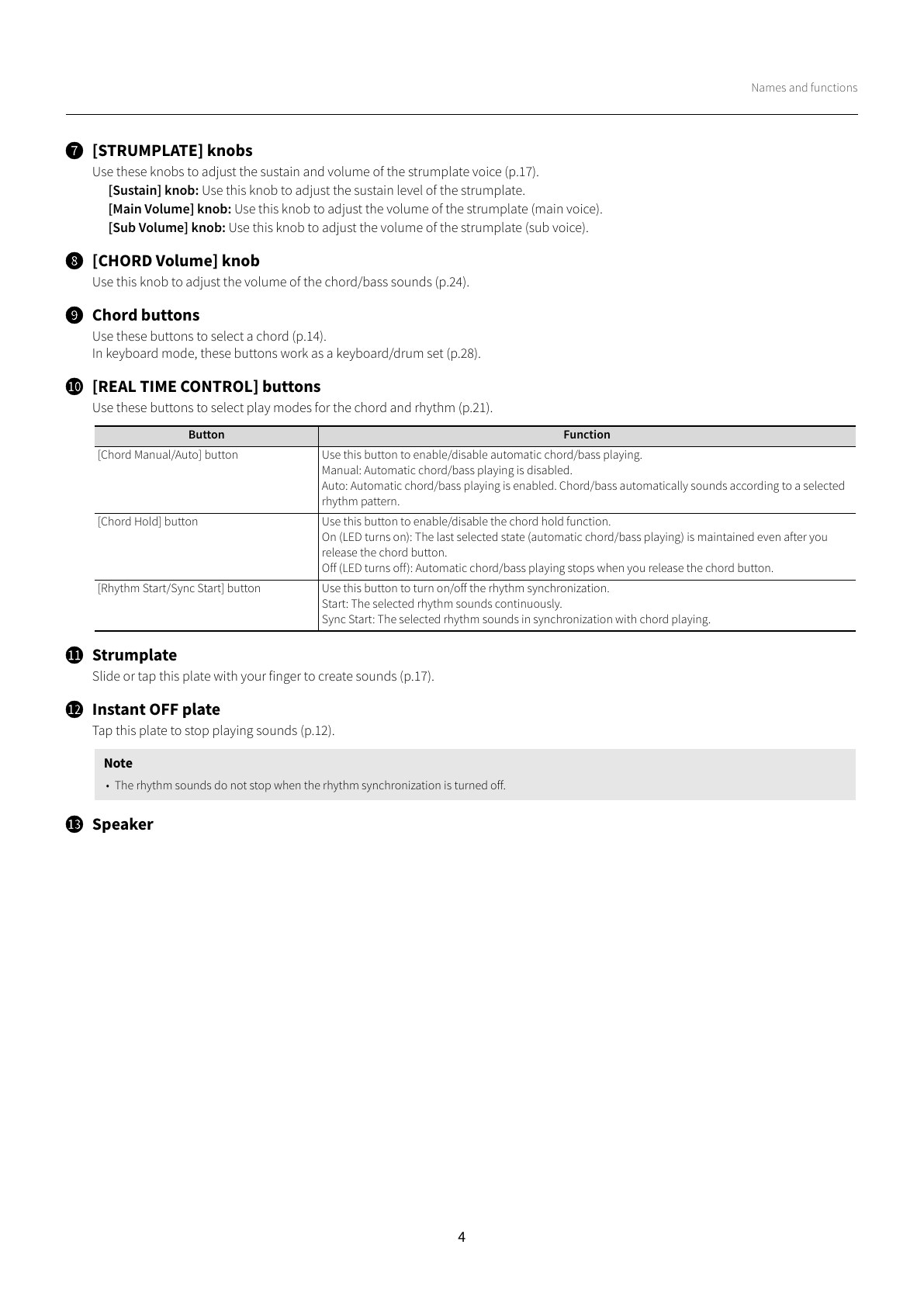

Names and functions 4 g [STRUMPLATE] knobs Use these knobs to adjust the sustain and volume of the strumplate voice (p.17). [Sustain] knob: Use this knob to adjust the sustain level of the strumplate. [Main Volume] knob: Use this knob to adjust the volume of the strumplate (main voice). [Sub Volume] knob: Use this knob to adjust the volume of the strumplate (sub voice). h [CHORD Volume] knob Use this knob to adjust the volume of the chord/bass sounds (p.24). i Chord buttons Use these buttons to select a chord (p.14). In keyboard mode, these buttons work as a keyboard/drum set (p.28). j [REAL TIME CONTROL] buttons Use these buttons to select play modes for the chord and rhythm (p.21). k Strumplate Slide or tap this plate with your finger to create sounds (p.17). l Instant OFF plate Tap this plate to stop playing sounds (p.12). m Speaker Button Function [Chord Manual/Auto] button Use this button to enable/disable automatic chord/bass playing. Manual: Automatic chord/bass playing is disabled. Auto: Automatic chord/bass playing is enabled. Chord/bass automatically sounds according to a selected rhythm pattern. [Chord Hold] button Use this button to enable/disable the chord hold function. On (LED turns on): The last selected state (automatic chord/bass playing) is maintained even after you release the chord button. Off (LED turns off): Automatic chord/bass playing stops when you release the chord button. [Rhythm Start/Sync Start] button Use this button to turn on/off the rhythm synchronization. Start: The selected rhythm sounds continuously. Sync Start: The selected rhythm sounds in synchronization with chord playing. Note • The rhythm sounds do not stop when the rhythm synchronization is turned off.

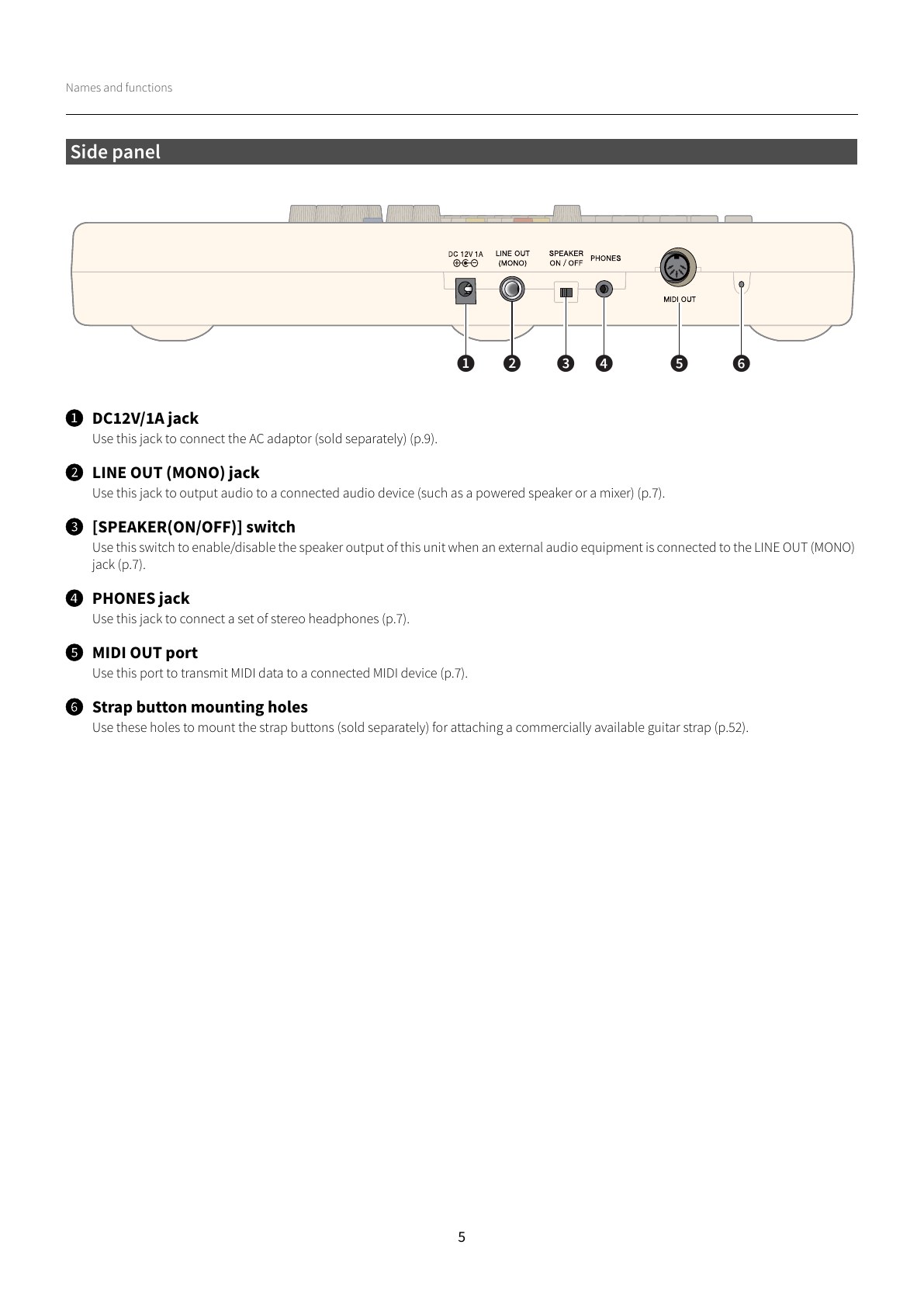

Names and functions 5 Side panel a DC12V/1A jack Use this jack to connect the AC adaptor (sold separately) (p.9). b LINE OUT (MONO) jack Use this jack to output audio to a connected audio device (such as a powered speaker or a mixer) (p.7). c [SPEAKER(ON/OFF)] switch Use this switch to enable/disable the speaker output of this unit when an external audio equipment is connected to the LINE OUT (MONO) jack (p.7). d PHONES jack Use this jack to connect a set of stereo headphones (p.7). e MIDI OUT port Use this port to transmit MIDI data to a connected MIDI device (p.7). f Strap button mounting holes Use these holes to mount the strap buttons (sold separately) for attaching a commercially available guitar strap (p.52). a b c d e f

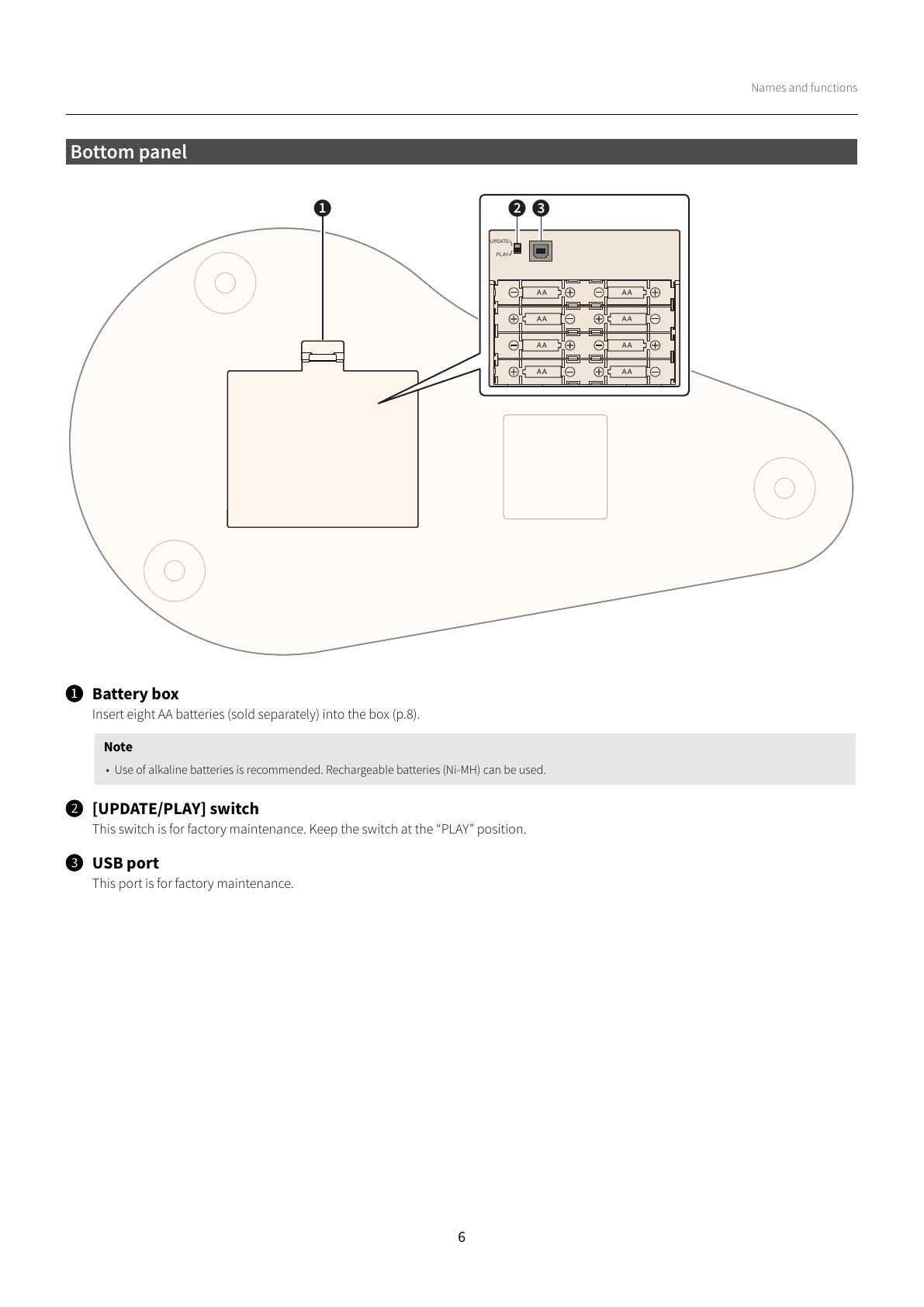

Names and functions 6 Bottom panel a Battery box Insert eight AA batteries (sold separately) into the box (p.8). b [UPDATE/PLAY] switch This switch is for factory maintenance. Keep the switch at the “PLAY” position. c USB port This port is for factory maintenance. Note • Use of alkaline batteries is recommended. Rechargeable batteries (Ni-MH) can be used. AA AA AA AA PLAY AA AA AA AA UPDATE cba

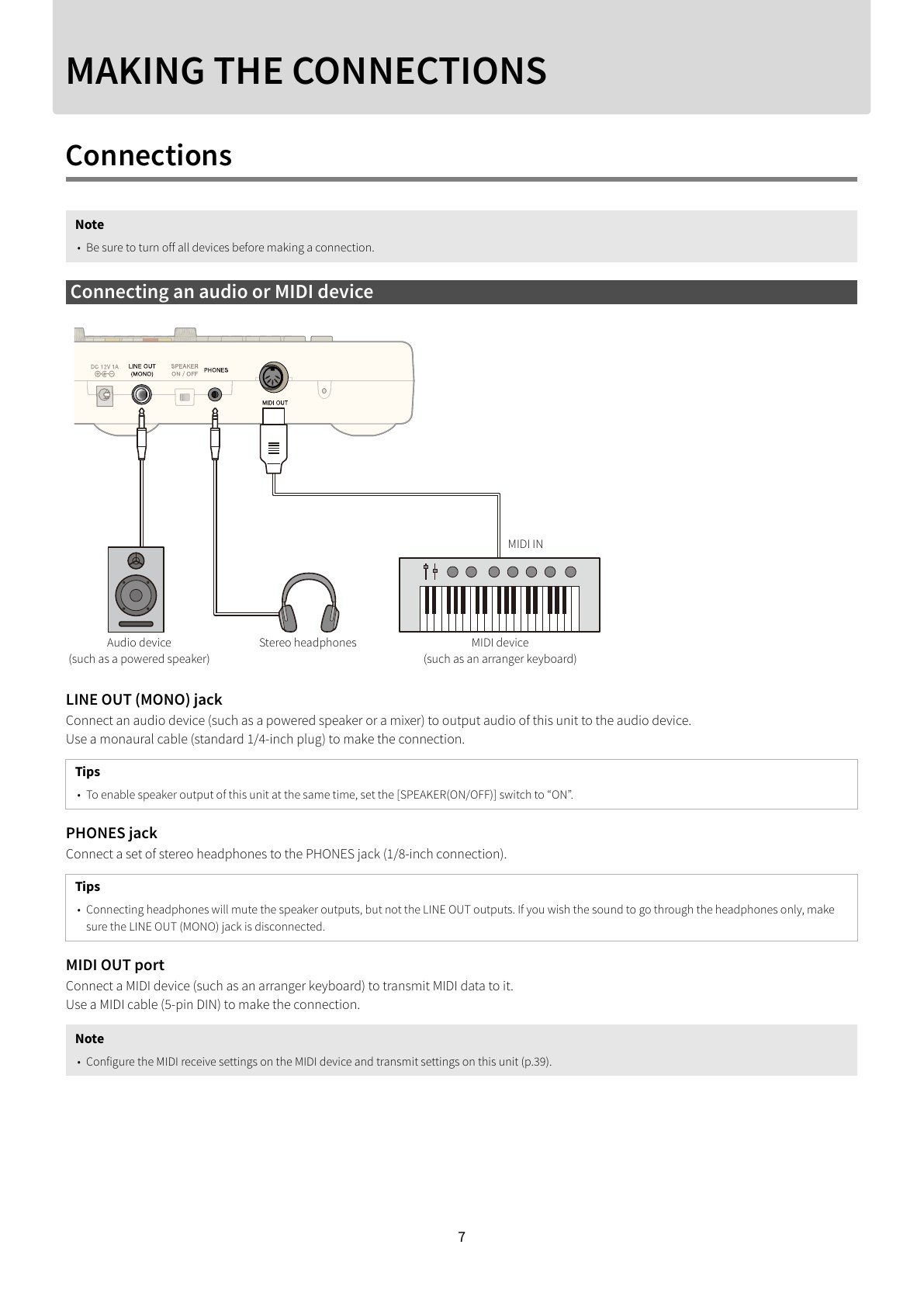

7 MAKING THE CONNECTIONS Connections Connecting an audio or MIDI device LINE OUT (MONO) jack Connect an audio device (such as a powered speaker or a mixer) to output audio of this unit to the audio device. Use a monaural cable (standard 1/4-inch plug) to make the connection. PHONES jack Connect a set of stereo headphones to the PHONES jack (1/8-inch connection). MIDI OUT port Connect a MIDI device (such as an arranger keyboard) to transmit MIDI data to it. Use a MIDI cable (5-pin DIN) to make the connection. Note • Be sure to turn off all devices before making a connection. Tips • To enable speaker output of this unit at the same time, set the [SPEAKER(ON/OFF)] switch to “ON” . Tips • Connecting headphones will mute the speaker outputs, but not the LINE OUT outputs. If you wish the sound to go through the headphones only, make sure the LINE OUT (MONO) jack is disconnected. Note • Configure the MIDI receive settings on the MIDI device and transmit settings on this unit (p.39). Audio device (such as a powered speaker) Stereo headphones MIDI device (such as an arranger keyboard) MIDI IN

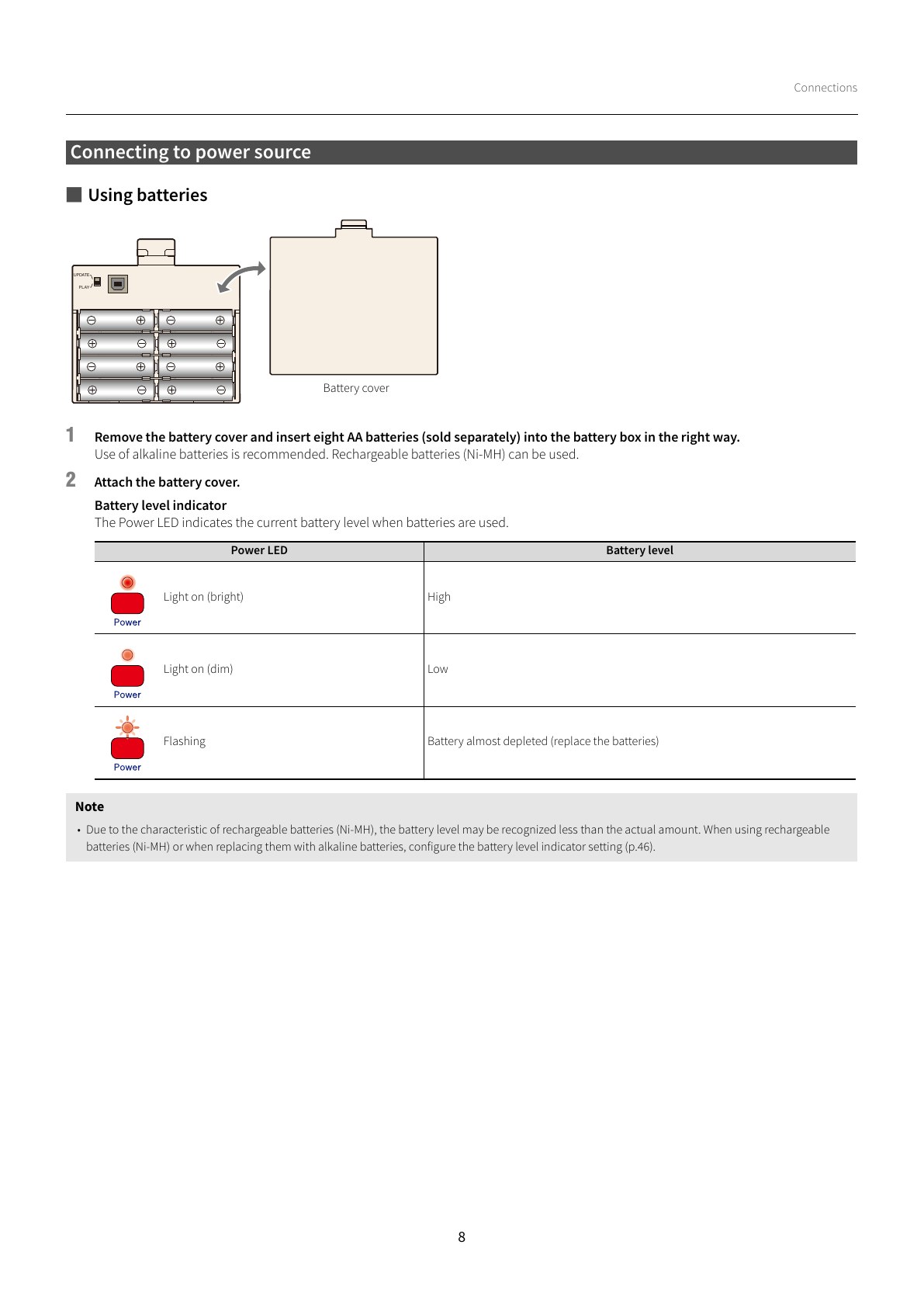

Connections 8 Connecting to power source ■Using batteries 1 Remove the battery cover and insert eight AA batteries (sold separately) into the battery box in the right way. Use of alkaline batteries is recommended. Rechargeable batteries (Ni-MH) can be used. 2 Attach the battery cover. Battery level indicator The Power LED indicates the current battery level when batteries are used. Power LED Battery level Light on (bright) High Light on (dim) Low Flashing Battery almost depleted (replace the batteries) Note • Due to the characteristic of rechargeable batteries (Ni-MH), the battery level may be recognized less than the actual amount. When using rechargeable batteries (Ni-MH) or when replacing them with alkaline batteries, configure the battery level indicator setting (p.46). AA AA AA AA AA AA AA AA PLAY UPDATE Battery cover

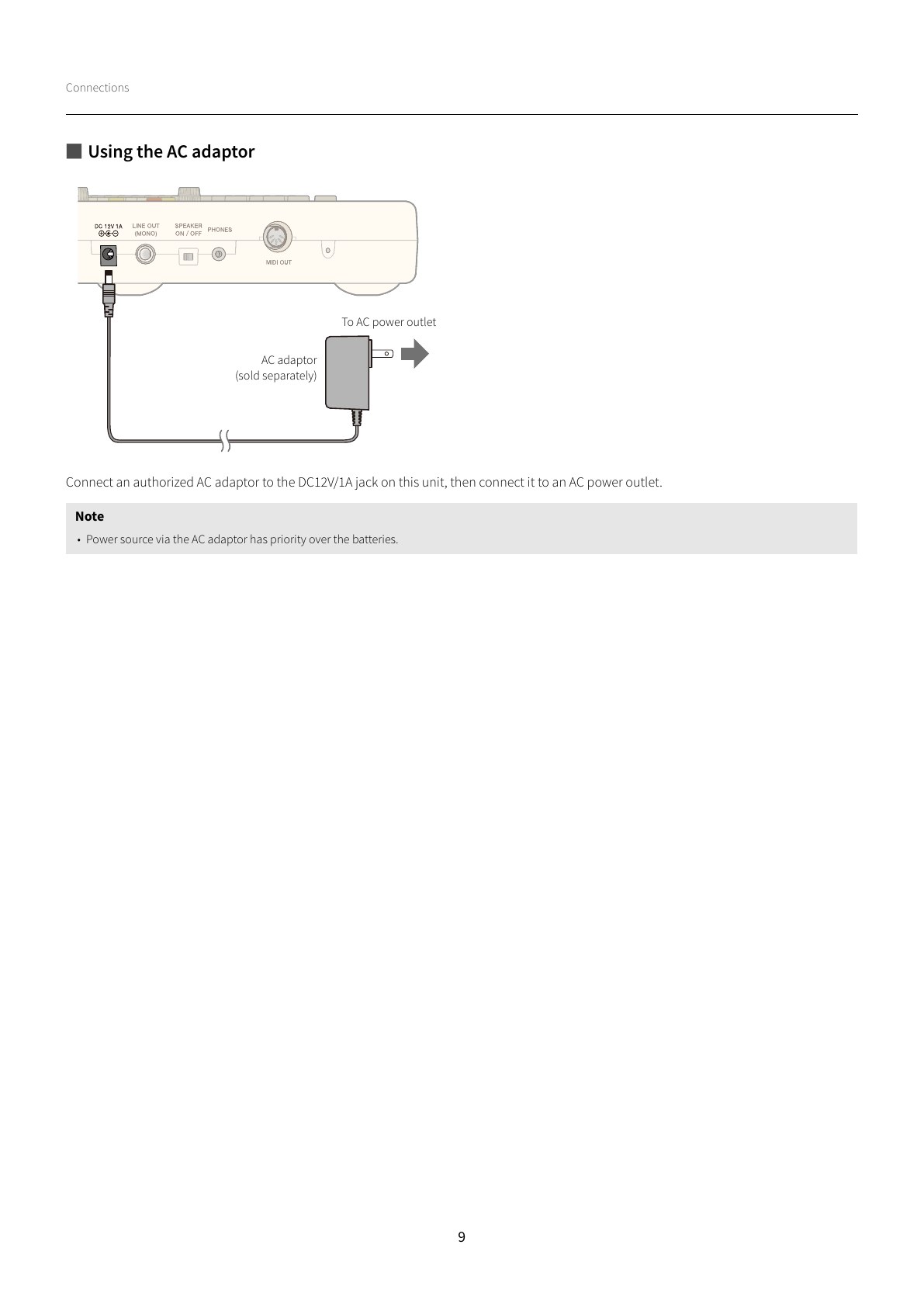

Connections 9 ■Using the AC adaptor Connect an authorized AC adaptor to the DC12V/1A jack on this unit, then connect it to an AC power outlet. Note • Power source via the AC adaptor has priority over the batteries. To AC power outlet AC adaptor (sold separately)

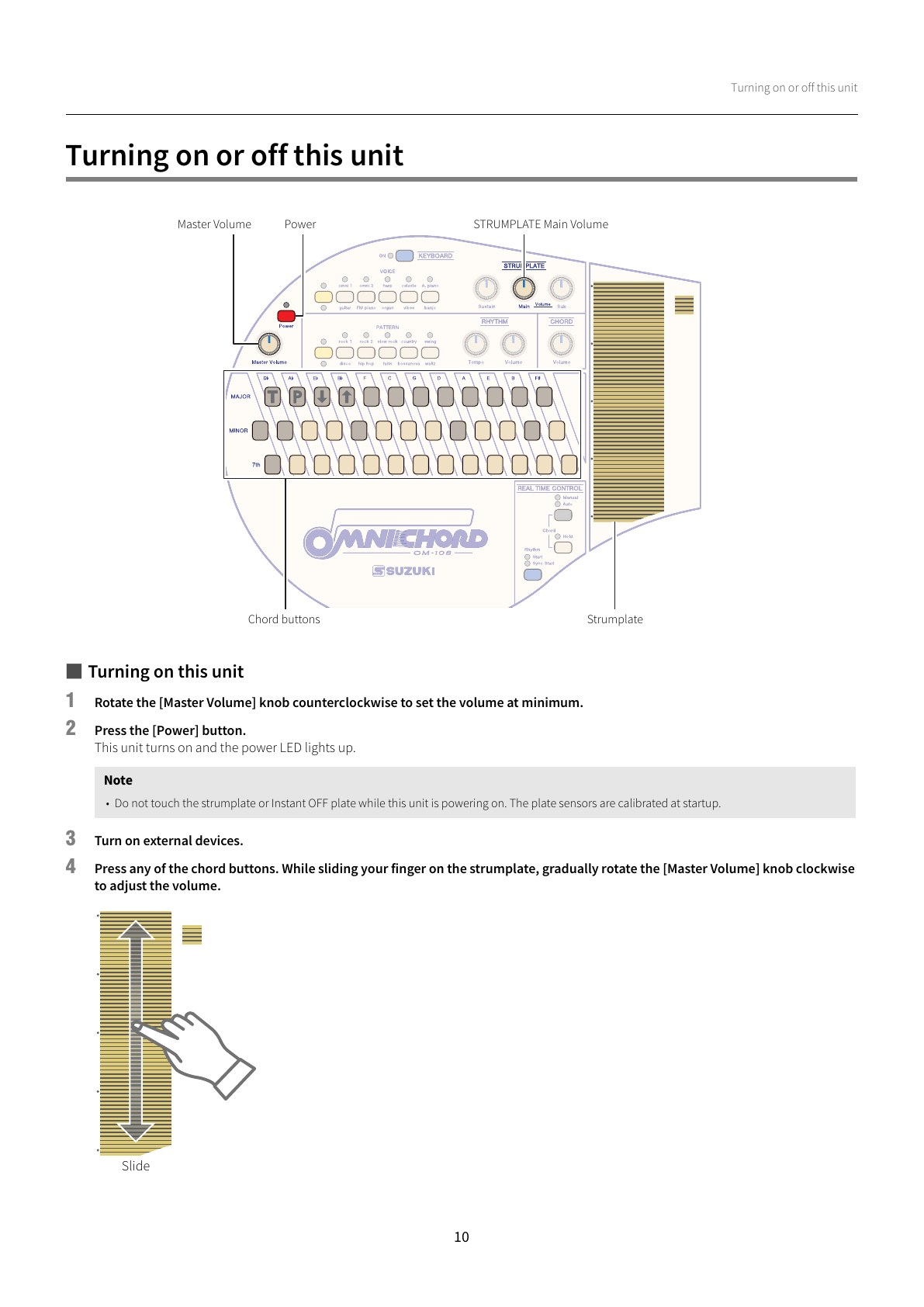

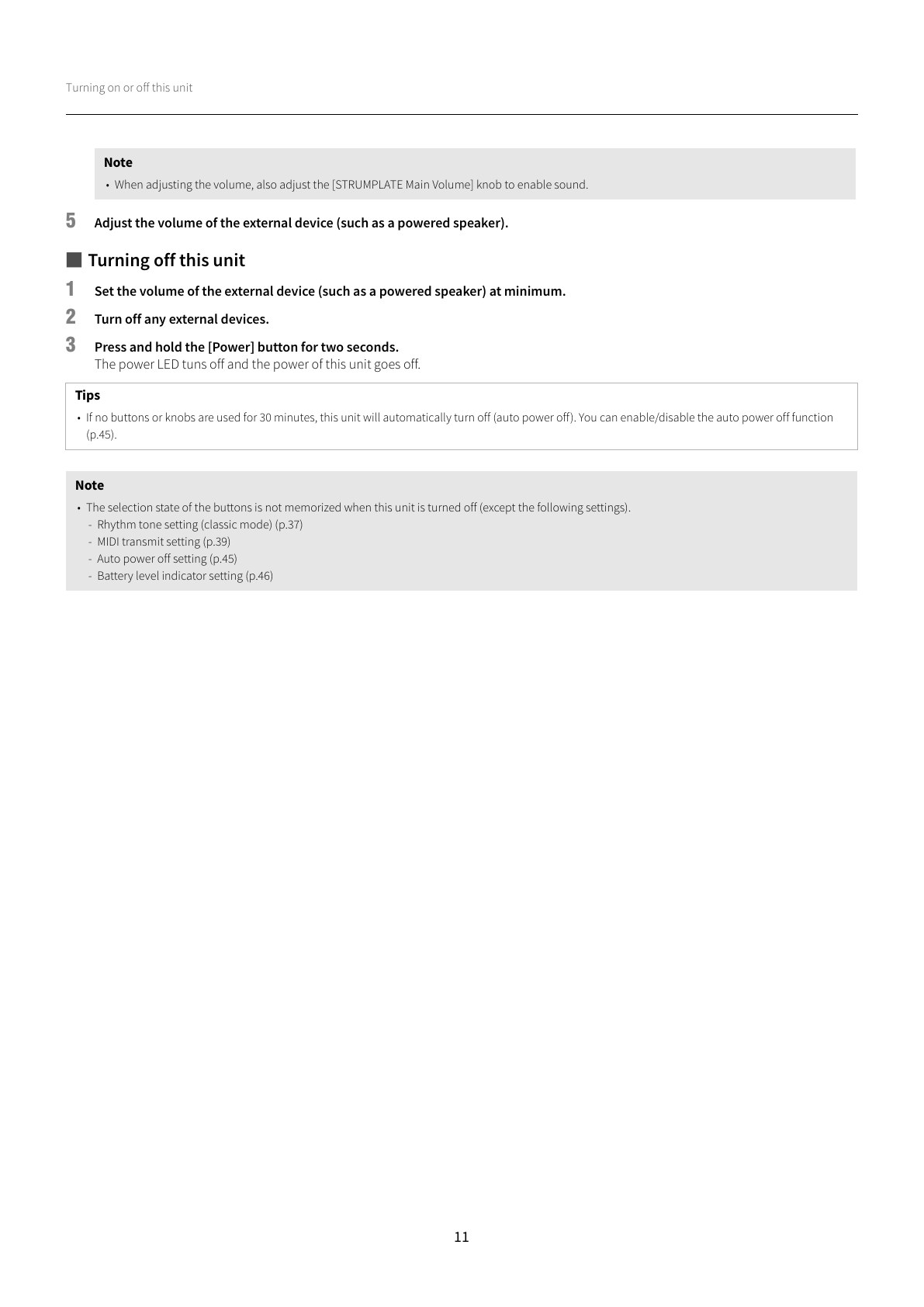

Turning on or off this unit 10 Turning on or off this unit ■Turning on this unit 1 Rotate the [Master Volume] knob counterclockwise to set the volume at minimum. 2 Press the [Power] button. This unit turns on and the power LED lights up. 3 Turn on external devices. 4 Press any of the chord buttons. While sliding your finger on the strumplate, gradually rotate the [Master Volume] knob clockwise to adjust the volume. Note • Do not touch the strumplate or Instant OFF plate while this unit is powering on. The plate sensors are calibrated at startup. Master Volume Power STRUMPLATE Main Volume Chord buttons Strumplate Slide

Turning on or off this unit 11 5 Adjust the volume of the external device (such as a powered speaker). ■Turning off this unit 1 Set the volume of the external device (such as a powered speaker) at minimum. 2 Turn off any external devices. 3 Press and hold the [Power] button for two seconds. The power LED tuns off and the power of this unit goes off. Note • When adjusting the volume, also adjust the [STRUMPLATE Main Volume] knob to enable sound. Tips • If no buttons or knobs are used for 30 minutes, this unit will automatically turn off (auto power off). You can enable/disable the auto power off function (p.45). Note • The selection state of the buttons is not memorized when this unit is turned off (except the following settings). - Rhythm tone setting (classic mode) (p.37) - MIDI transmit setting (p.39) - Auto power off setting (p.45) - Battery level indicator setting (p.46)

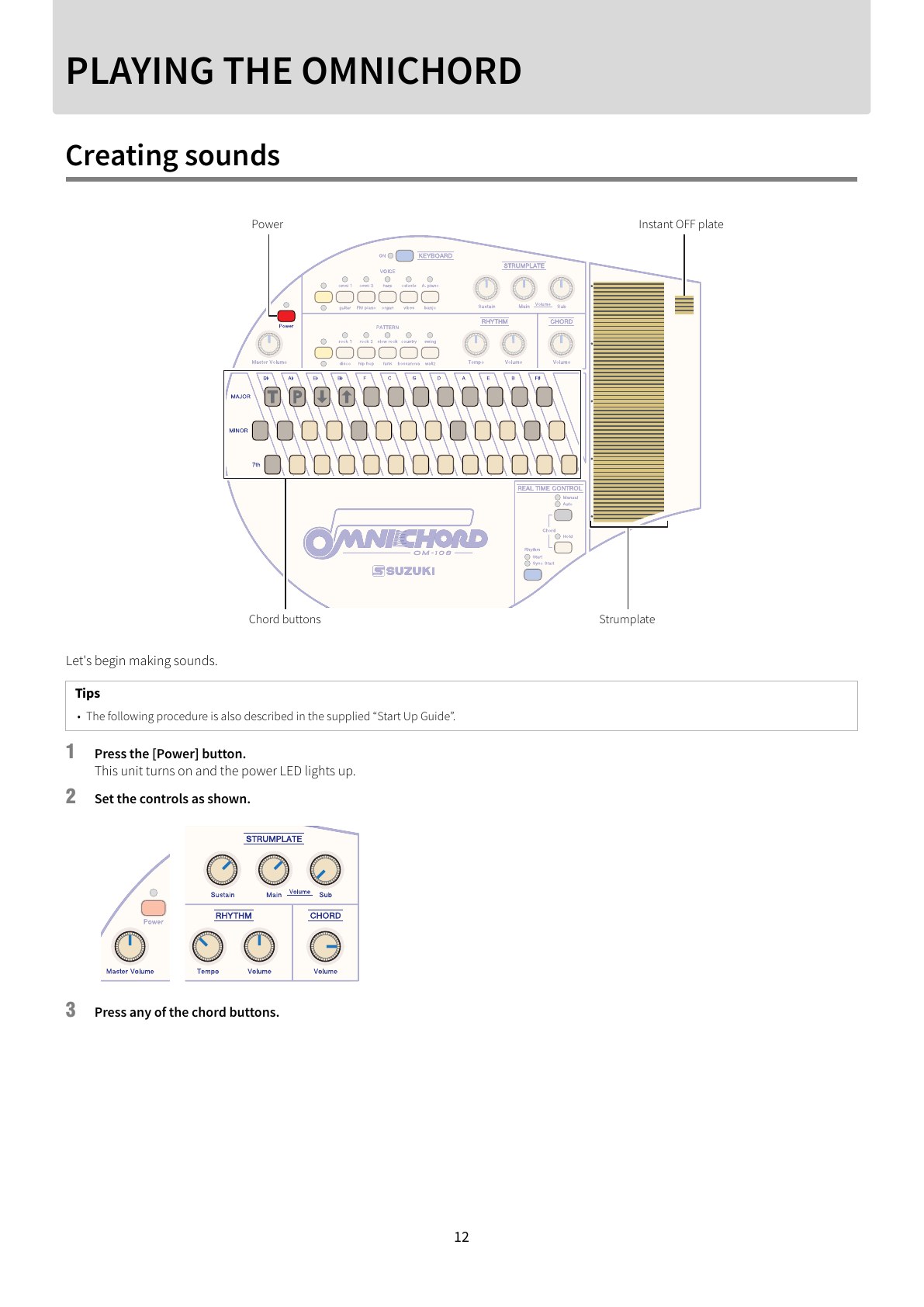

12 PLAYING THE OMNICHORD Creating sounds Let's begin making sounds. 1 Press the [Power] button. This unit turns on and the power LED lights up. 2 Set the controls as shown. 3 Press any of the chord buttons. Tips • The following procedure is also described in the supplied “Start Up Guide” . Power Instant OFF plate Chord buttons Strumplate

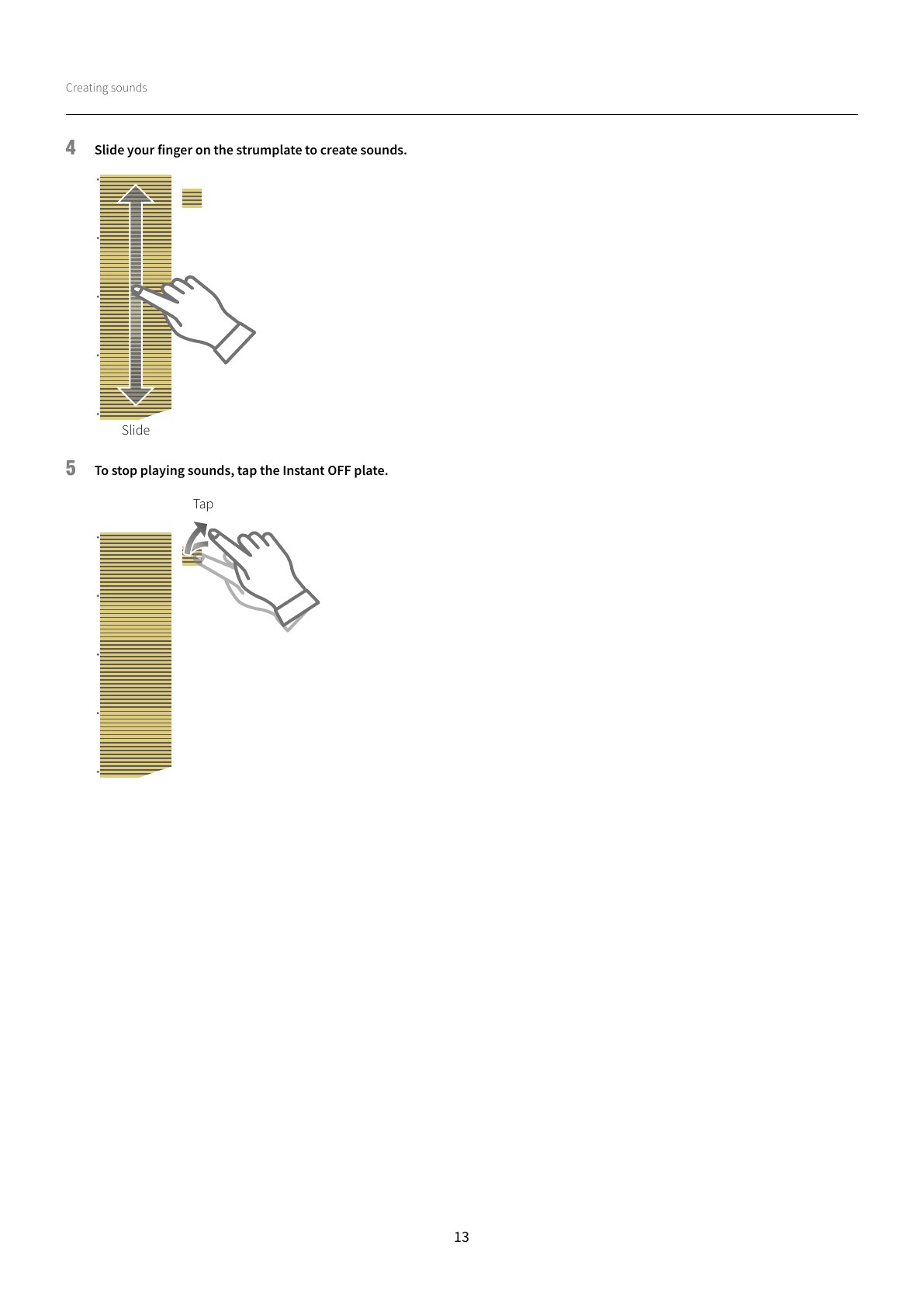

Creating sounds 13 4 Slide your finger on the strumplate to create sounds. 5 To stop playing sounds, tap the Instant OFF plate. Slide Tap

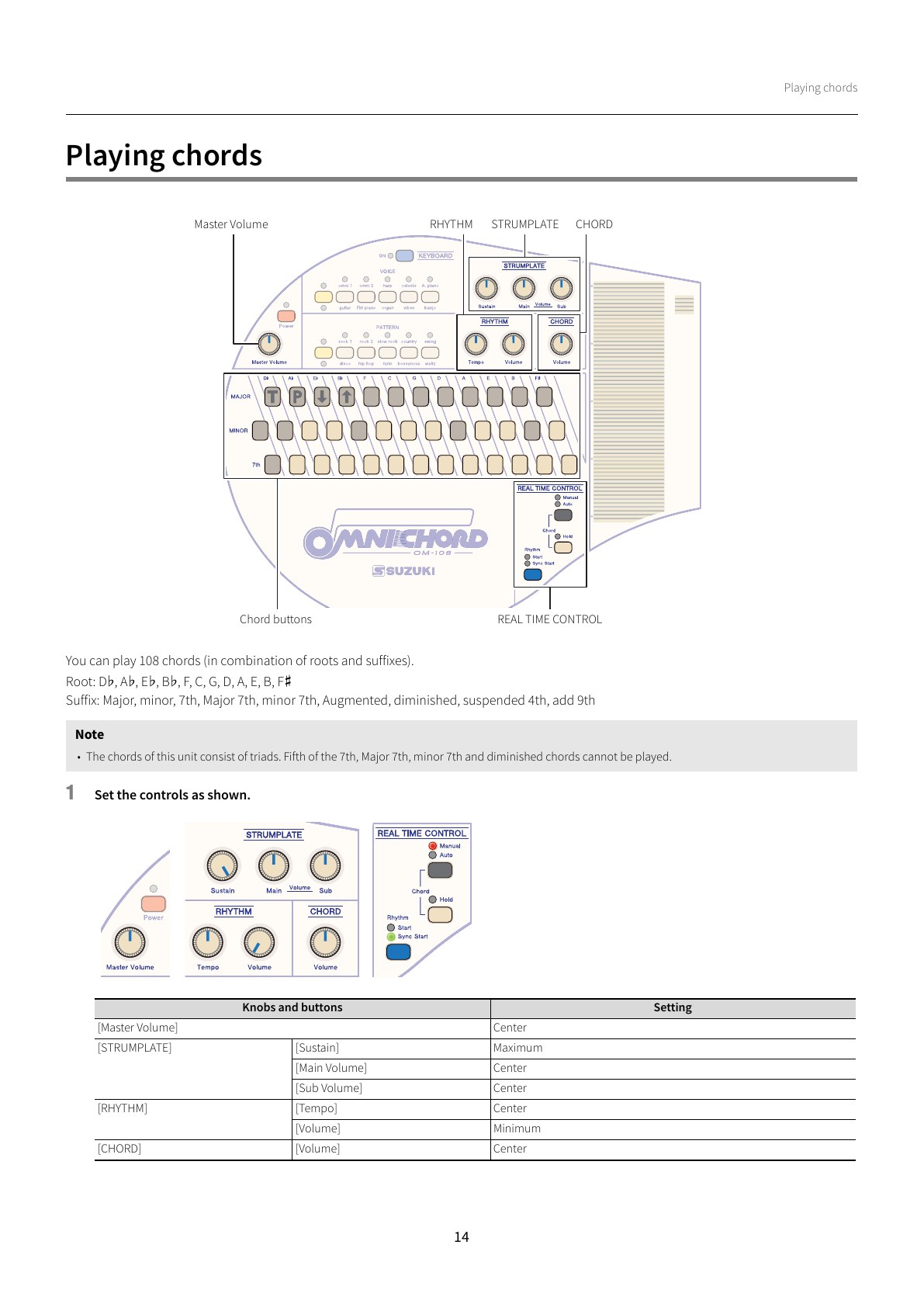

Playing chords 14 Playing chords You can play 108 chords (in combination of roots and suffixes). Root: Df, Af, Ef, Bf, F, C, G, D, A, E, B, Fs Suffix: Major, minor, 7th, Major 7th, minor 7th, Augmented, diminished, suspended 4th, add 9th 1 Set the controls as shown. Note • The chords of this unit consist of triads. Fifth of the 7th, Major 7th, minor 7th and diminished chords cannot be played. Knobs and buttons Setting [Master Volume] Center [STRUMPLATE] [Sustain] Maximum [Main Volume] Center [Sub Volume] Center [RHYTHM] [Tempo] Center [Volume] Minimum [CHORD] [Volume] Center Master Volume Chord buttons CHORDRHYTHM STRUMPLATE REAL TIME CONTROL

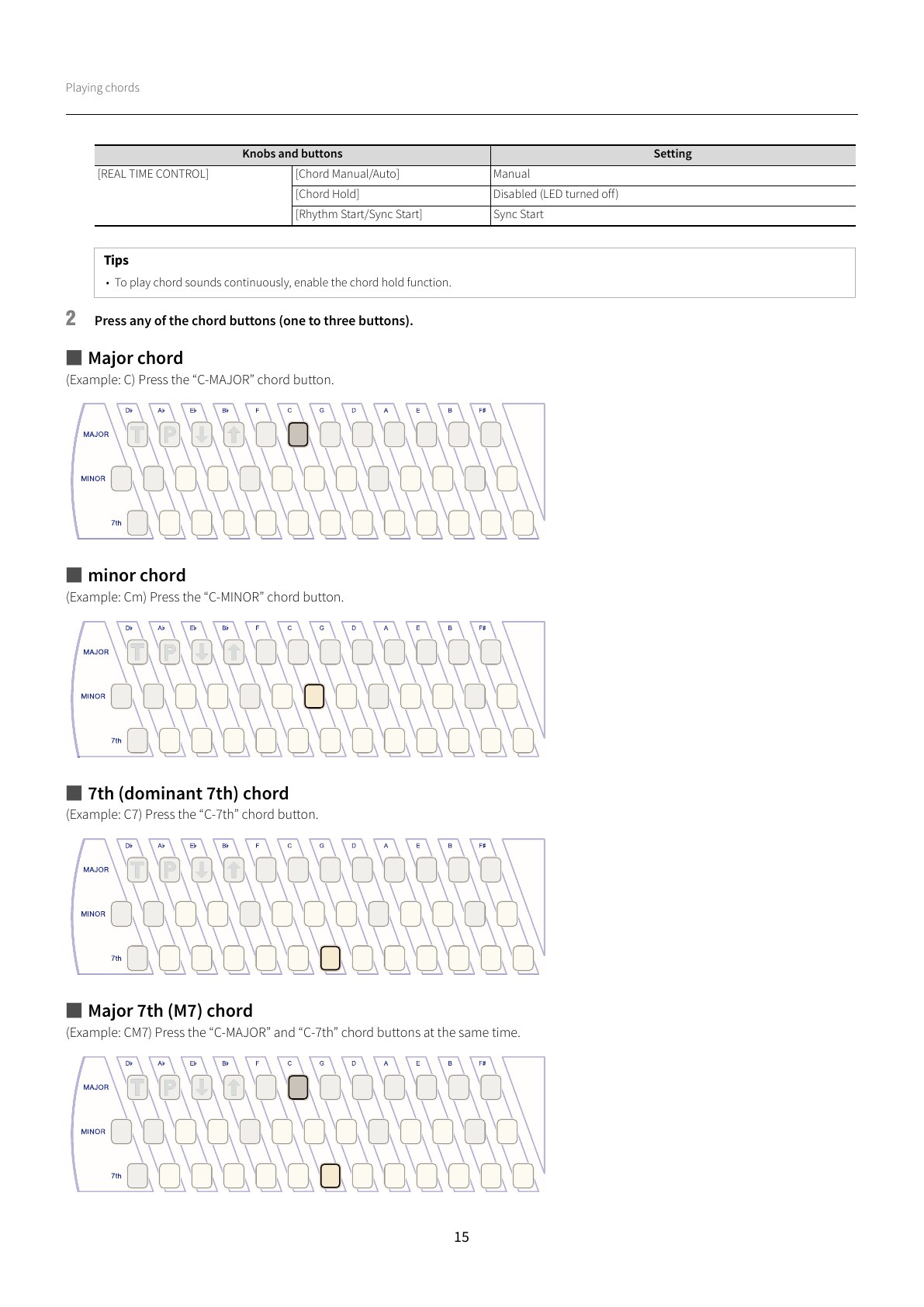

Playing chords 15 2 Press any of the chord buttons (one to three buttons). ■Major chord (Example: C) Press the “C-MAJOR” chord button. ■minor chord (Example: Cm) Press the “C-MINOR” chord button. ■7th (dominant 7th) chord (Example: C7) Press the “C-7th” chord button. ■Major 7th (M7) chord (Example: CM7) Press the “C-MAJOR” and “C-7th” chord buttons at the same time. [REAL TIME CONTROL] [Chord Manual/Auto] Manual [Chord Hold] Disabled (LED turned off) [Rhythm Start/Sync Start] Sync Start Tips • To play chord sounds continuously, enable the chord hold function. Knobs and buttons Setting

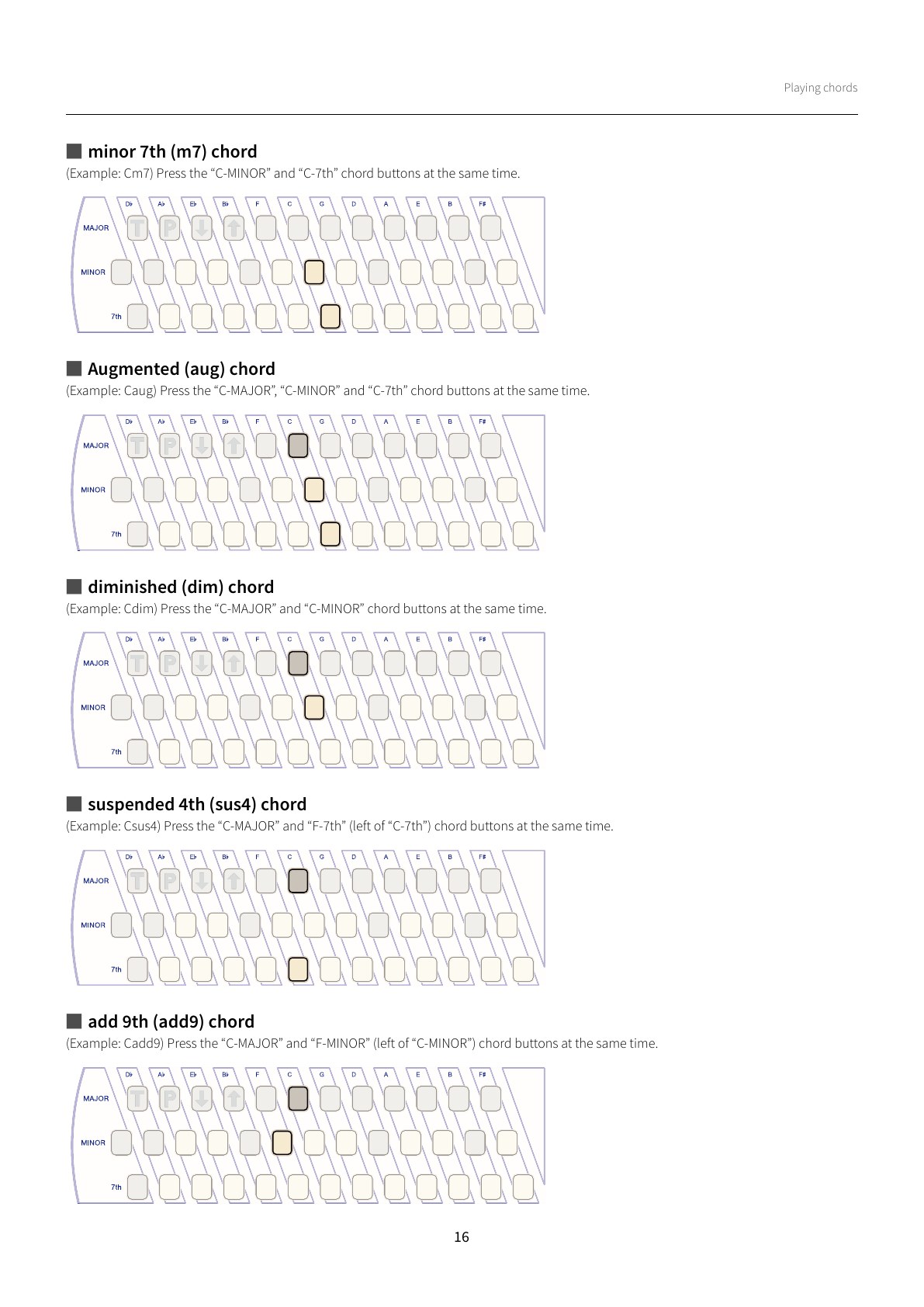

Playing chords 16 ■minor 7th (m7) chord (Example: Cm7) Press the “C-MINOR” and “C-7th” chord buttons at the same time. ■Augmented (aug) chord (Example: Caug) Press the “C-MAJOR” , “C-MINOR” and “C-7th” chord buttons at the same time. ■diminished (dim) chord (Example: Cdim) Press the “C-MAJOR” and “C-MINOR” chord buttons at the same time. ■suspended 4th (sus4) chord (Example: Csus4) Press the “C-MAJOR” and “F-7th” (left of “C-7th”) chord buttons at the same time. ■add 9th (add9) chord (Example: Cadd9) Press the “C-MAJOR” and “F-MINOR” (left of “C-MINOR”) chord buttons at the same time.

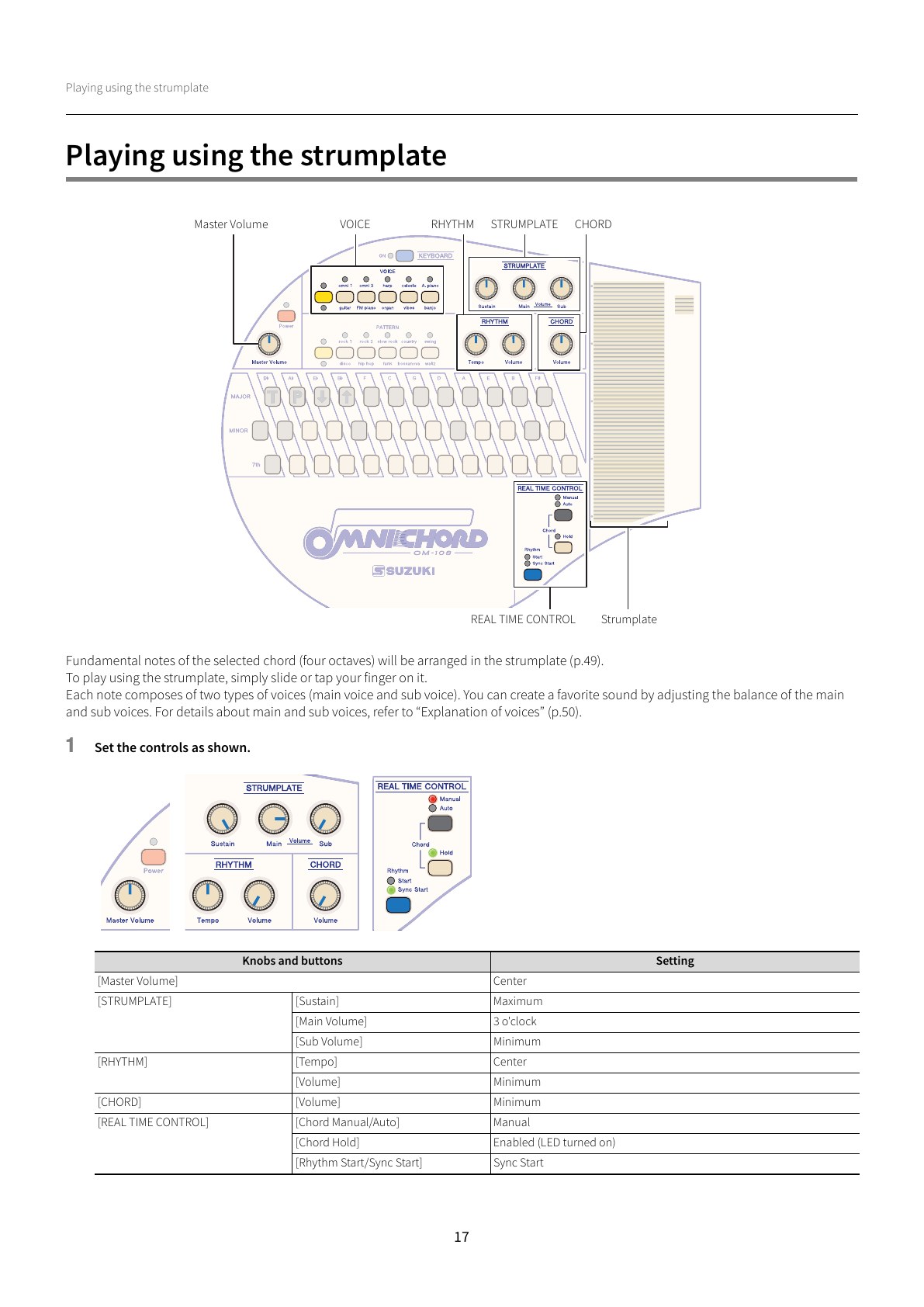

Playing using the strumplate 17 Playing using the strumplate Fundamental notes of the selected chord (four octaves) will be arranged in the strumplate (p.49). To play using the strumplate, simply slide or tap your finger on it. Each note composes of two types of voices (main voice and sub voice). You can create a favorite sound by adjusting the balance of the main and sub voices. For details about main and sub voices, refer to “Explanation of voices” (p.50). 1 Set the controls as shown. Knobs and buttons Setting [Master Volume] Center [STRUMPLATE] [Sustain] Maximum [Main Volume] 3 o'clock [Sub Volume] Minimum [RHYTHM] [Tempo] Center [Volume] Minimum [CHORD] [Volume] Minimum [REAL TIME CONTROL] [Chord Manual/Auto] Manual [Chord Hold] Enabled (LED turned on) [Rhythm Start/Sync Start] Sync Start Master Volume REAL TIME CONTROL Strumplate VOICE STRUMPLATERHYTHM CHORD

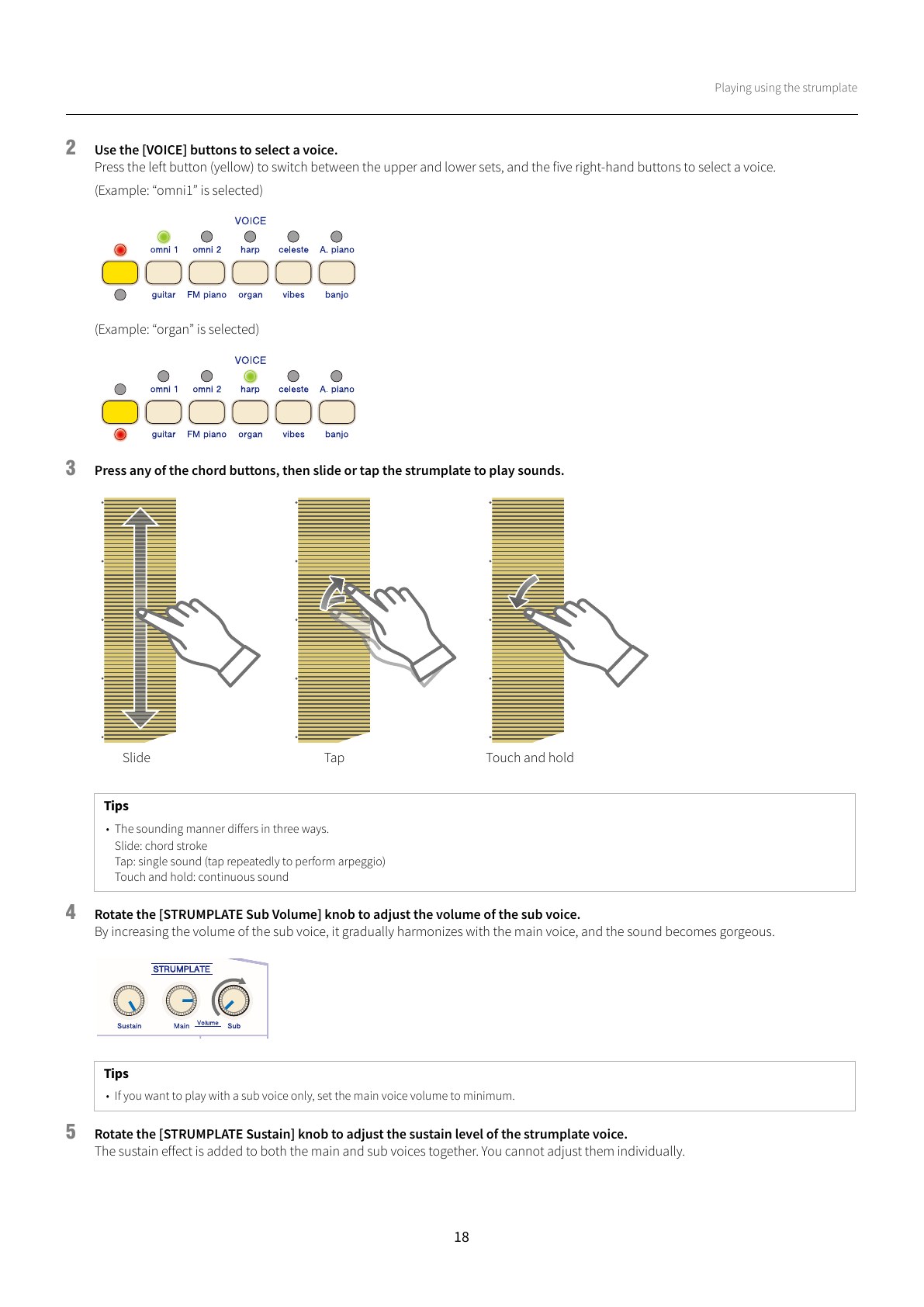

Playing using the strumplate 18 2 Use the [VOICE] buttons to select a voice. Press the left button (yellow) to switch between the upper and lower sets, and the five right-hand buttons to select a voice. (Example: “omni1” is selected) (Example: “organ” is selected) 3 Press any of the chord buttons, then slide or tap the strumplate to play sounds. 4 Rotate the [STRUMPLATE Sub Volume] knob to adjust the volume of the sub voice. By increasing the volume of the sub voice, it gradually harmonizes with the main voice, and the sound becomes gorgeous. 5 Rotate the [STRUMPLATE Sustain] knob to adjust the sustain level of the strumplate voice. The sustain effect is added to both the main and sub voices together. You cannot adjust them individually. Tips • The sounding manner differs in three ways. Slide: chord stroke Tap: single sound (tap repeatedly to perform arpeggio) Touch and hold: continuous sound Tips • If you want to play with a sub voice only, set the main voice volume to minimum. Slide Tap Touch and hold

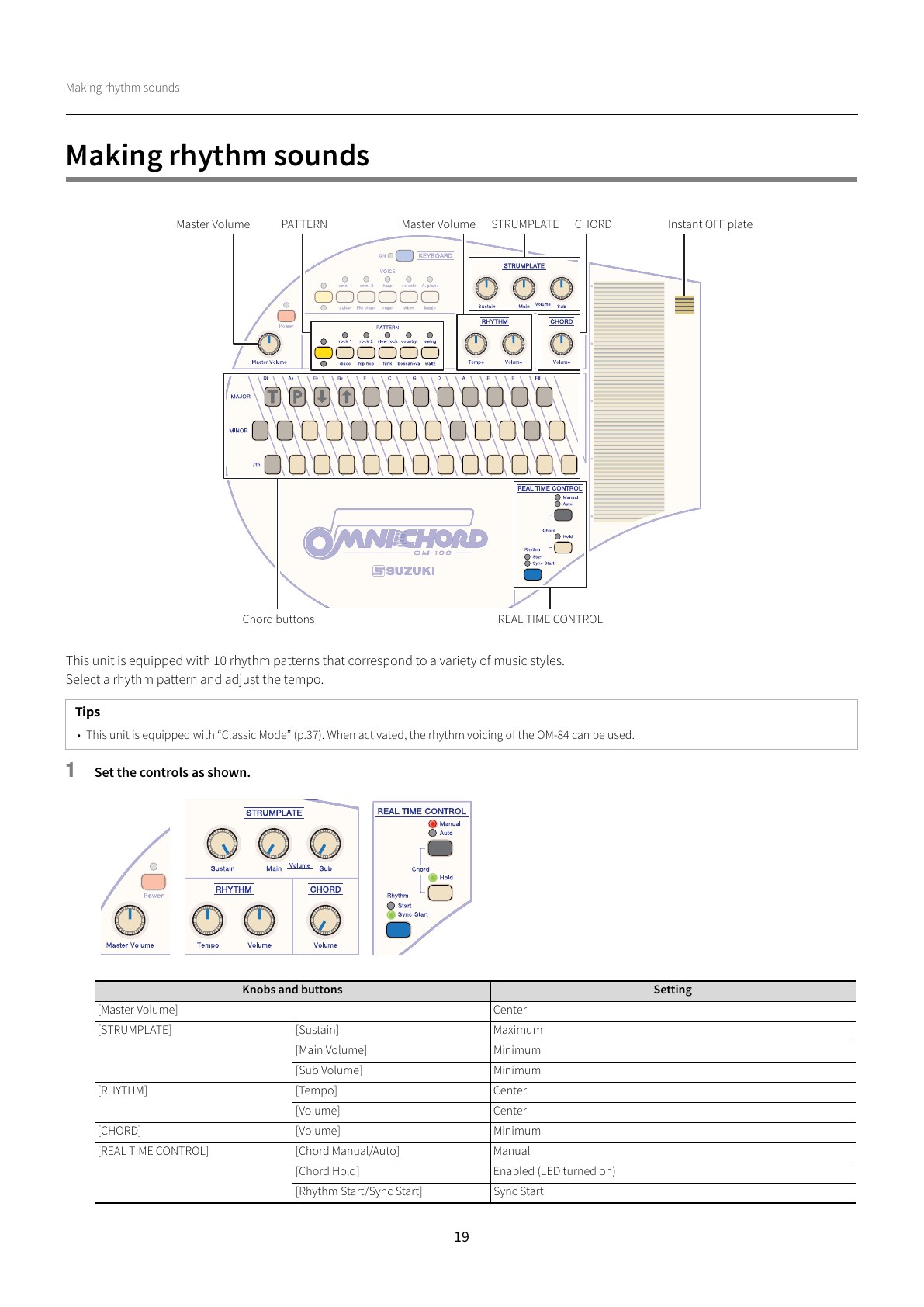

Making rhythm sounds 19 Making rhythm sounds This unit is equipped with 10 rhythm patterns that correspond to a variety of music styles. Select a rhythm pattern and adjust the tempo. 1 Set the controls as shown. Tips • This unit is equipped with “Classic Mode” (p.37). When activated, the rhythm voicing of the OM-84 can be used. Knobs and buttons Setting [Master Volume] Center [STRUMPLATE] [Sustain] Maximum [Main Volume] Minimum [Sub Volume] Minimum [RHYTHM] [Tempo] Center [Volume] Center [CHORD] [Volume] Minimum [REAL TIME CONTROL] [Chord Manual/Auto] Manual [Chord Hold] Enabled (LED turned on) [Rhythm Start/Sync Start] Sync Start Master Volume REAL TIME CONTROL PATTERN Master Volume STRUMPLATE CHORD Instant OFF plate Chord buttons

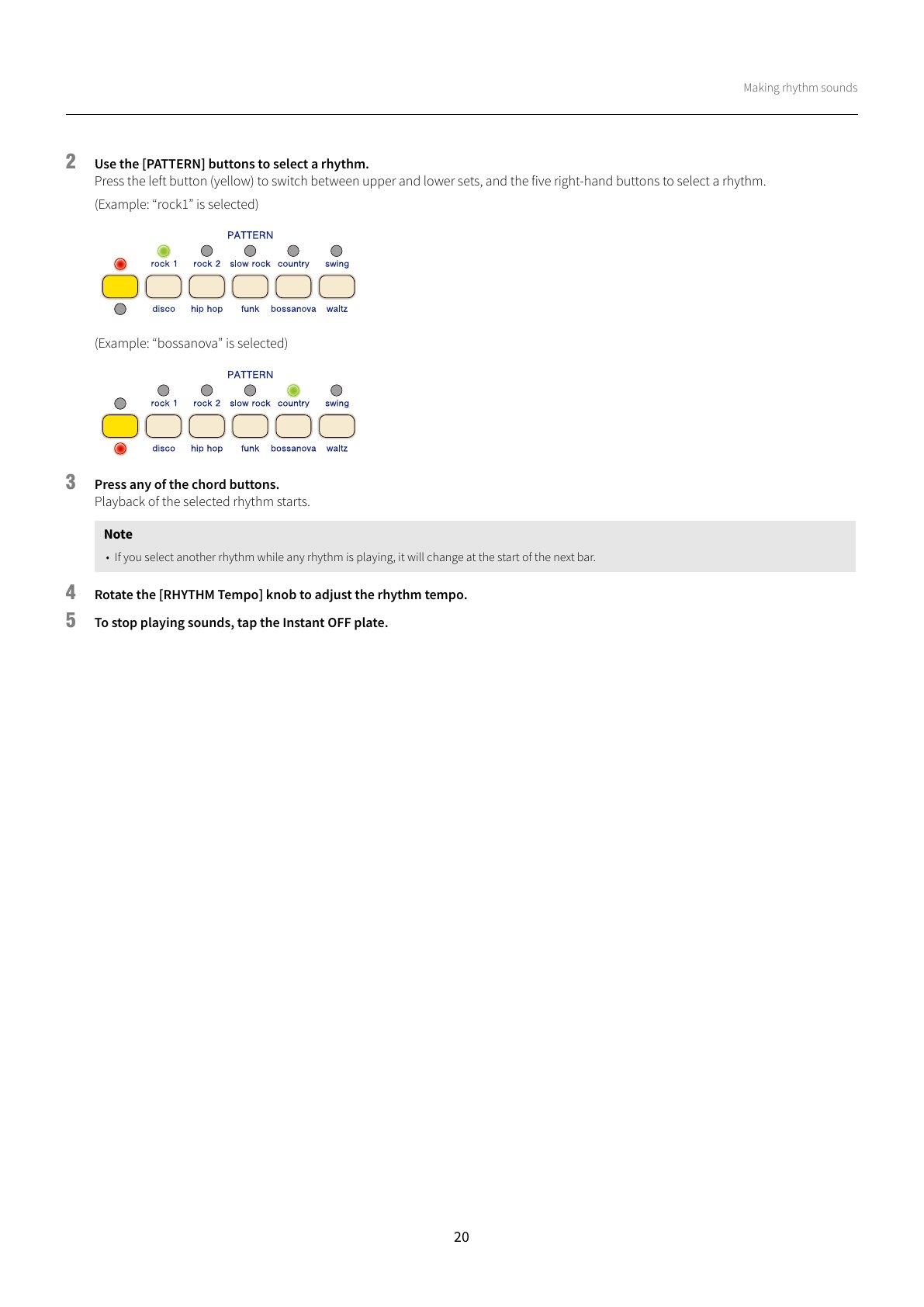

Making rhythm sounds 20 2 Use the [PATTERN] buttons to select a rhythm. Press the left button (yellow) to switch between upper and lower sets, and the five right-hand buttons to select a rhythm. (Example: “rock1” is selected) (Example: “bossanova” is selected) 3 Press any of the chord buttons. Playback of the selected rhythm starts. 4 Rotate the [RHYTHM Tempo] knob to adjust the rhythm tempo. 5 To stop playing sounds, tap the Instant OFF plate. Note • If you select another rhythm while any rhythm is playing, it will change at the start of the next bar.

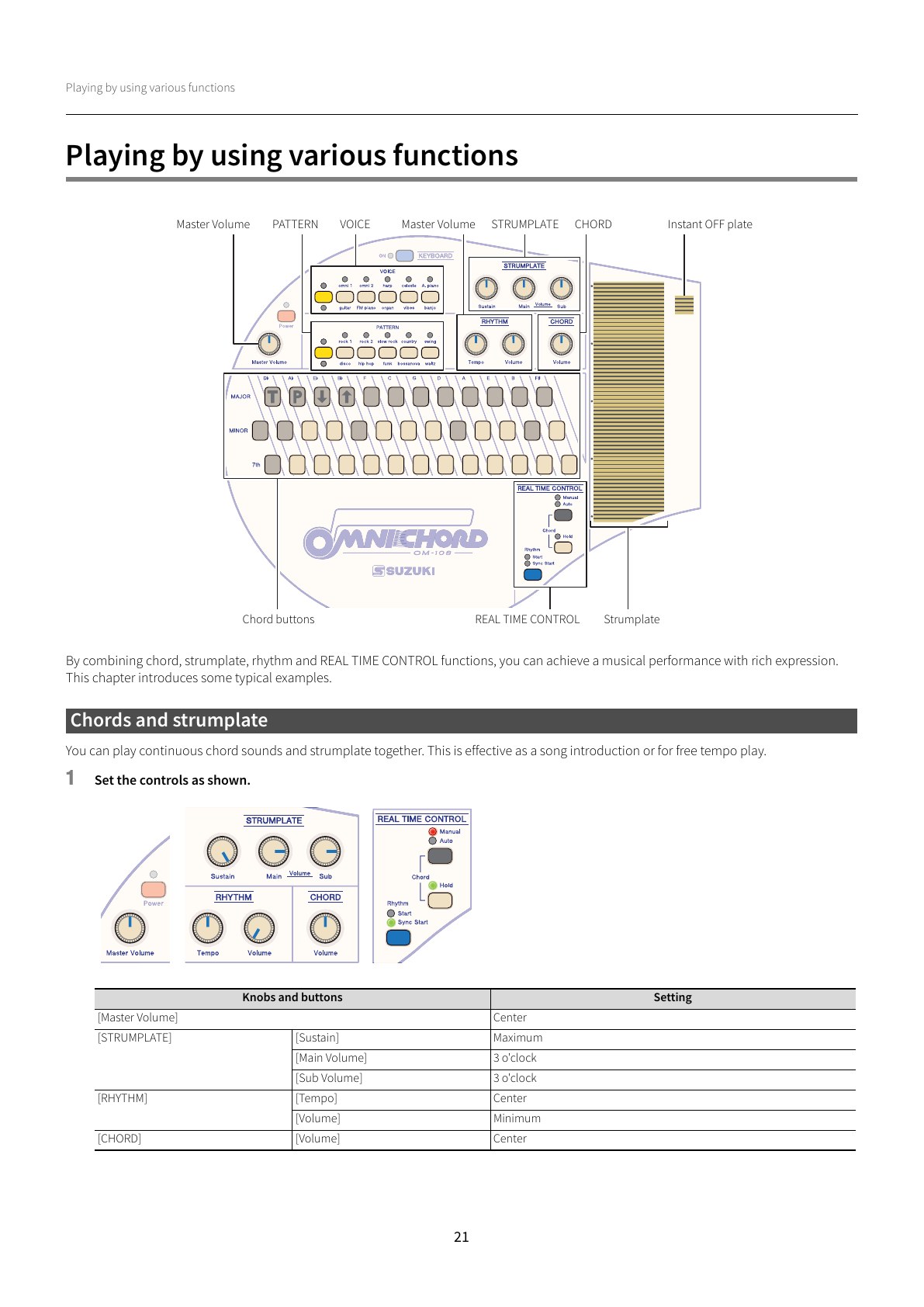

Playing by using various functions 21 Playing by using various functions By combining chord, strumplate, rhythm and REAL TIME CONTROL functions, you can achieve a musical performance with rich expression. This chapter introduces some typical examples. Chords and strumplate You can play continuous chord sounds and strumplate together. This is effective as a song introduction or for free tempo play. 1 Set the controls as shown. Knobs and buttons Setting [Master Volume] Center [STRUMPLATE] [Sustain] Maximum [Main Volume] 3 o'clock [Sub Volume] 3 o'clock [RHYTHM] [Tempo] Center [Volume] Minimum [CHORD] [Volume] Center Master Volume REAL TIME CONTROL PATTERN Master Volume STRUMPLATE CHORD Instant OFF plate Chord buttons Strumplate VOICE

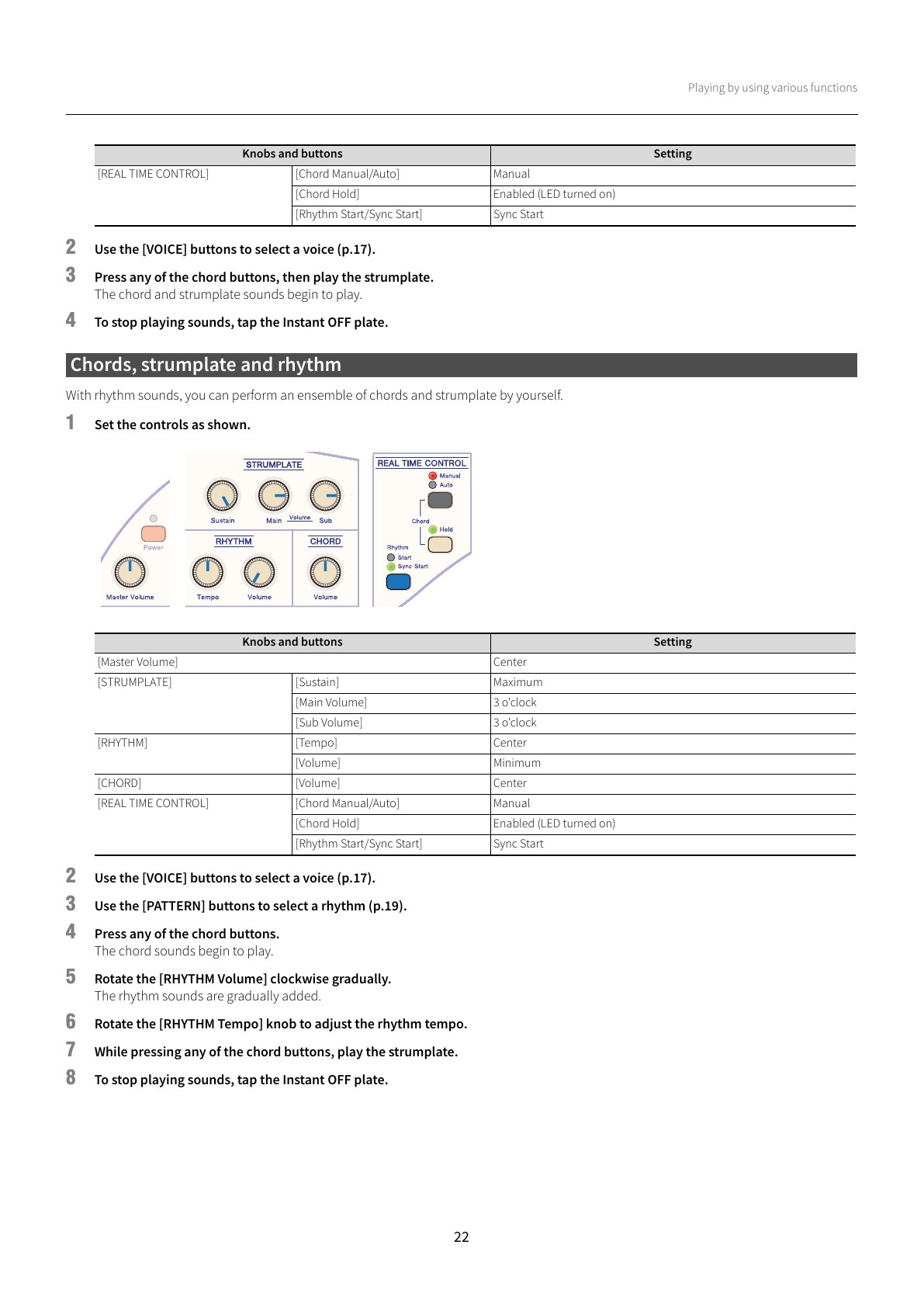

Playing by using various functions 22 2 Use the [VOICE] buttons to select a voice (p.17). 3 Press any of the chord buttons, then play the strumplate. The chord and strumplate sounds begin to play. 4 To stop playing sounds, tap the Instant OFF plate. Chords, strumplate and rhythm With rhythm sounds, you can perform an ensemble of chords and strumplate by yourself. 1 Set the controls as shown. 2 Use the [VOICE] buttons to select a voice (p.17). 3 Use the [PATTERN] buttons to select a rhythm (p.19). 4 Press any of the chord buttons. The chord sounds begin to play. 5 Rotate the [RHYTHM Volume] clockwise gradually. The rhythm sounds are gradually added. 6 Rotate the [RHYTHM Tempo] knob to adjust the rhythm tempo. 7 While pressing any of the chord buttons, play the strumplate. 8 To stop playing sounds, tap the Instant OFF plate. [REAL TIME CONTROL] [Chord Manual/Auto] Manual [Chord Hold] Enabled (LED turned on) [Rhythm Start/Sync Start] Sync Start Knobs and buttons Setting [Master Volume] Center [STRUMPLATE] [Sustain] Maximum [Main Volume] 3 o'clock [Sub Volume] 3 o'clock [RHYTHM] [Tempo] Center [Volume] Minimum [CHORD] [Volume] Center [REAL TIME CONTROL] [Chord Manual/Auto] Manual [Chord Hold] Enabled (LED turned on) [Rhythm Start/Sync Start] Sync Start Knobs and buttons Setting

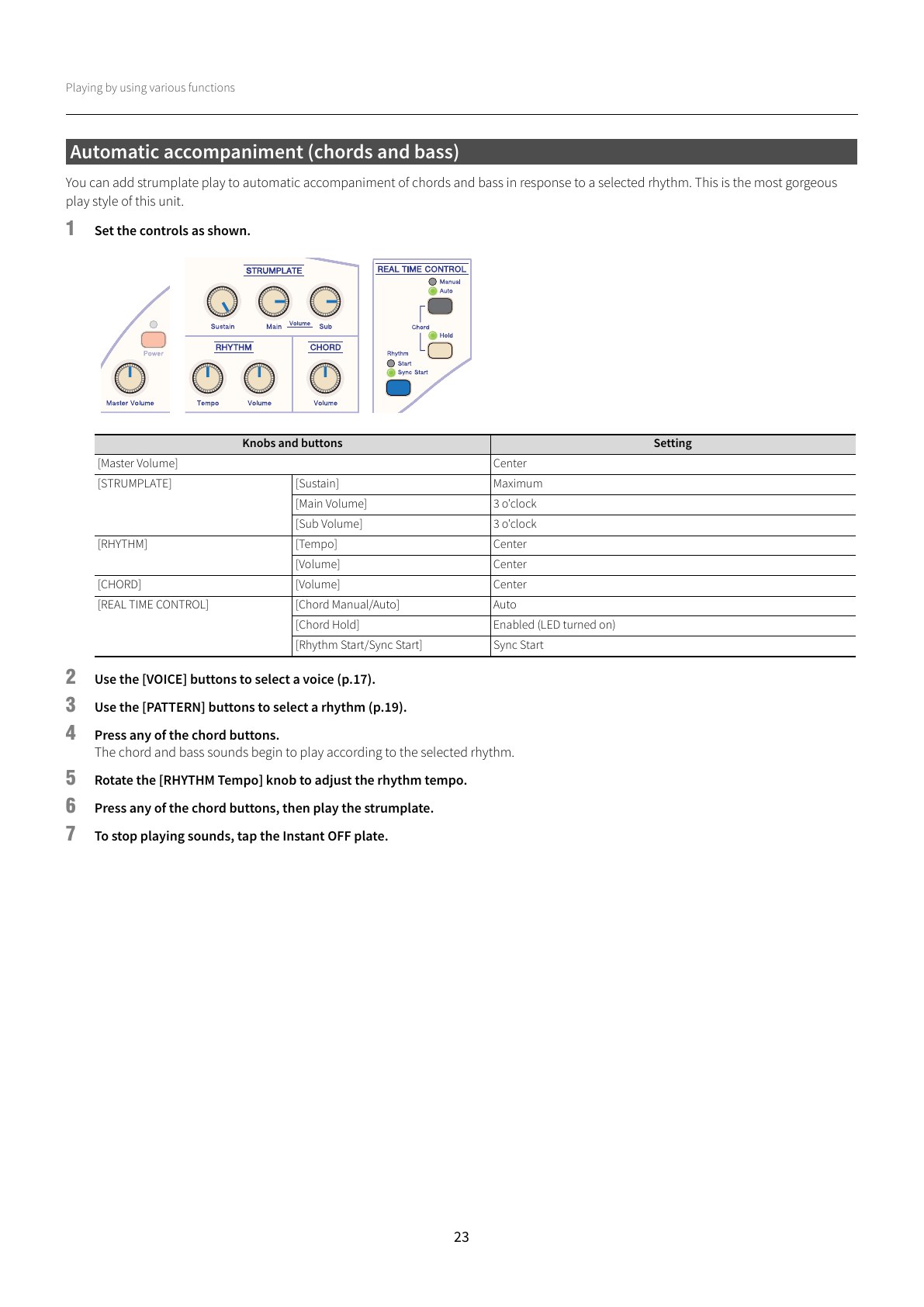

Playing by using various functions 23 Automatic accompaniment (chords and bass) You can add strumplate play to automatic accompaniment of chords and bass in response to a selected rhythm. This is the most gorgeous play style of this unit. 1 Set the controls as shown. 2 Use the [VOICE] buttons to select a voice (p.17). 3 Use the [PATTERN] buttons to select a rhythm (p.19). 4 Press any of the chord buttons. The chord and bass sounds begin to play according to the selected rhythm. 5 Rotate the [RHYTHM Tempo] knob to adjust the rhythm tempo. 6 Press any of the chord buttons, then play the strumplate. 7 To stop playing sounds, tap the Instant OFF plate. Knobs and buttons Setting [Master Volume] Center [STRUMPLATE] [Sustain] Maximum [Main Volume] 3 o'clock [Sub Volume] 3 o'clock [RHYTHM] [Tempo] Center [Volume] Center [CHORD] [Volume] Center [REAL TIME CONTROL] [Chord Manual/Auto] Auto [Chord Hold] Enabled (LED turned on) [Rhythm Start/Sync Start] Sync Start

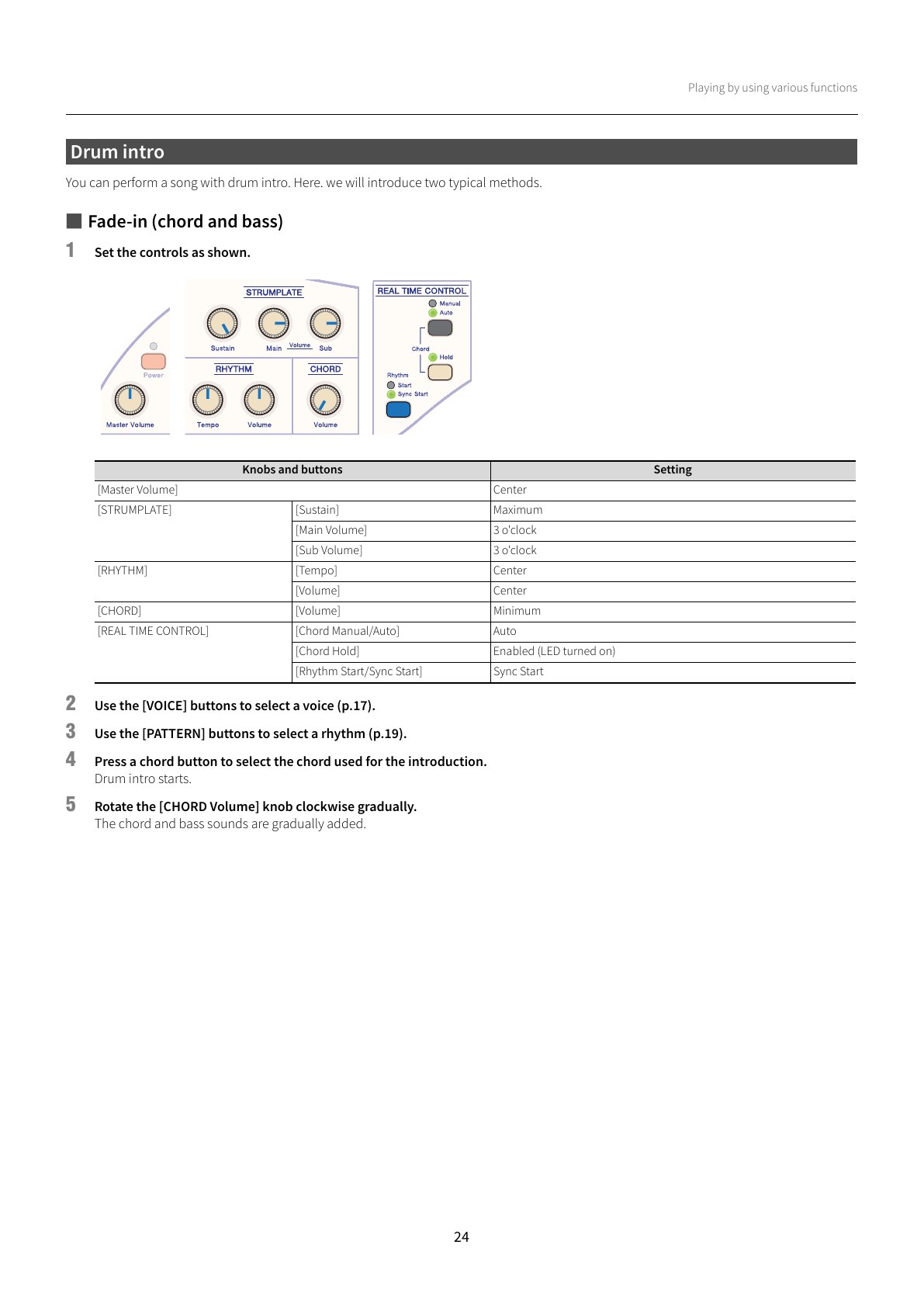

Playing by using various functions 24 Drum intro You can perform a song with drum intro. Here. we will introduce two typical methods. ■Fade-in (chord and bass) 1 Set the controls as shown. 2 Use the [VOICE] buttons to select a voice (p.17). 3 Use the [PATTERN] buttons to select a rhythm (p.19). 4 Press a chord button to select the chord used for the introduction. Drum intro starts. 5 Rotate the [CHORD Volume] knob clockwise gradually. The chord and bass sounds are gradually added. Knobs and buttons Setting [Master Volume] Center [STRUMPLATE] [Sustain] Maximum [Main Volume] 3 o'clock [Sub Volume] 3 o'clock [RHYTHM] [Tempo] Center [Volume] Center [CHORD] [Volume] Minimum [REAL TIME CONTROL] [Chord Manual/Auto] Auto [Chord Hold] Enabled (LED turned on) [Rhythm Start/Sync Start] Sync Start

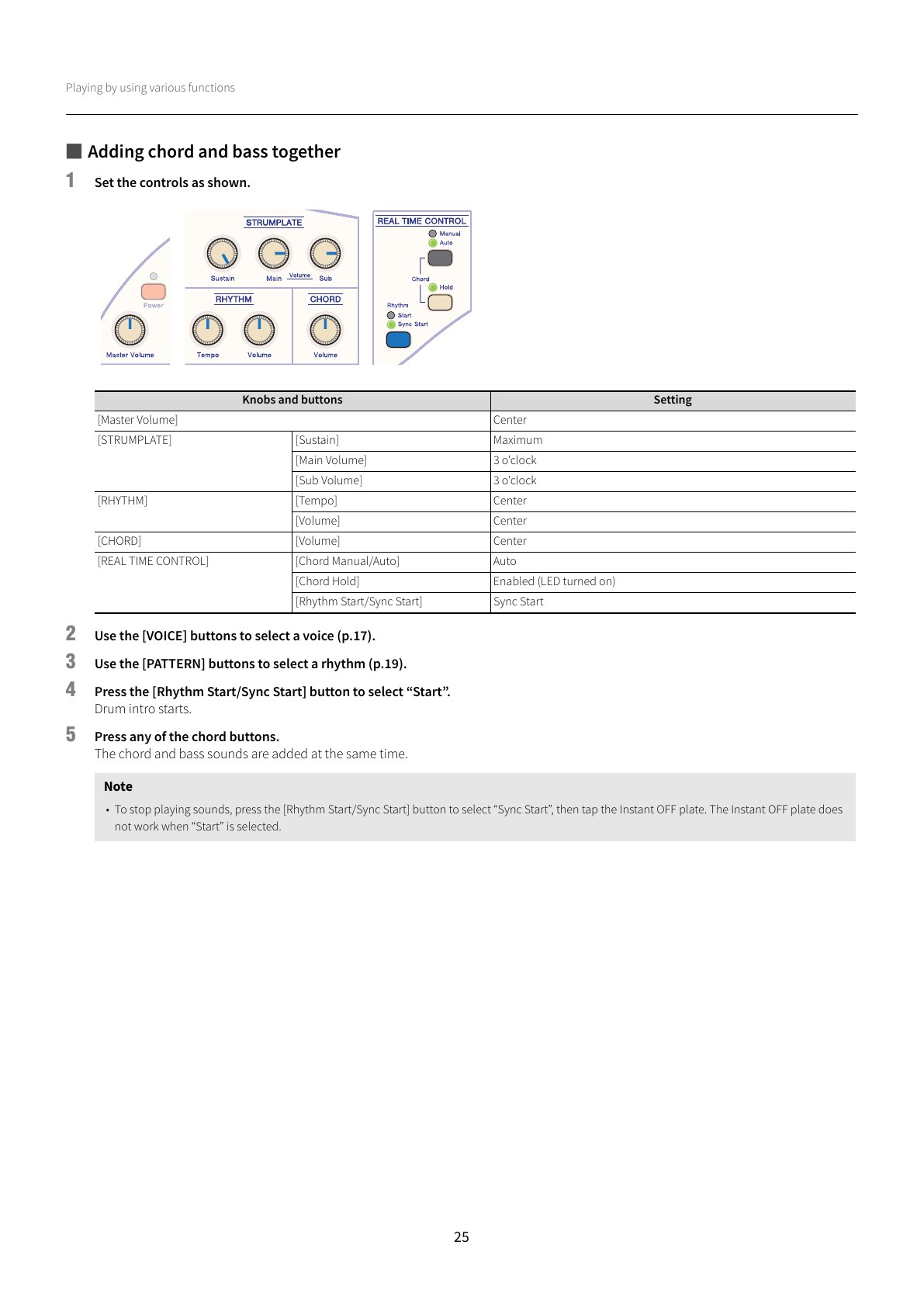

Playing by using various functions 25 ■Adding chord and bass together 1 Set the controls as shown. 2 Use the [VOICE] buttons to select a voice (p.17). 3 Use the [PATTERN] buttons to select a rhythm (p.19). 4 Press the [Rhythm Start/Sync Start] button to select “Start” . Drum intro starts. 5 Press any of the chord buttons. The chord and bass sounds are added at the same time. Knobs and buttons Setting [Master Volume] Center [STRUMPLATE] [Sustain] Maximum [Main Volume] 3 o'clock [Sub Volume] 3 o'clock [RHYTHM] [Tempo] Center [Volume] Center [CHORD] [Volume] Center [REAL TIME CONTROL] [Chord Manual/Auto] Auto [Chord Hold] Enabled (LED turned on) [Rhythm Start/Sync Start] Sync Start Note • To stop playing sounds, press the [Rhythm Start/Sync Start] button to select “Sync Start” , then tap the Instant OFF plate. The Instant OFF plate does not work when “Start” is selected.

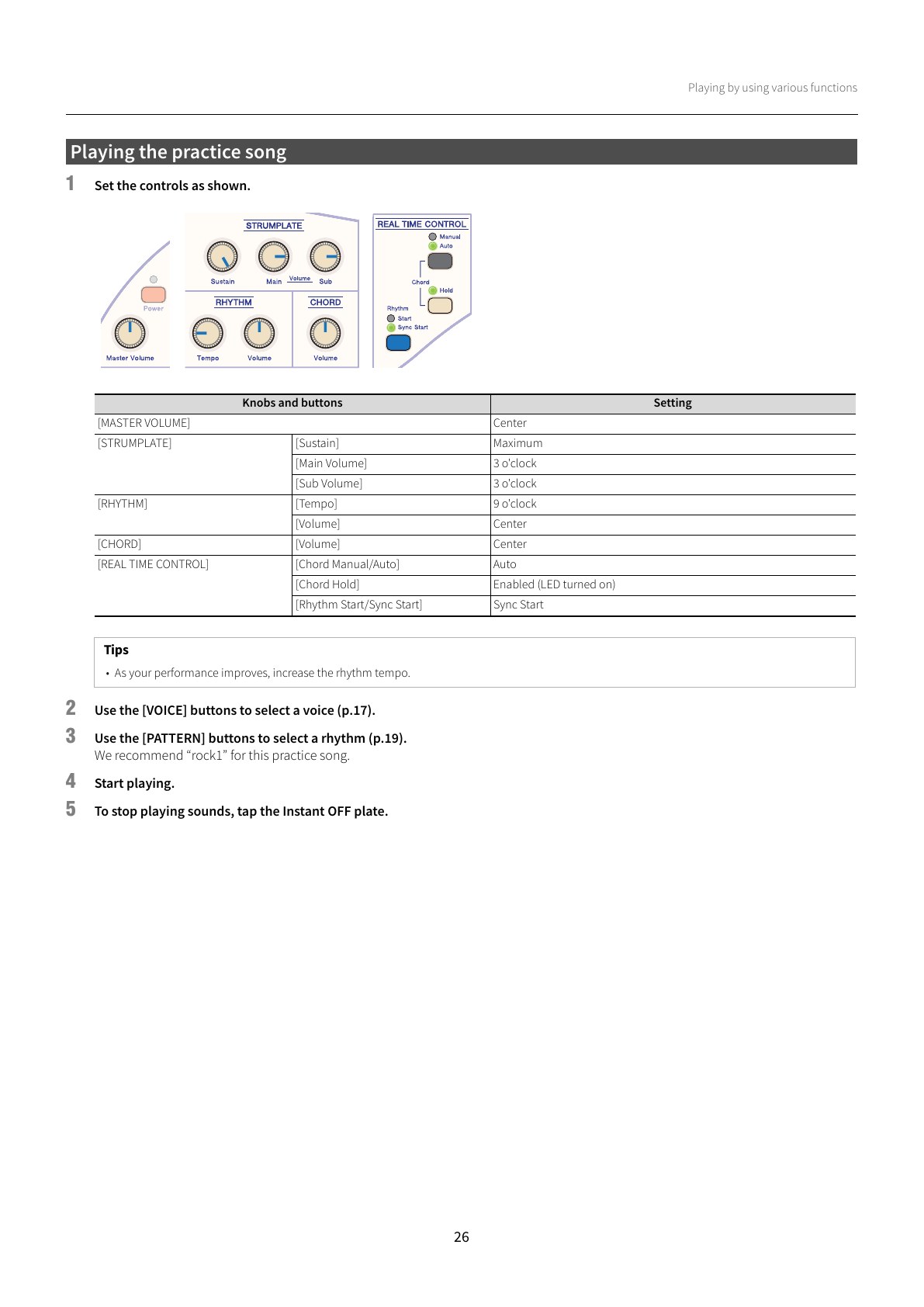

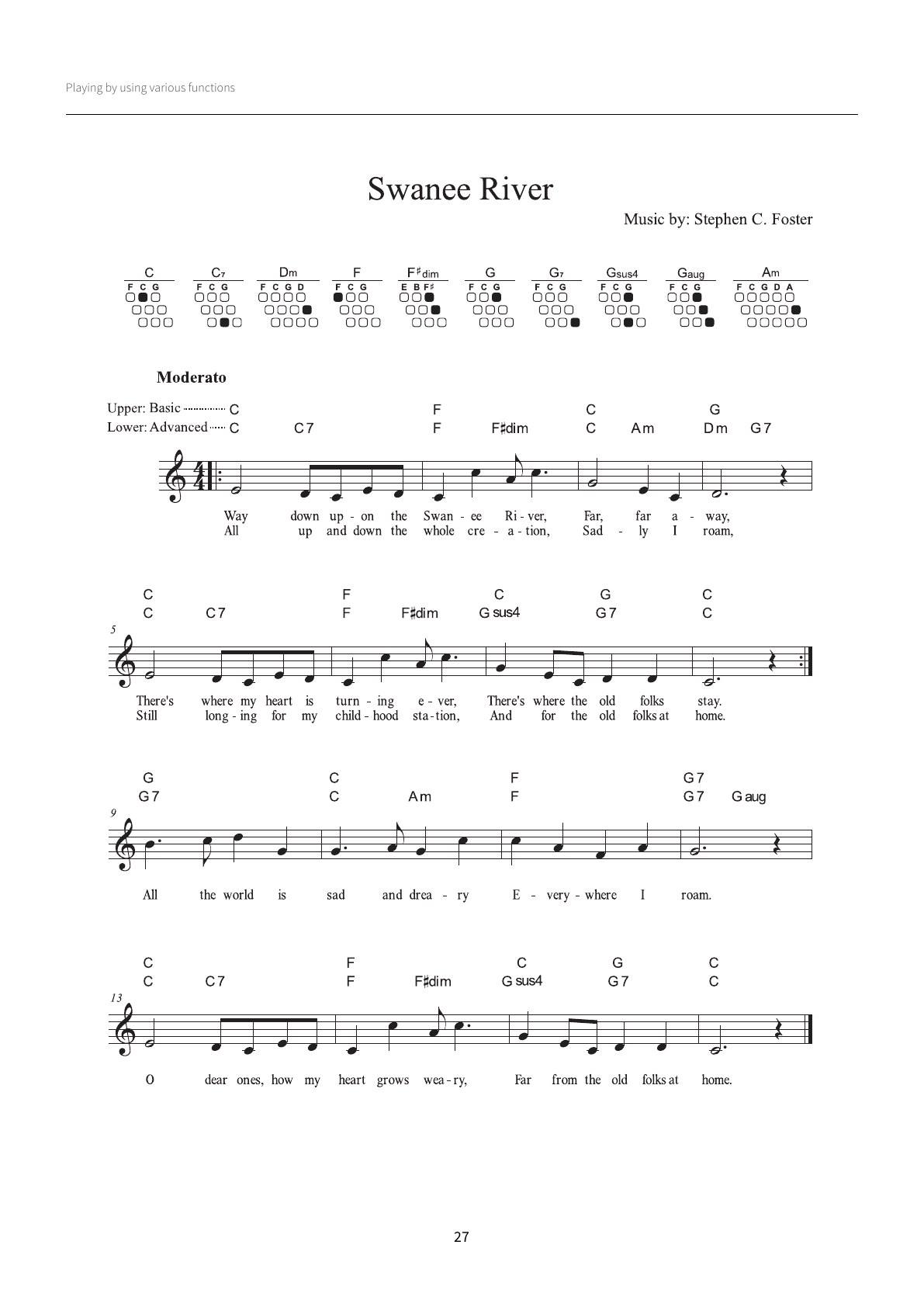

Playing by using various functions 26 Playing the practice song 1 Set the controls as shown. 2 Use the [VOICE] buttons to select a voice (p.17). 3 Use the [PATTERN] buttons to select a rhythm (p.19). We recommend “rock1” for this practice song. 4 Start playing. 5 To stop playing sounds, tap the Instant OFF plate. Knobs and buttons Setting [MASTER VOLUME] Center [STRUMPLATE] [Sustain] Maximum [Main Volume] 3 o'clock [Sub Volume] 3 o'clock [RHYTHM] [Tempo] 9 o'clock [Volume] Center [CHORD] [Volume] Center [REAL TIME CONTROL] [Chord Manual/Auto] Auto [Chord Hold] Enabled (LED turned on) [Rhythm Start/Sync Start] Sync Start Tips • As your performance improves, increase the rhythm tempo.

Playing by using various functions 27

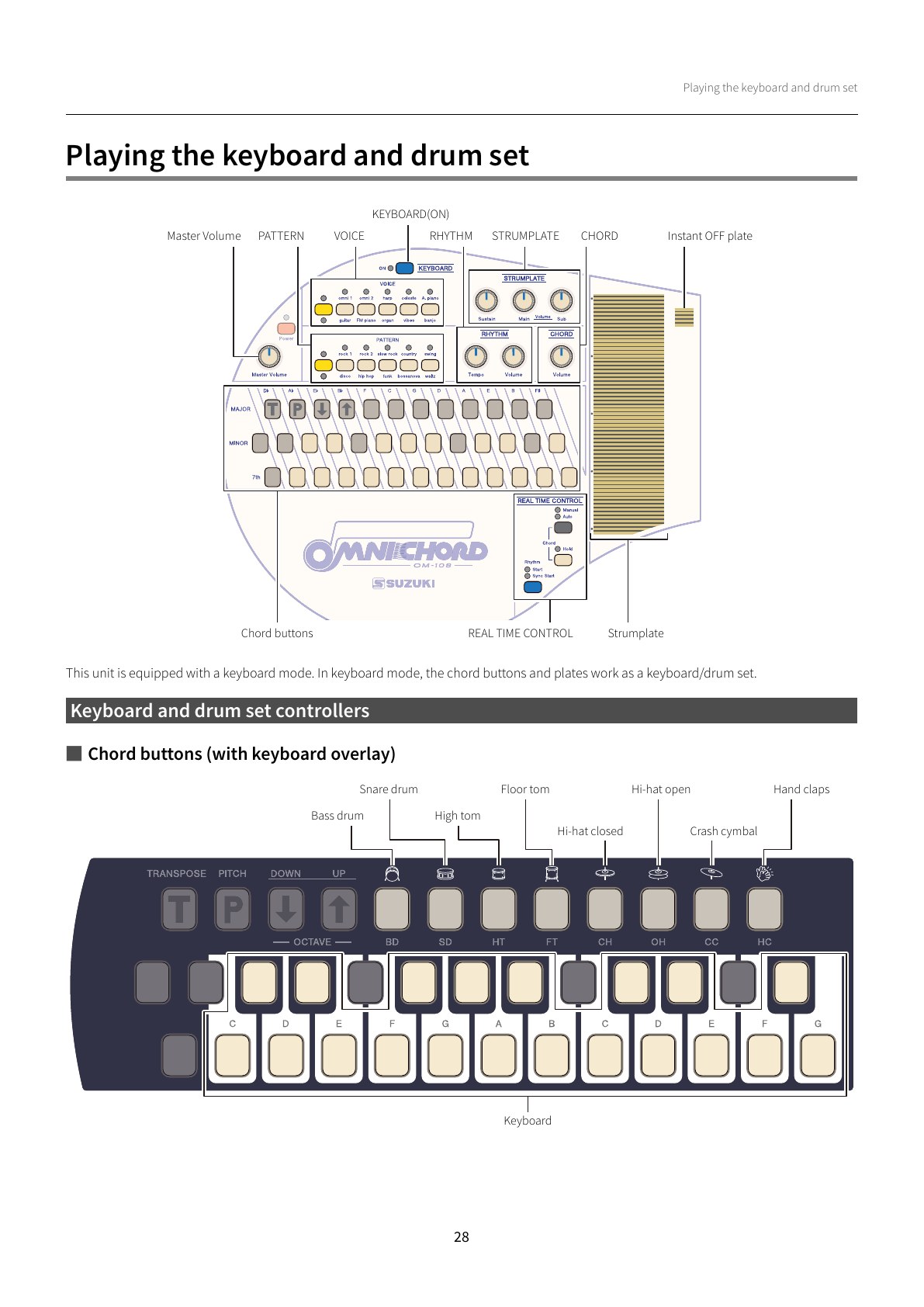

Playing the keyboard and drum set 28 Playing the keyboard and drum set This unit is equipped with a keyboard mode. In keyboard mode, the chord buttons and plates work as a keyboard/drum set. Keyboard and drum set controllers ■Chord buttons (with keyboard overlay) Master Volume STRUMPLATE CHORD RHYTHMPATTERN Instant OFF plate Chord buttons VOICE REAL TIME CONTROL Strumplate KEYBOARD(ON) Bass drum Snare drum High tom Floor tom Hi-hat closed Crash cymbal Hi-hat open Hand claps Keyboard

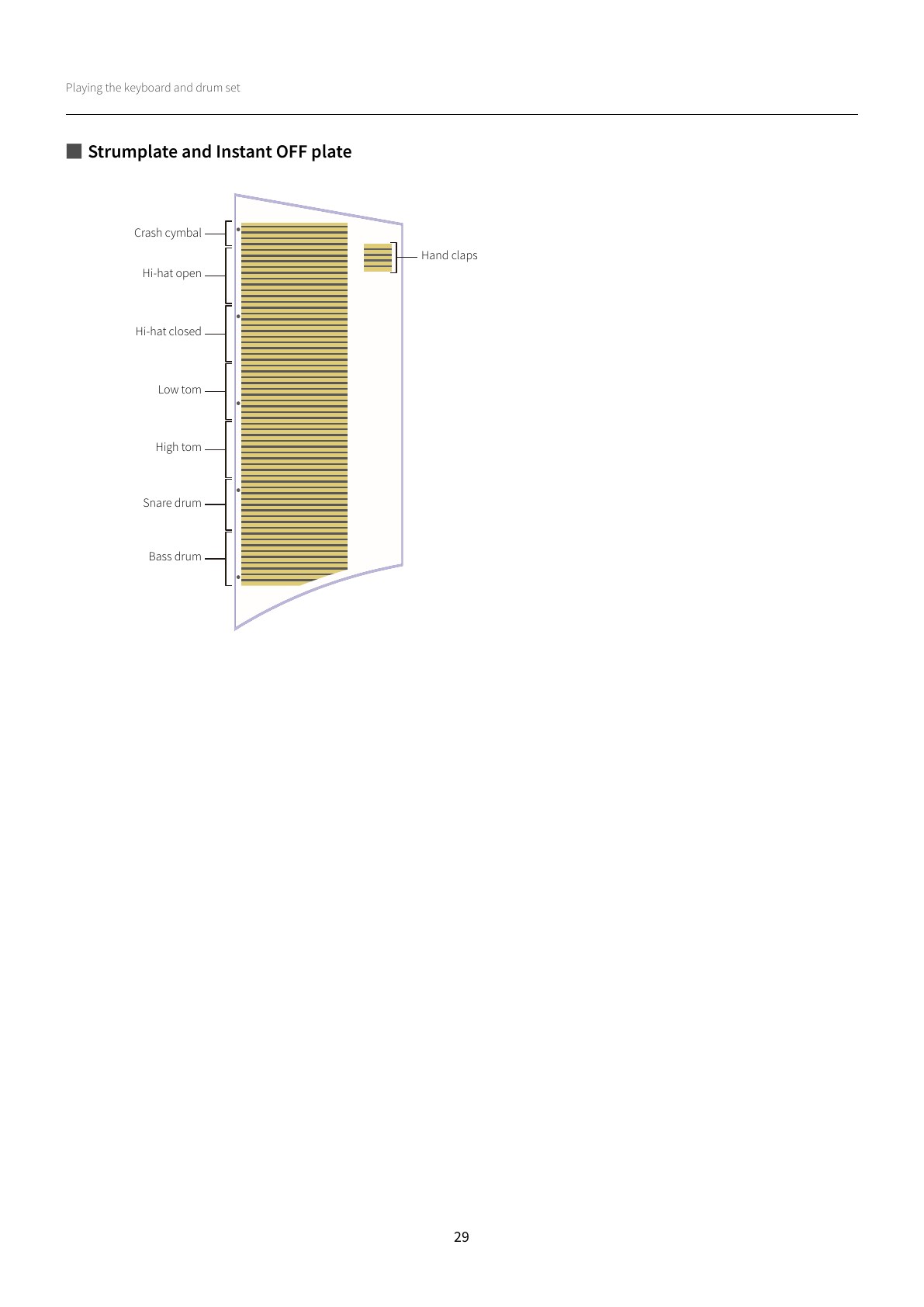

Playing the keyboard and drum set 29 ■Strumplate and Instant OFF plate Crash cymbal Hi-hat open Hi-hat closed Low tom High tom Snare drum Bass drum Hand claps

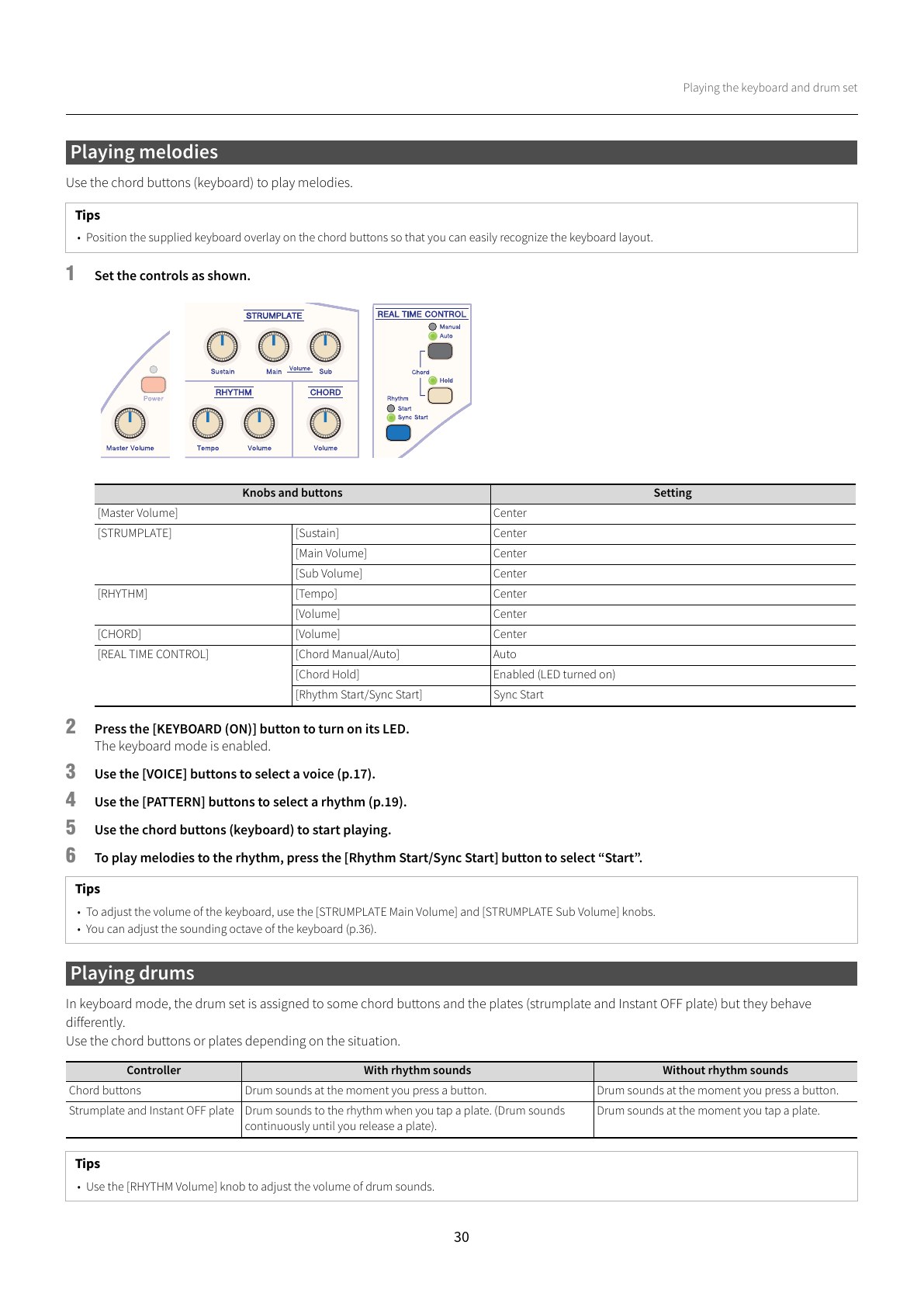

Playing the keyboard and drum set 30 Playing melodies Use the chord buttons (keyboard) to play melodies. 1 Set the controls as shown. 2 Press the [KEYBOARD (ON)] button to turn on its LED. The keyboard mode is enabled. 3 Use the [VOICE] buttons to select a voice (p.17). 4 Use the [PATTERN] buttons to select a rhythm (p.19). 5 Use the chord buttons (keyboard) to start playing. 6 To play melodies to the rhythm, press the [Rhythm Start/Sync Start] button to select “Start” . Playing drums In keyboard mode, the drum set is assigned to some chord buttons and the plates (strumplate and Instant OFF plate) but they behave differently. Use the chord buttons or plates depending on the situation. Tips • Position the supplied keyboard overlay on the chord buttons so that you can easily recognize the keyboard layout. Knobs and buttons Setting [Master Volume] Center [STRUMPLATE] [Sustain] Center [Main Volume] Center [Sub Volume] Center [RHYTHM] [Tempo] Center [Volume] Center [CHORD] [Volume] Center [REAL TIME CONTROL] [Chord Manual/Auto] Auto [Chord Hold] Enabled (LED turned on) [Rhythm Start/Sync Start] Sync Start Tips • To adjust the volume of the keyboard, use the [STRUMPLATE Main Volume] and [STRUMPLATE Sub Volume] knobs. • You can adjust the sounding octave of the keyboard (p.36). Controller With rhythm sounds Without rhythm sounds Chord buttons Drum sounds at the moment you press a bu tton. Drum sounds at the moment you press a button. Strumplate and Instant OFF plate Drum sounds to the rhythm when you tap a plate. (Drum sounds continuously until you release a plate). Drum sounds at the moment you tap a plate. Tips • Use the [RHYTHM Volume] knob to adjust the volume of drum sounds.

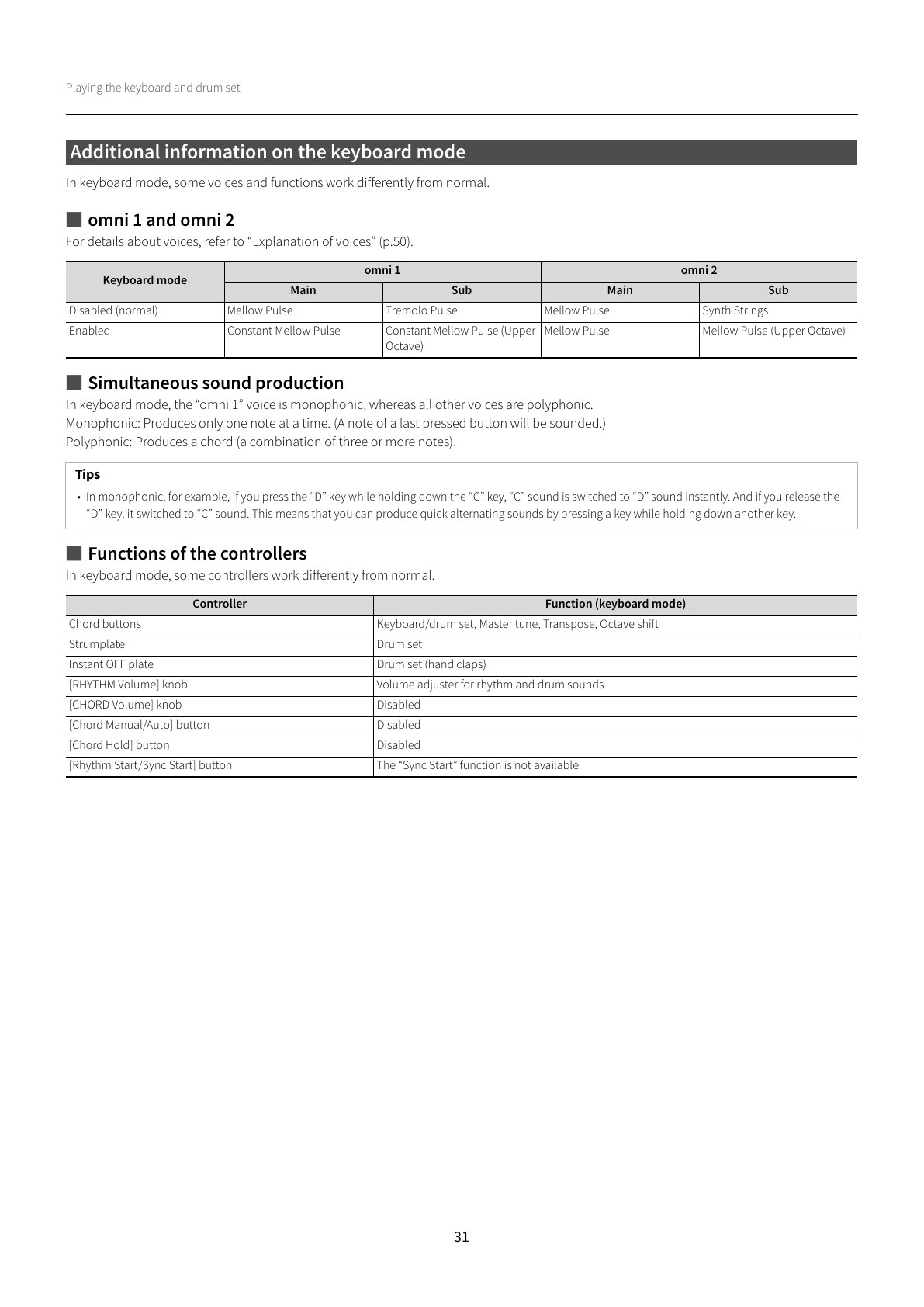

Playing the keyboard and drum set 31 Additional information on the keyboard mode In keyboard mode, some voices and functions work differently from normal. ■omni 1 and omni 2 For details about voices, refer to “Explanation of voices” (p.50). ■Simultaneous sound production In keyboard mode, the “omni 1” voice is monophonic, whereas all other voices are polyphonic. Monophonic: Produces only one note at a time. (A note of a last pressed button will be sounded.) Polyphonic: Produces a chord (a combination of three or more notes). ■Functions of the controllers In keyboard mode, some controllers work differently from normal. Keyboard mode omni 1 omni 2 Main Sub Main Sub Disabled (normal) Mellow Pulse Tremolo Pulse Mellow Pulse Synth Strings Enabled Constant Mellow Pulse Constant Mellow Pulse (Upper Octave) Mellow Pulse Mellow Pulse (Upper Octave)Tips • In monophonic, for example, if you press the “D” key while holding down the “C” key, “C” sound is switched to “D” sound instantly. And if you release the “D” key, it switched to “C” sound. This means that you can produce quick alternating sounds by pressing a key while holding down another key. Controller Function (keyboard mode) Chord buttons Keyboard/drum set, Master tune, Transpose, Octave shift Strumplate Drum set Instant OFF plate Drum set (hand claps) [RHYTHM Volume] knob Volume adjuster for rhythm and drum sounds [CHORD Volume] knob Disabled [Chord Manual/Auto] button Disabled [Chord Hold] button Disabled [Rhythm Start/Sync Start] button The “Sync Start” function is not available.

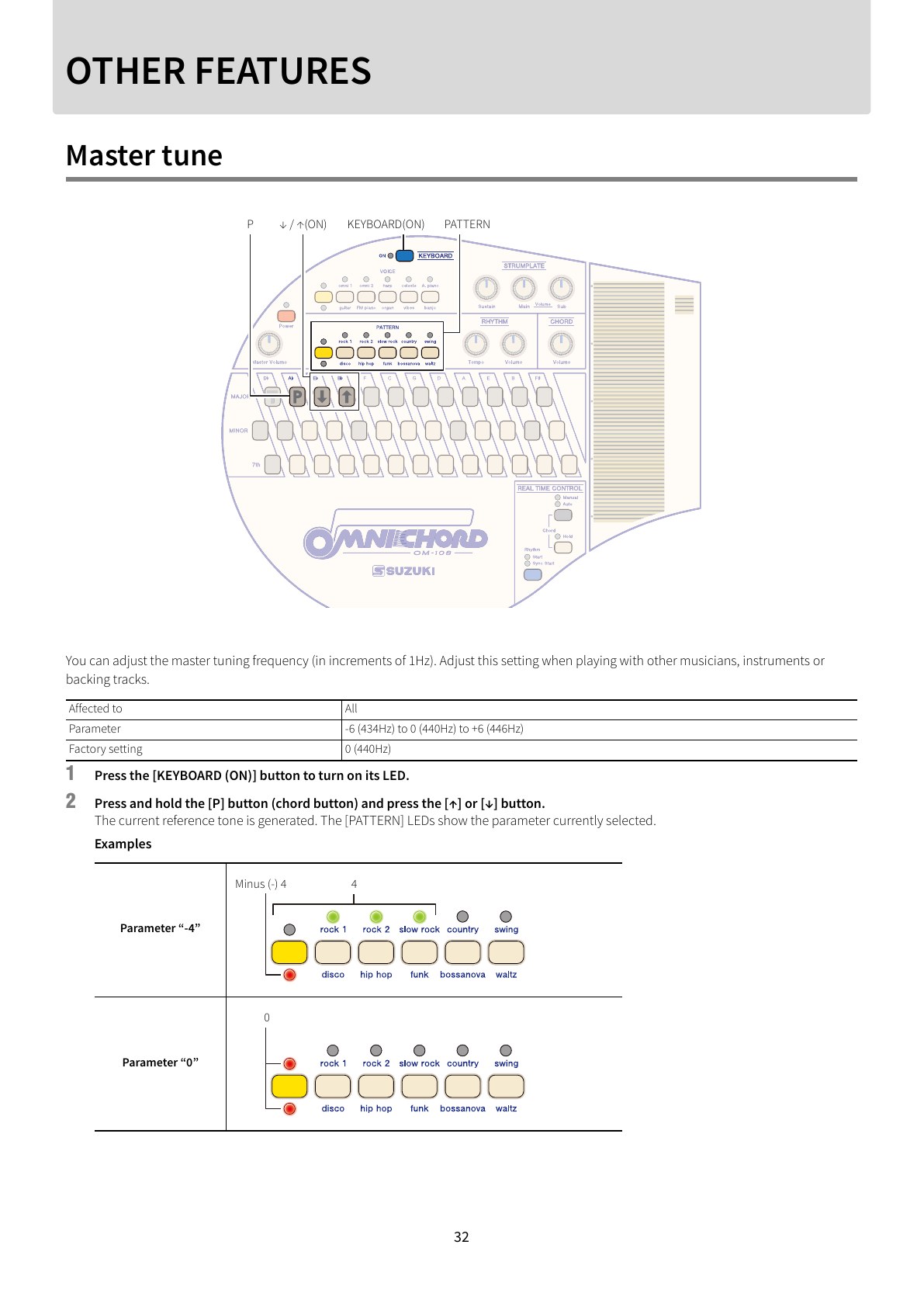

32 OTHER FEATURES Master tune You can adjust the master tuning frequency (in increments of 1Hz). Adjust this setting when playing with other musicians, instruments or backing tracks. 1 Press the [KEYBOARD (ON)] button to turn on its LED. 2 Press and hold the [P] button (chord button) and press the [↑] or [↓] button. The current reference tone is generated. The [PATTERN] LEDs show the parameter currently selected. Examples Affected to All Parameter -6 (434Hz) to 0 (440Hz) to +6 (446Hz) Factory setting 0 (440Hz) Parameter “-4” Parameter “0” KEYBOARD(ON) PATTERNP↓ / ↑ ( O N ) Minus (-) 4 4 0

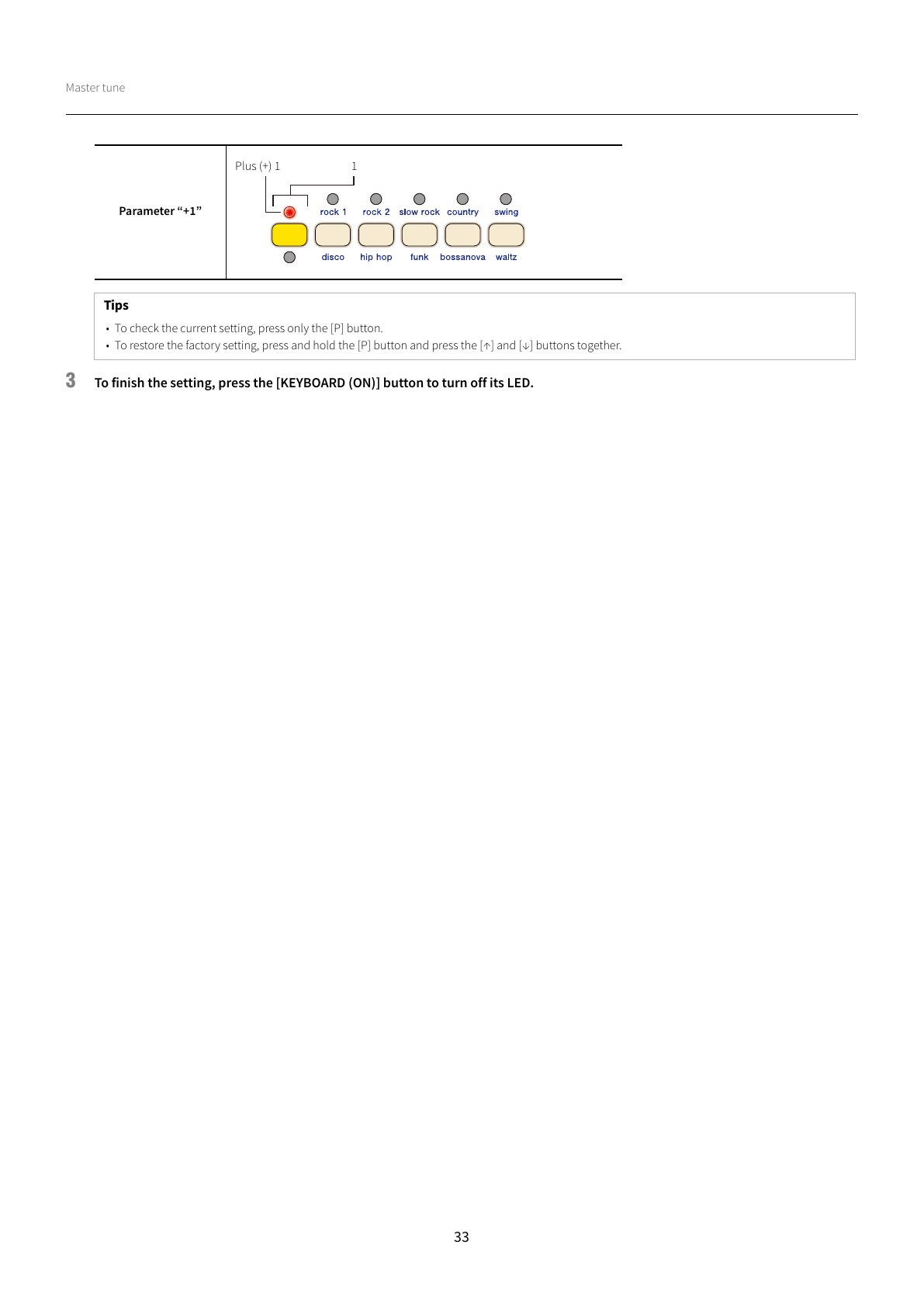

Master tune 33 3 To finish the setting, press the [KEYBOARD (ON)] button to turn off its LED. Parameter “+1” Tips • To check the current setting, press only the [P] button. • To restore the factory setting, press and hold the [P] button and press the [↑] and [↓] buttons together. Plus (+) 1 1

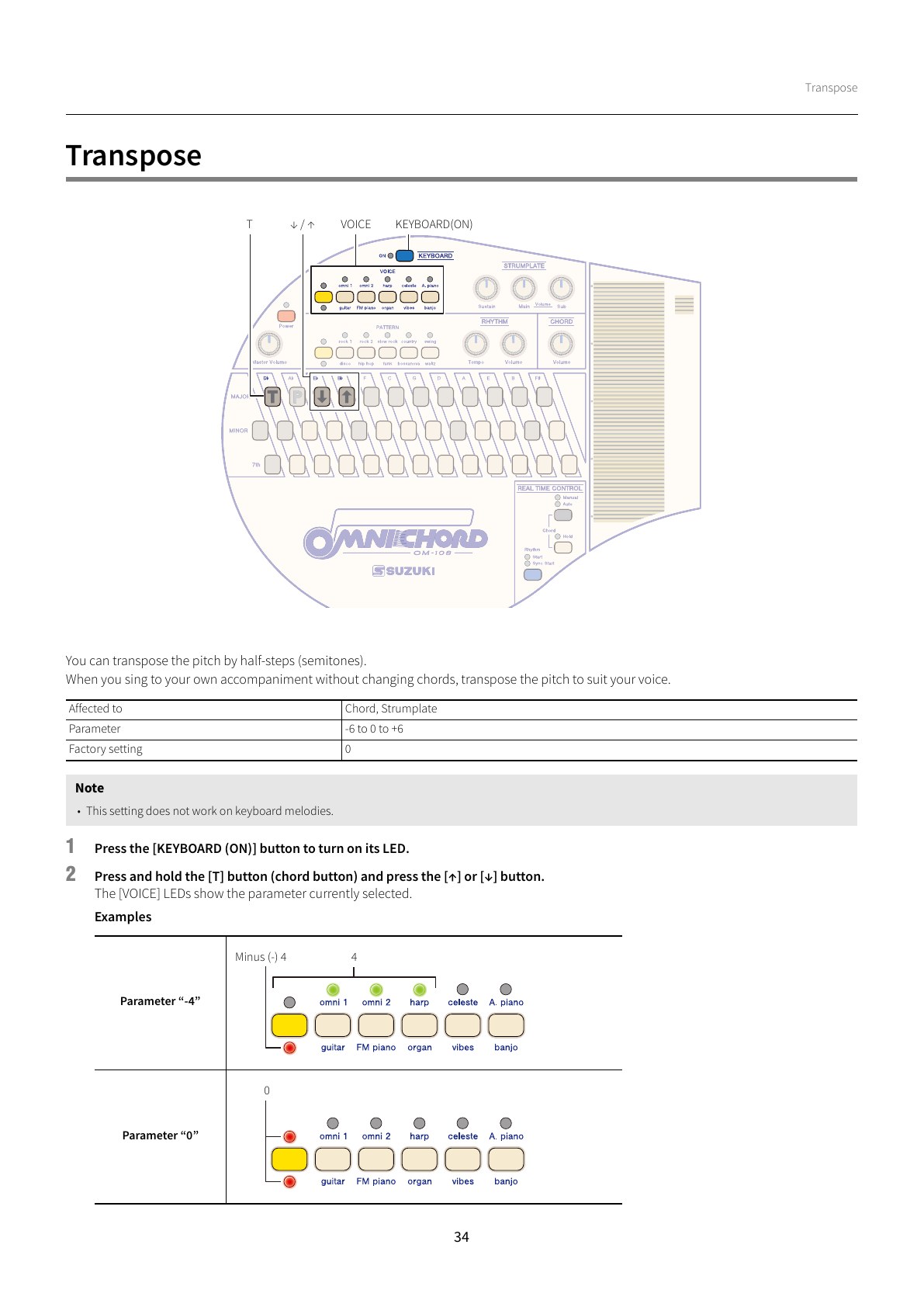

Transpose 34 Transpose You can transpose the pitch by half-steps (semitones). When you sing to your own accompaniment without changing chords, transpose the pitch to suit your voice. 1 Press the [KEYBOARD (ON)] button to turn on its LED. 2 Press and hold the [T] button (chord button) and press the [↑] or [↓] button. The [VOICE] LEDs show the parameter currently selected. Examples Affected to Chord, Strumplate Parameter -6 to 0 to +6 Factory setting 0 Note • This setting does not work on keyboard melodies. Parameter “-4” Parameter “0” TK E Y B O A R D ( O N )VOICE↓ / ↑ Minus (-) 4 4 0

Transpose 35 3 To finish the setting, press the [KEYBOARD (ON)] button to turn off its LED. Parameter “+1” Tips • To check the current setting, press only the [T] button. • To restore the factory setting, press and hold the [T] button and press the [↑] and [↓] buttons together. Plus (+) 1 1

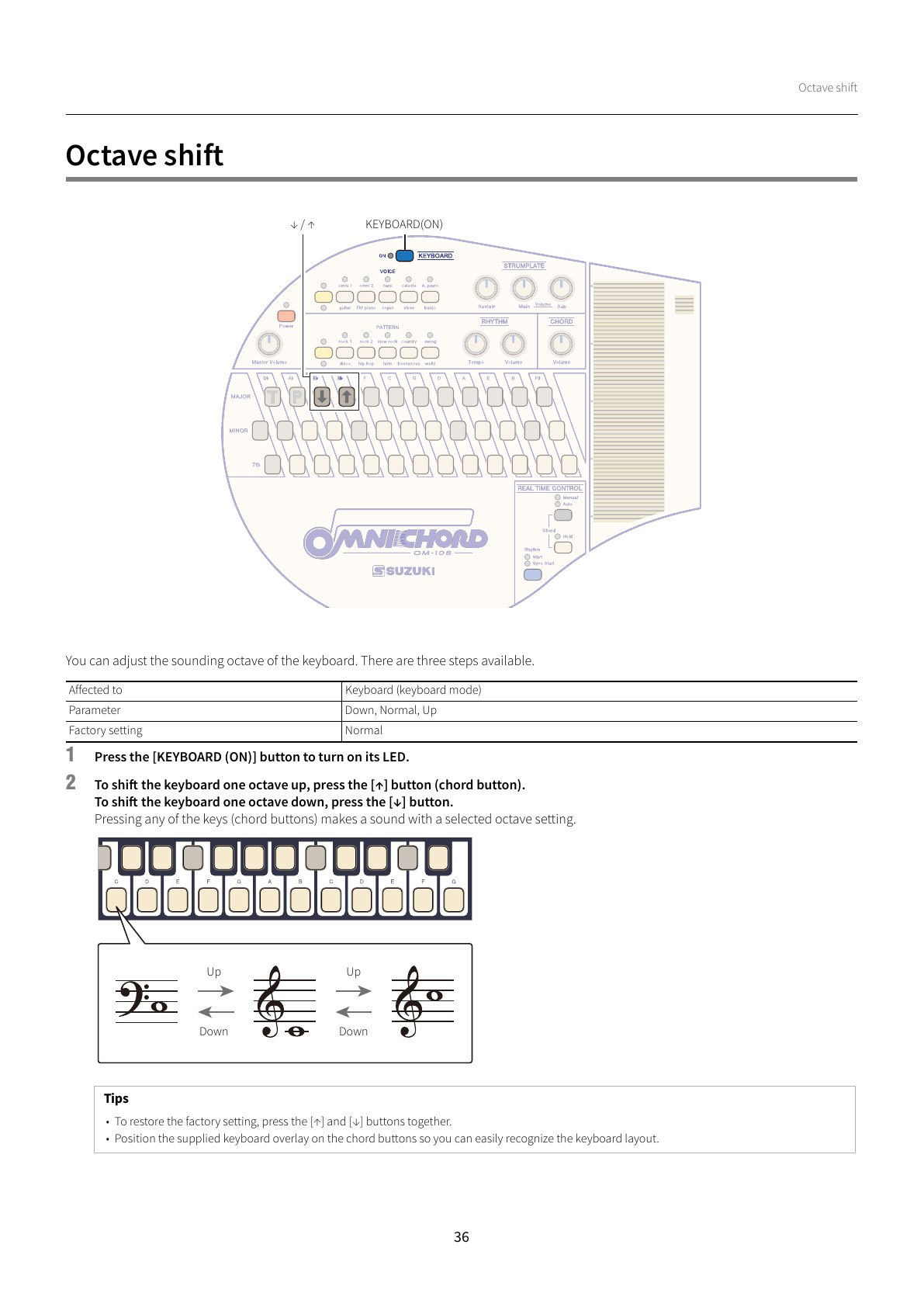

Octave shift 36 Octave shift You can adjust the sounding octave of the keyboard. There are three steps available. 1 Press the [KEYBOARD (ON)] button to turn on its LED. 2 To shift the keyboard one octave up, press the [↑] button (chord button). To shift the keyboard one octave down, press the [↓] button. Pressing any of the keys (chord buttons) makes a sound with a selected octave setting. Affected to Keyboard (keyboard mode) Parameter Down, Normal, Up Factory setting Normal Tips • To restore the factory setting, press the [↑] and [↓] buttons together. • Position the supplied keyboard overlay on the chord buttons so you can easily recognize the keyboard layout. KEYBOARD(ON)↓ / ↑ Up Down Up Down

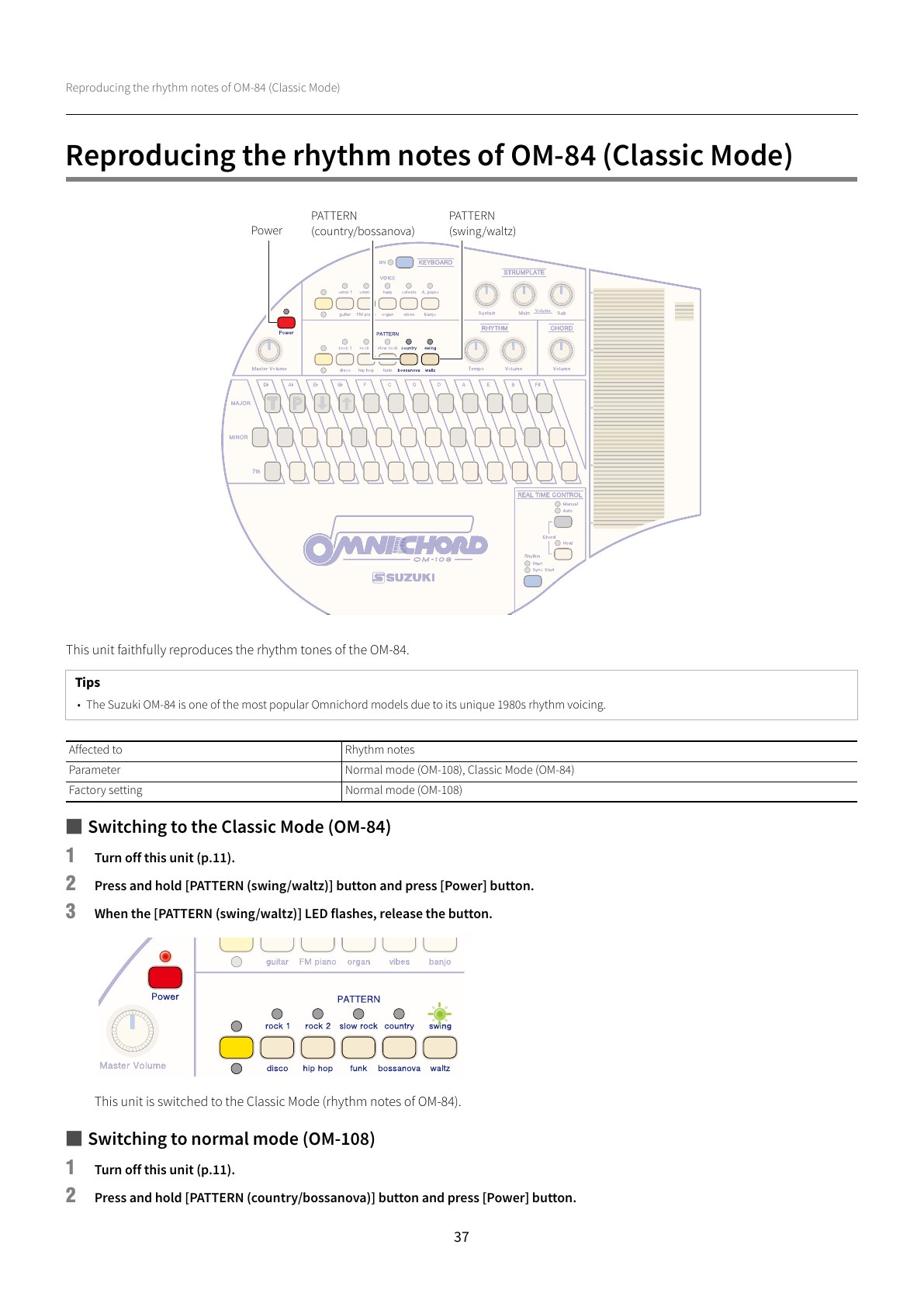

Reproducing the rhythm notes of OM-84 (Classic Mode) 37 Reproducing the rhythm notes of OM-84 (Classic Mode) This unit faithfully reproduces the rhythm tones of the OM-84. ■Switching to the Classic Mode (OM-84) 1 Turn off this unit (p.11). 2 Press and hold [PATTERN (swing/waltz)] button and press [Power] button. 3 When the [PATTERN (swing/waltz)] LED flashes, release the button. This unit is switched to the Classic Mode (rhythm notes of OM-84). ■Switching to normal mode (OM-108) 1 Turn off this unit (p.11). 2 Press and hold [PATTERN (country/bossanova)] button and press [Power] button. Tips • The Suzuki OM-84 is one of the most popular Omnichord models due to its unique 1980s rhythm voicing. Affected to Rhythm notes Parameter Normal mode (OM-108), Classic Mode (OM-84) Factory setting Normal mode (OM-108) PATTERN (country/bossanova)Power PATTERN (swing/waltz)

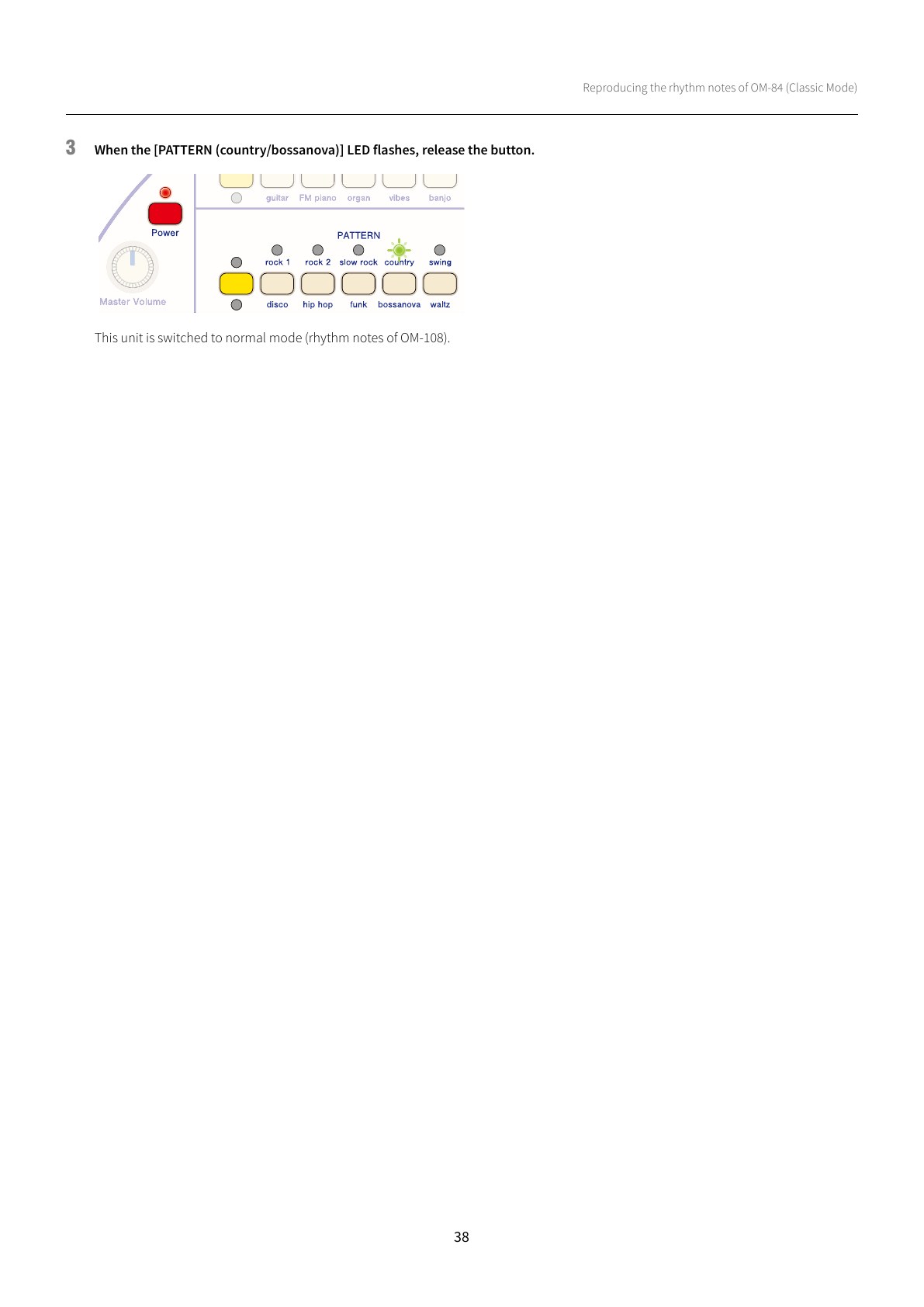

Reproducing the rhythm notes of OM-84 (Classic Mode) 38 3 When the [PATTERN (country/bossanova)] LED flashes, release the button. This unit is switched to normal mode (rhythm notes of OM-108).

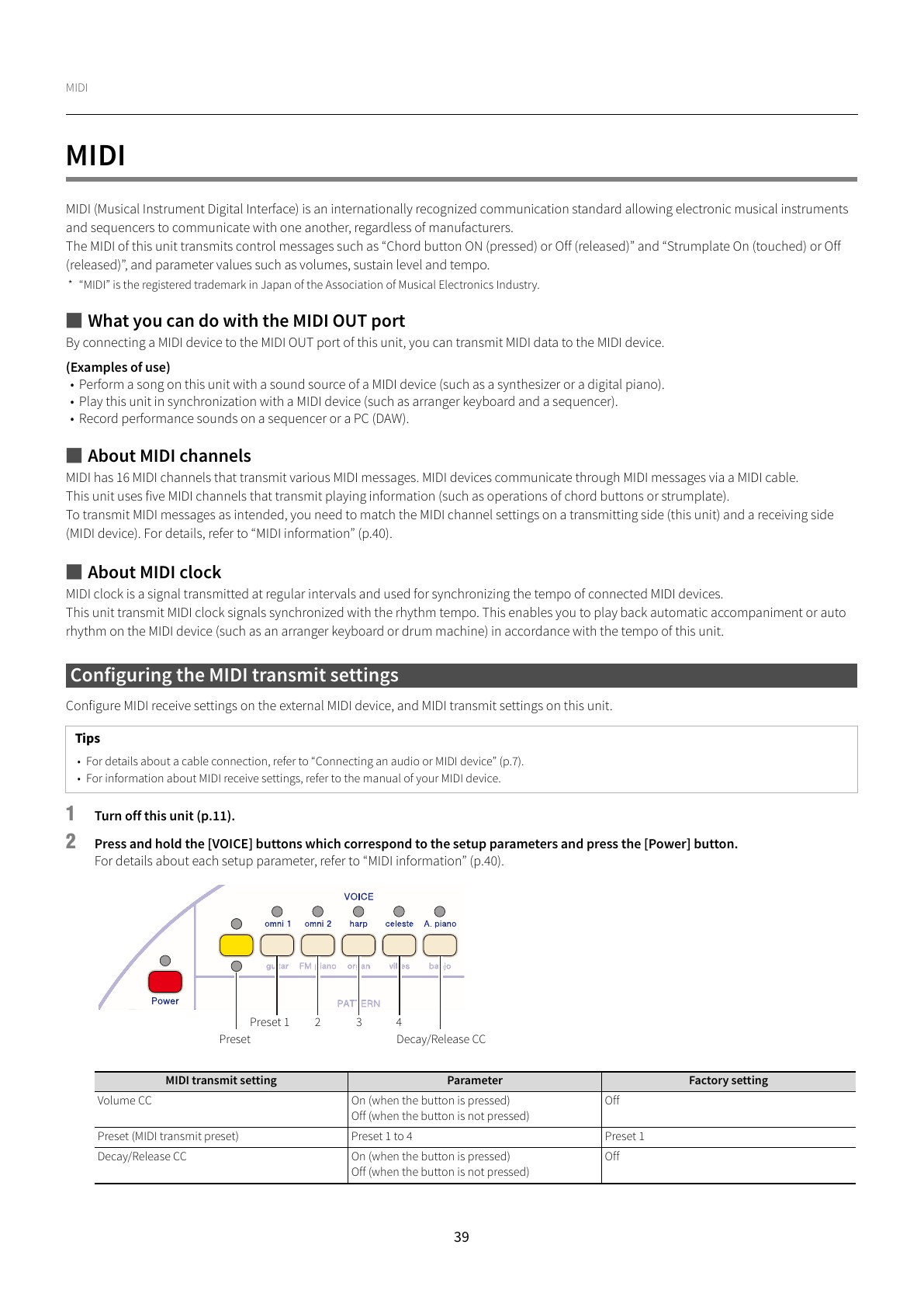

MIDI 39 MIDI MIDI (Musical Instrument Digital Interface) is an internationally recognized communication standard allowing electronic musical instruments and sequencers to communicate with one another, regardless of manufacturers. The MIDI of this unit transmits control messages such as “Chord button ON (pressed) or Off (released)” and “Strumplate On (touched) or Off (released)” , and parameter values such as volumes, sustain level and tempo. * “MIDI” is the registered trademark in Japan of the Association of Musical Electronics Industry. ■What you can do with the MIDI OUT port By connecting a MIDI device to the MIDI OUT port of this unit, you can transmit MIDI data to the MIDI device. (Examples of use) • Perform a song on this unit with a sound source of a MIDI device (such as a synthesizer or a digital piano). • Play this unit in synchronization with a MIDI device (such as arranger keyboard and a sequencer). • Record performance sounds on a sequencer or a PC (DAW). ■About MIDI channels MIDI has 16 MIDI channels that transmit various MIDI messages. MIDI devices communicate through MIDI messages via a MIDI cable. This unit uses five MIDI channels that transmit playing information (such as operations of chord buttons or strumplate). To transmit MIDI messages as intended, you need to match the MIDI channel settings on a transmitting side (this unit) and a receiving side (MIDI device). For details, refer to “MIDI information” (p.40). ■About MIDI clock MIDI clock is a signal transmitted at regular intervals and used for synchronizing the tempo of connected MIDI devices. This unit transmit MIDI clock signals synchronized with the rhythm tempo. This enables you to play back automatic accompaniment or auto rhythm on the MIDI device (such as an arranger keyboard or drum machine) in accordance with the tempo of this unit. Configuring the MIDI transmit settings Configure MIDI receive settings on the external MIDI device, and MIDI transmit settings on this unit. 1 Turn off this unit (p.11). 2 Press and hold the [VOICE] buttons which correspond to the setup parameters and press the [Power] button. For details about each setup parameter, refer to “MIDI information” (p.40). Tips • For details about a cable connection, refer to “Connecting an audio or MIDI device” (p.7). • For information about MIDI receive settings, refer to the manual of your MIDI device. MIDI transmit setting Parameter Factory setting Volume CC On (when the button is pressed) Off (when the button is not pressed) Off Preset (MIDI transmit preset) Preset 1 to 4 Preset 1 Decay/Release CC On (when the button is pressed) Off (when the button is not pressed) Off Preset Preset 1 2 3 4 Decay/Release CC

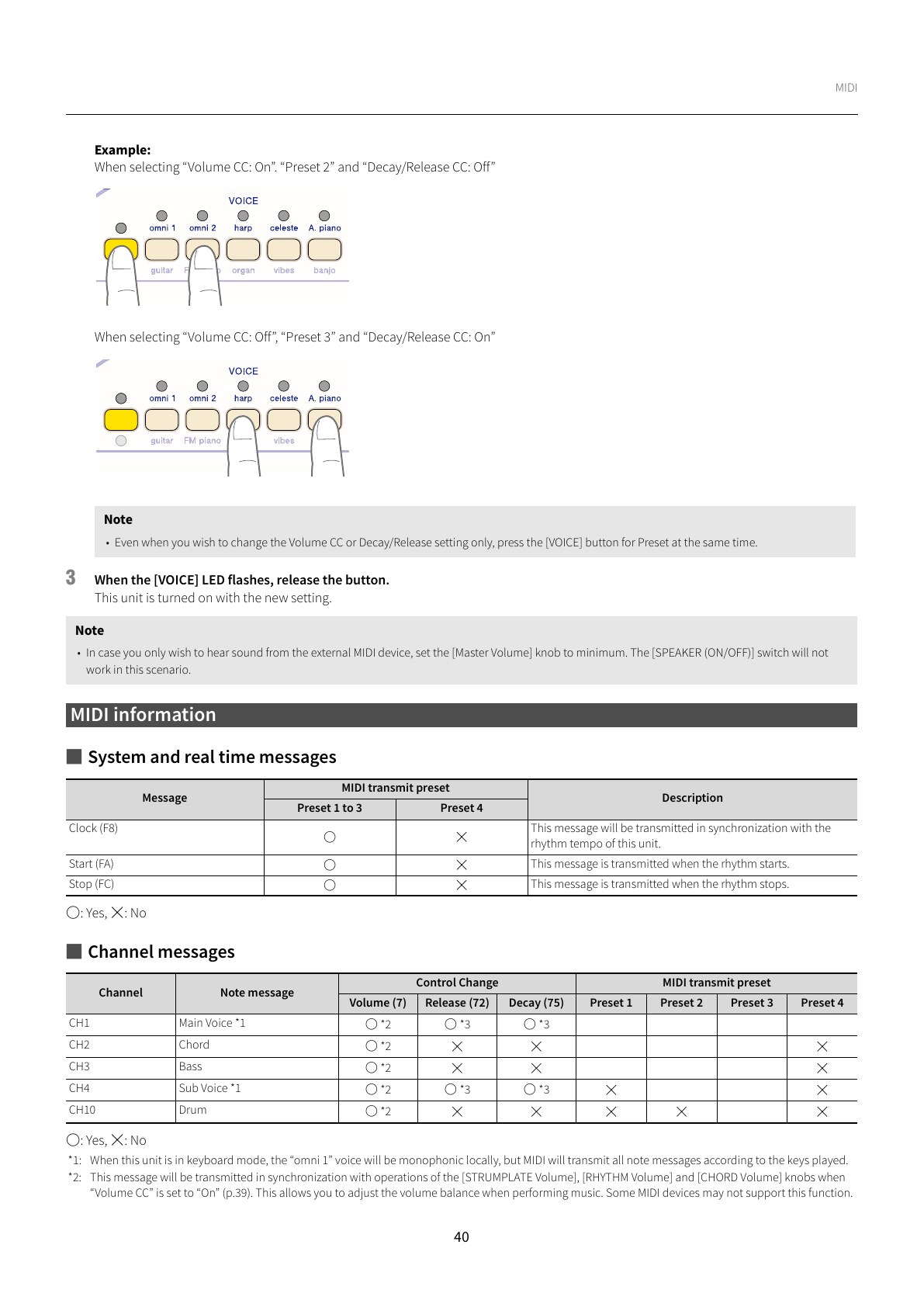

MIDI 40 Example: When selecting “Volume CC: On” . “Preset 2” and “Decay/Release CC: Off” When selecting “Volume CC: Off” , “Preset 3” and “Decay/Release CC: On” 3 When the [VOICE] LED flashes, release the button. This unit is turned on with the new setting. MIDI information ■System and real time messages O: Yes, X: No ■Channel messages O: Yes, X: No *1: When this unit is in keyboard mode, the “omni 1” voice will be monophonic locally, but MIDI will transmit all note messages according to the keys played. *2: This message will be transmitted in synchronization with oper ations of the [STRUMPLATE Volume], [RHYTHM Volume] and [CHORD Volume] knobs when “Volume CC” is set to “On” (p.39). This allows you to adjust the volume balance when performing music. Some MIDI devices may not support this function. Note • Even when you wish to change the Volume CC or Decay/Release setting only, press the [VOICE] button for Preset at the same time. Note • In case you only wish to hear sound from the external MIDI device, set the [Master Volume] knob to minimum. The [SPEAKER (ON/OFF)] switch will not work in this scenario. Message MIDI transmit preset Description Preset 1 to 3 Preset 4 Clock (F8) OX This message will be transmitted in synchronization with the rhythm tempo of this unit. Start (FA) OX This message is transmitted when the rhythm starts. Stop (FC) OX This message is transmitted when the rhythm stops. Channel Note message Control Change MIDI transmit preset Volume (7) Release (72) Decay (75) Preset 1 Preset 2 Preset 3 Preset 4 CH1 Main Voice *1 O *2 O *3 O *3 CH2 Chord O *2 XX X CH3 Bass O *2 XX X CH4 Sub Voice *1 O *2 O *3 O *3 XX CH10 Drum O *2 XX X X X

MIDI 41 *3: This message will be transmitted in synchronization with operat ions of the [STRUMPLATE Sustain] knob when “Decay/Release CC” is set to “On” (p.39). Some MIDI devices may not support this function. About Decay/Release CC ■MIDI transmit preset This unit uses five MIDI channels to transmit the note messages (control information of the main voice, chords, bass, sub voice and drums). By selecting a MIDI transmit preset in accordance with your purpose, this unit automatically controls how each note message is transmitted. Preset 1 (Accomp and Strumplate voice) • Transmit channels: CH1 to CH3 This preset transmits playing sounds of the strumplate (melody in keyboard mode), chords and bass to a multitimbral MIDI sound source. Example: Play the strumplate, chords and bass while beating out a rhythm pattern of the arranger keyboard in synchronization with MIDI clock of this unit. Preset 2 (Accomp and Two Strumplate voices) • Transmit channels: CH1 to CH4 This preset transmits playing sounds of the strumplate (melody in the keyboard mode), chords and bass to a multitimbral MIDI sound source. Since strum sounds are transmitted to both CH1 and CH4, you can assign a different voice to each channel to create various sound effects. Example: Play the strumplate (in two different voices), chords and bass while beating out a rhythm pattern of the arranger keyboard in synchronization with MIDI clock of this unit. Decay/Release CC Description On The Decay/Release CC value changes in response to [STRTUMPLATE Sustain] knob adjustments. This is effective when you play sound of an instrument whose sound fades-out, such as a piano or guitar. Since the gate time depends on touching/releasing the strumplate (or pressing/releasing a chord button in keyboard mode), you can express a finer musical nuance. Off You can adjust the time taken for a sound to stop after the sound starts. This is effective when you play sound of an instrument whose sound does not fade-out such as an organ or string voice. If the time is set on maximum, the gate time becomes infinite (the state of “note on” continues until you press another key or tap the Instant OFF plate). For an instrument whose sound fades-out such as piano or guitar, it prevents the sound from abruptly stopping. Tips • The gate time is a time from “note on” to “note off” , e.g., from the moment a key is pressed, until the key is released on a piano. Note • Set “MIDI clock” to “External” on the arranger keyboard. Tips • “Multitimbral” means the ability to play several different sounds at the same time, e.g., General MIDI. Each sound is controlled by a different MIDI channel. Note • Set “MIDI clock” to “External” on the arranger keyboard. Sound source Auto rhythm/ automatic accompaniment Arranger keyboard OM-108 Note: strumplate (CH1), chord, bass Clock

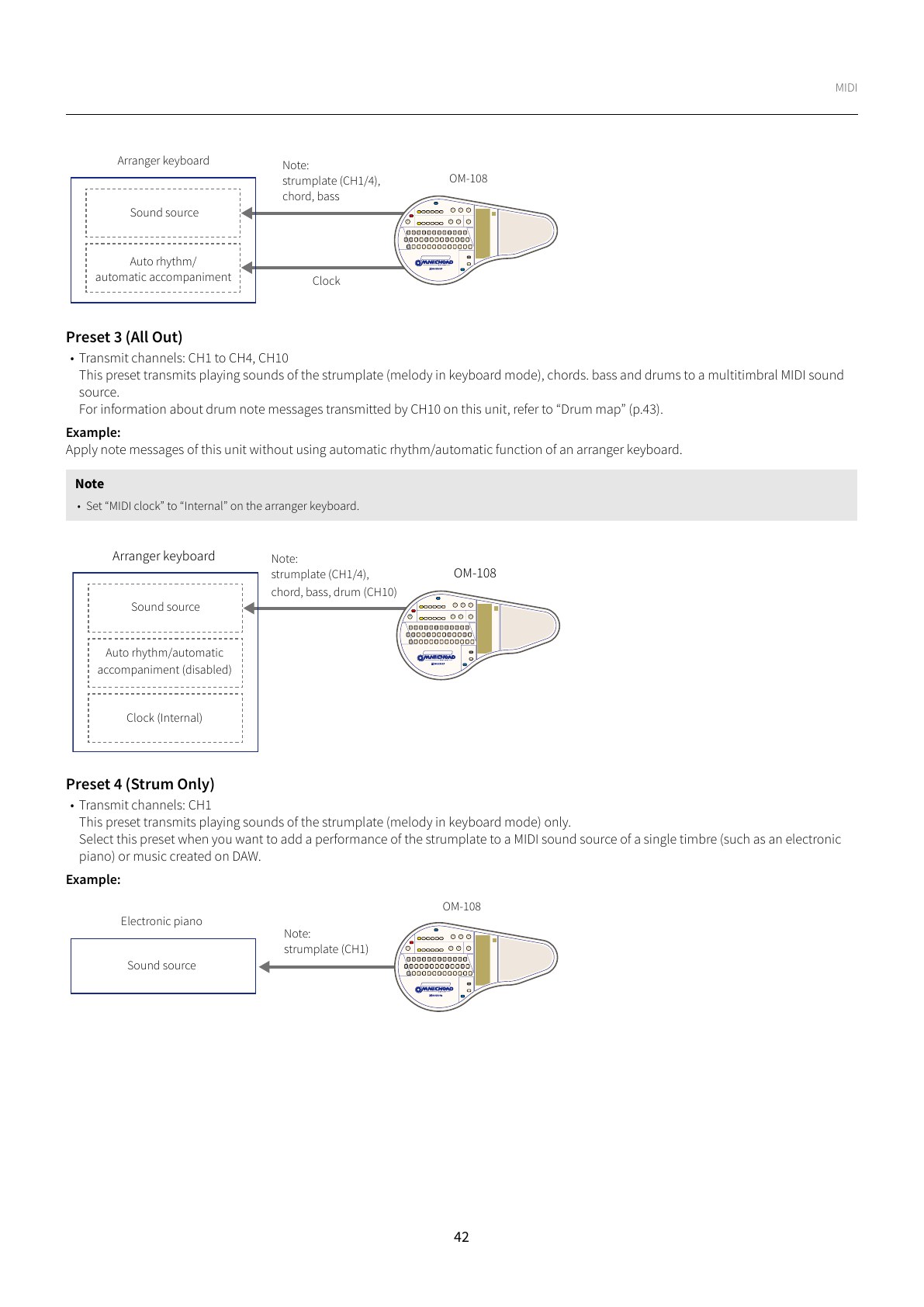

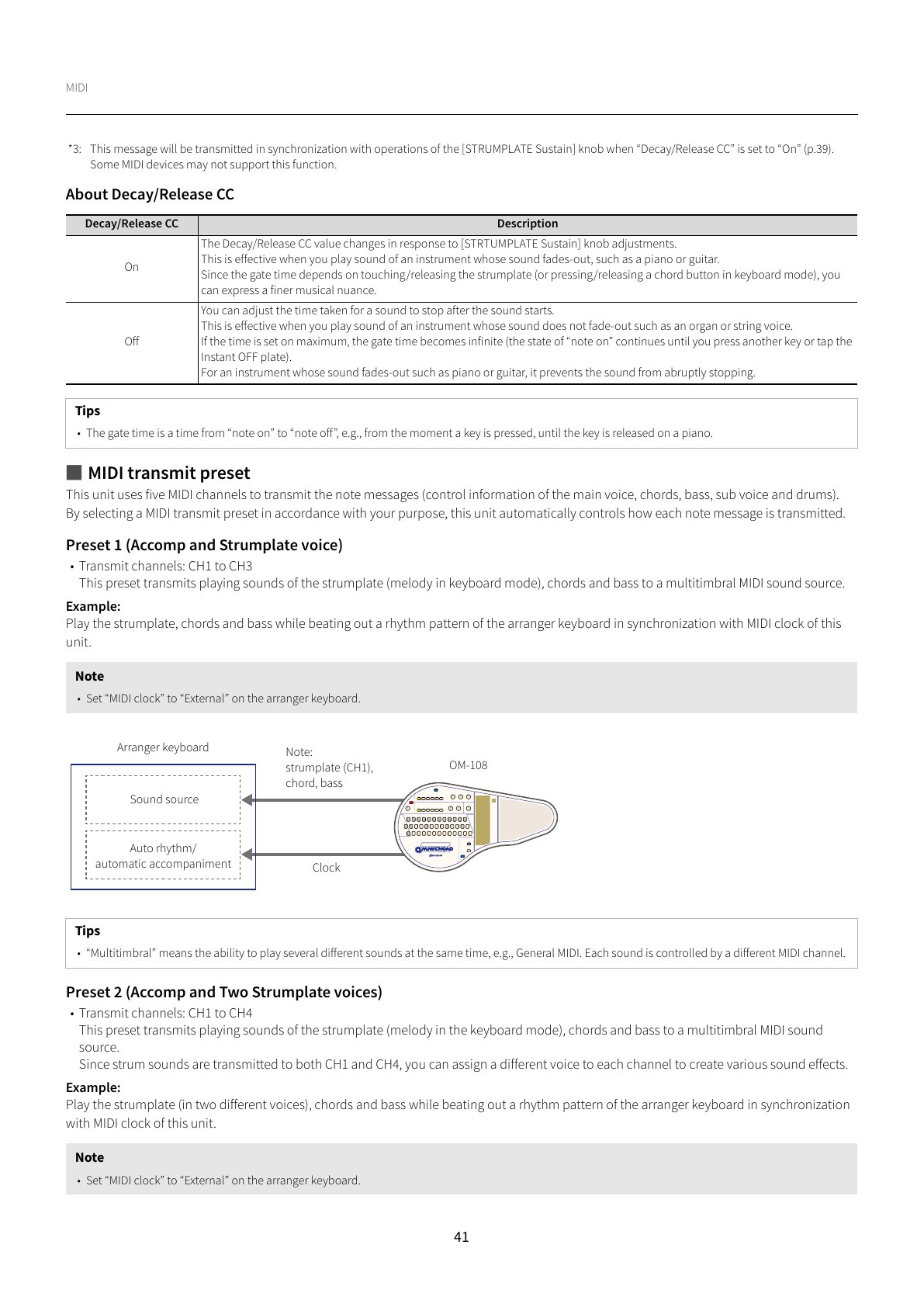

MIDI 42 Preset 3 (All Out) • Transmit channels: CH1 to CH4, CH10 This preset transmits playing sounds of the strumplate (melody in keyboard mode), chords. bass and drums to a multitimbral MIDI sound source. For information about drum note messages transmitted by CH10 on this unit, refer to “Drum map” (p.43). Example: Apply note messages of this unit without using automatic rhythm/automatic function of an arranger keyboard. Preset 4 (Strum Only) • Transmit channels: CH1 This preset transmits playing sounds of the strumplate (melody in keyboard mode) only. Select this preset when you want to add a performance of the strumplate to a MIDI sound source of a single timbre (such as an electronic piano) or music created on DAW. Example: Note • Set “MIDI clock” to “Internal” on the arranger keyboard. Sound source Auto rhythm/ automatic accompaniment Arranger keyboard OM-108 Note: strumplate (CH1/4), chord, bass Clock Sound source Auto rhythm/automatic accompaniment (disabled) Arranger keyboard OM-108 Note: strumplate (CH1/4), chord, bass, drum (CH10) Clock (Internal) Sound source Electronic piano OM-108 Note: strumplate (CH1)

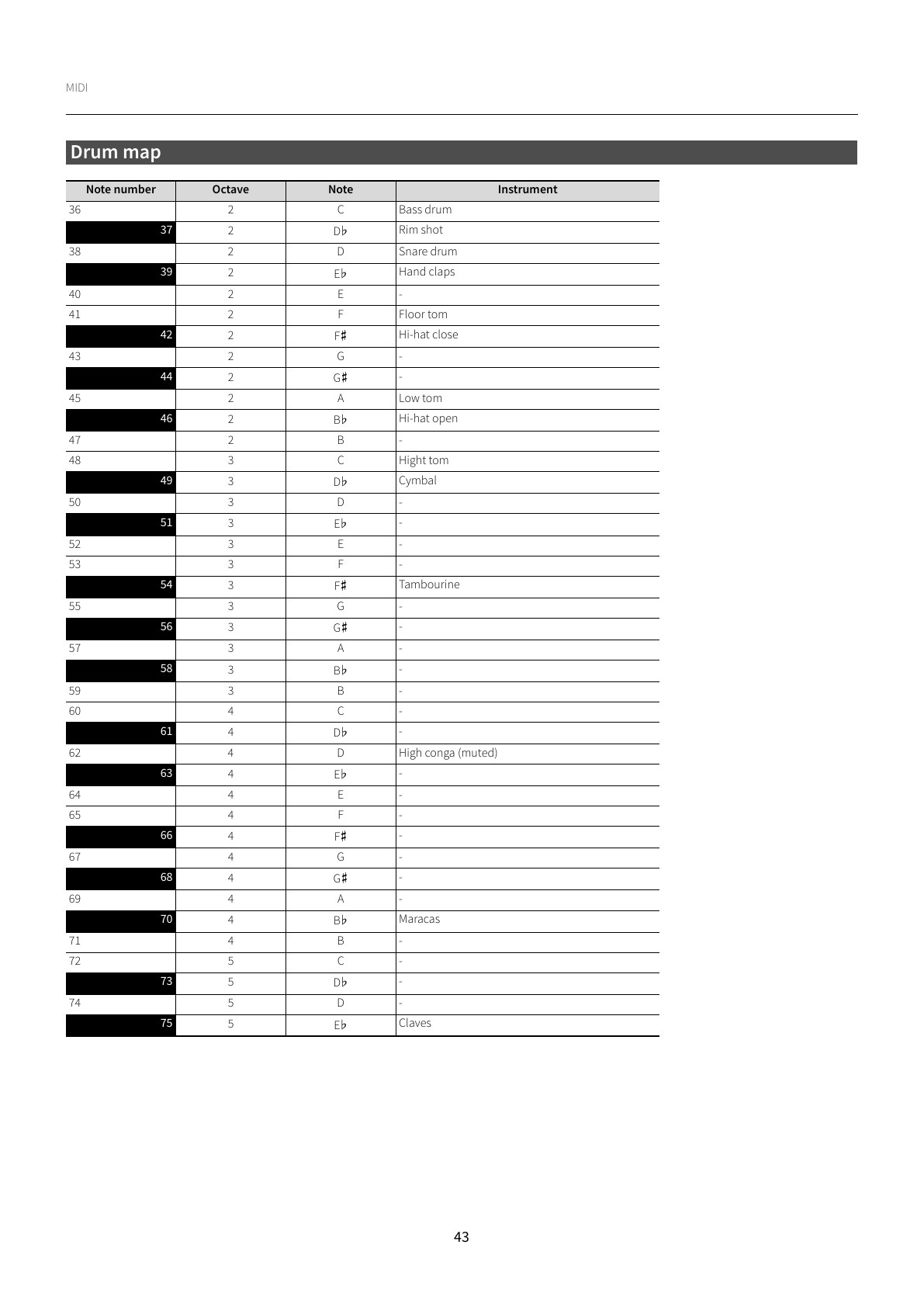

MIDI 43 Drum map Note number Octave Note Instrument 36 2 C Bass drum 37 2 Df Rim shot 38 2 D Snare drum 39 2 Ef Hand claps 40 2 E - 41 2 F Floor tom 42 2 Fs Hi-hat close 43 2 G - 44 2 Gs - 45 2 A Low tom 46 2 Bf Hi-hat open 47 2 B - 48 3 C Hight tom 49 3 Df Cymbal 50 3 D - 51 3 Ef - 52 3 E - 53 3 F - 54 3 Fs Tambourine 55 3 G - 56 3 Gs - 57 3 A - 58 3 Bf - 59 3 B - 60 4 C - 61 4 Df - 62 4 D High conga (muted) 63 4 Ef - 64 4 E - 65 4 F - 66 4 Fs - 67 4 G - 68 4 Gs - 69 4 A - 70 4 Bf Maracas 71 4 B - 72 5 C - 73 5 Df - 74 5 D - 75 5 Ef Claves

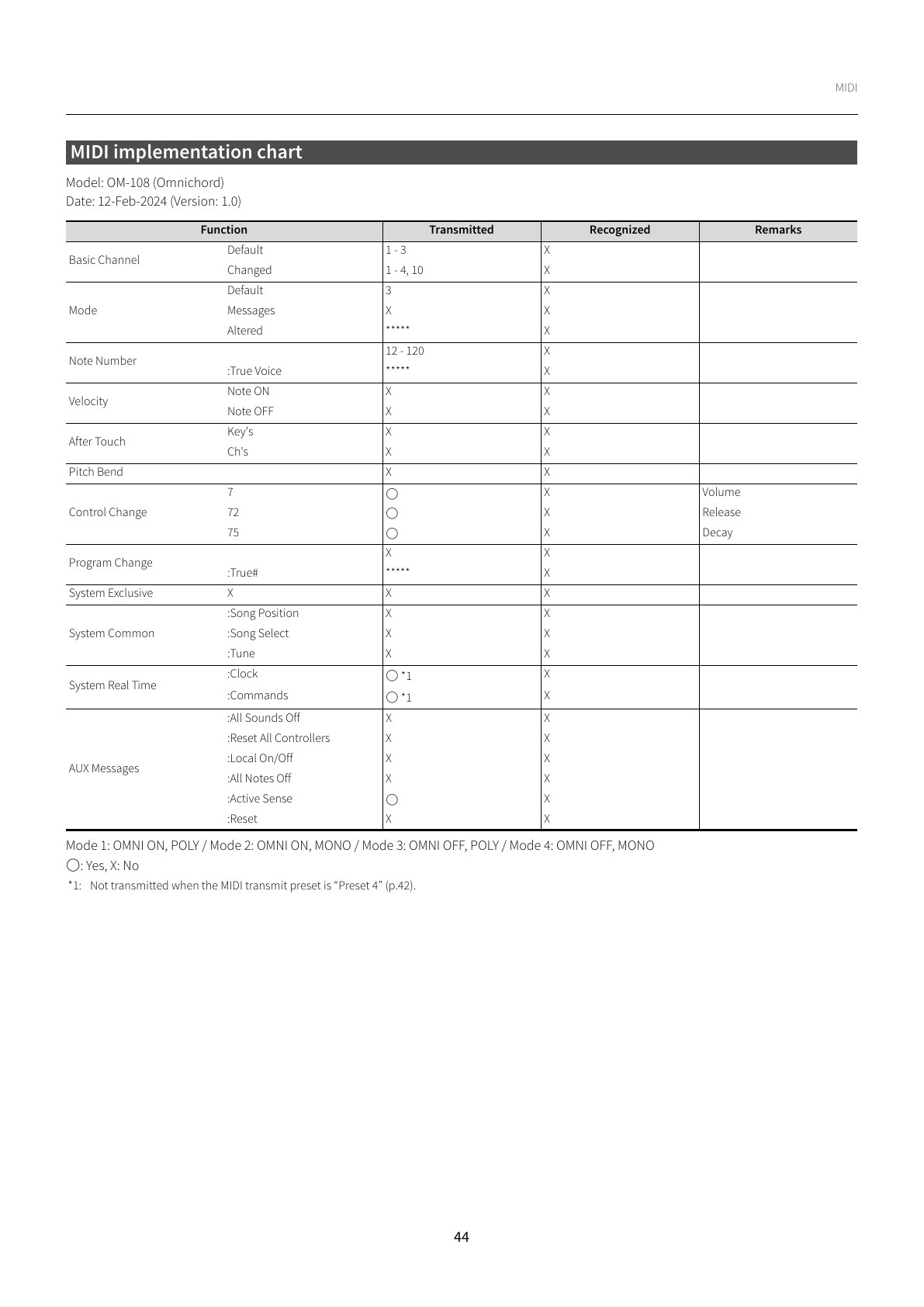

MIDI 44 MIDI implementation chart Model: OM-108 (Omnichord) Date: 12-Feb-2024 (Version: 1.0) Mode 1: OMNI ON, POLY / Mode 2: OMNI ON, MONO / Mode 3: OMNI OFF, POLY / Mode 4: OMNI OFF, MONO O: Yes, X: No *1: Not transmitted when the MIDI transmit preset is “Preset 4” (p.42). Function Transmitted Recognized Remarks Basic Channel Default 1 - 3 X Changed 1 - 4, 10 X Mode Default 3 X Messages X X Altered ***** X Note Number 12 - 120 X :True Voice ***** X Velocity Note ON X X Note OFF X X After Touch Key's X X Ch's X X Pitch Bend X X Control Change 7 O XV o l u m e 72 O XR e l e a s e 75 O XD e c a y Program Change XX :True# ***** X S y s t e m E x c l u s i v e XXX System Common :Song Position X X :Song Select X X :Tune X X System Real Time :Clock O *1 X :Commands O *1 X AUX Messages :All Sounds Off X X :Reset All Controllers X X :Local On/Off X X :All Notes Off X X :Active Sense O X :Reset X X

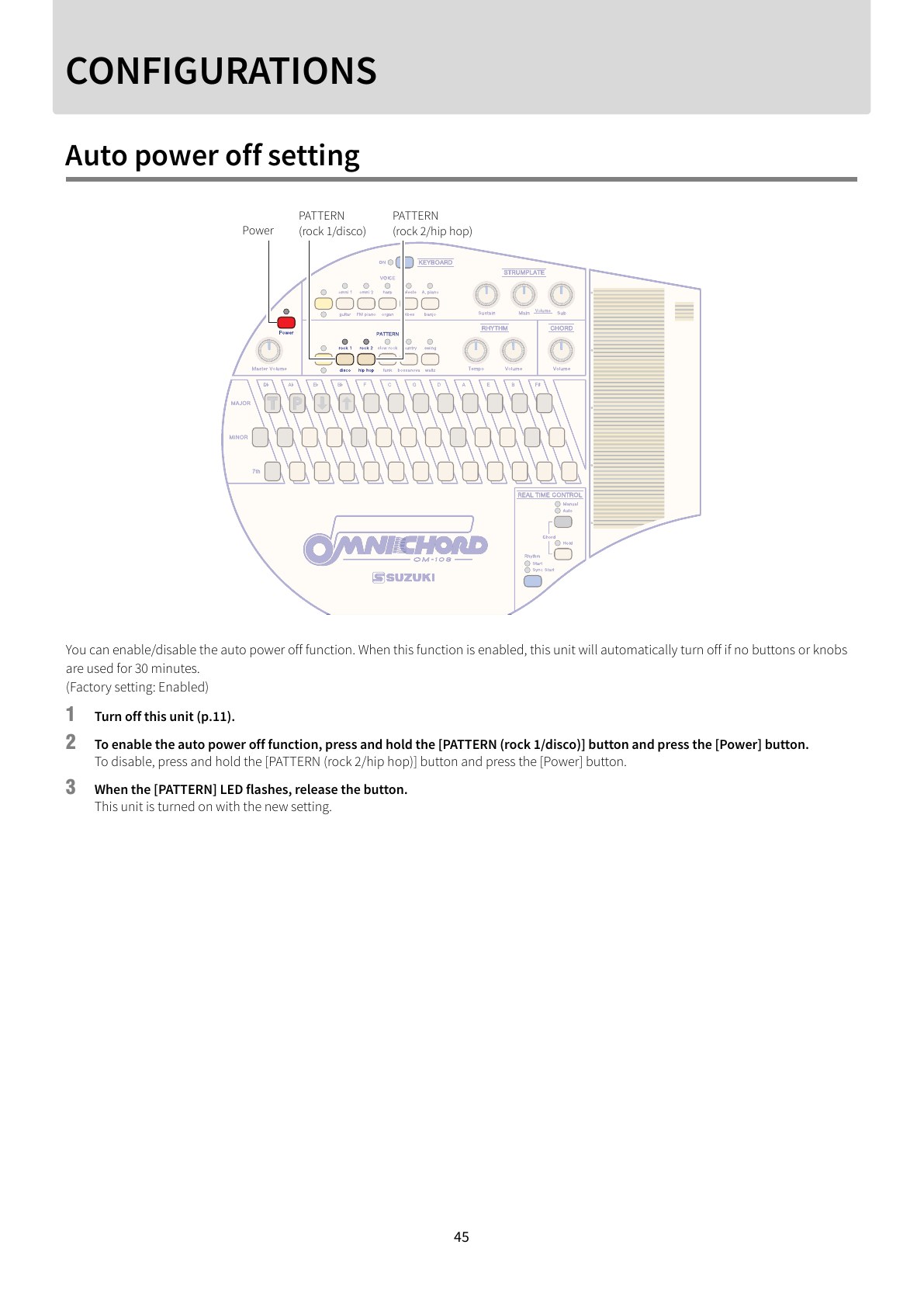

45 CONFIGURATIONS Auto power off setting You can enable/disable the auto power off function. When this function is enabled, this unit will automatically turn off if no buttons or knobs are used for 30 minutes. (Factory setting: Enabled) 1 Turn off this unit (p.11). 2 To enable the auto power off function, press and hold the [PATTERN (rock 1/disco)] button and press the [Power] button. To disable, press and hold the [PATTERN (rock 2/hip hop)] button and press the [Power] button. 3 When the [PATTERN] LED flashes, release the button. This unit is turned on with the new setting. PATTERN (rock 1/disco)Power PATTERN (rock 2/hip hop)

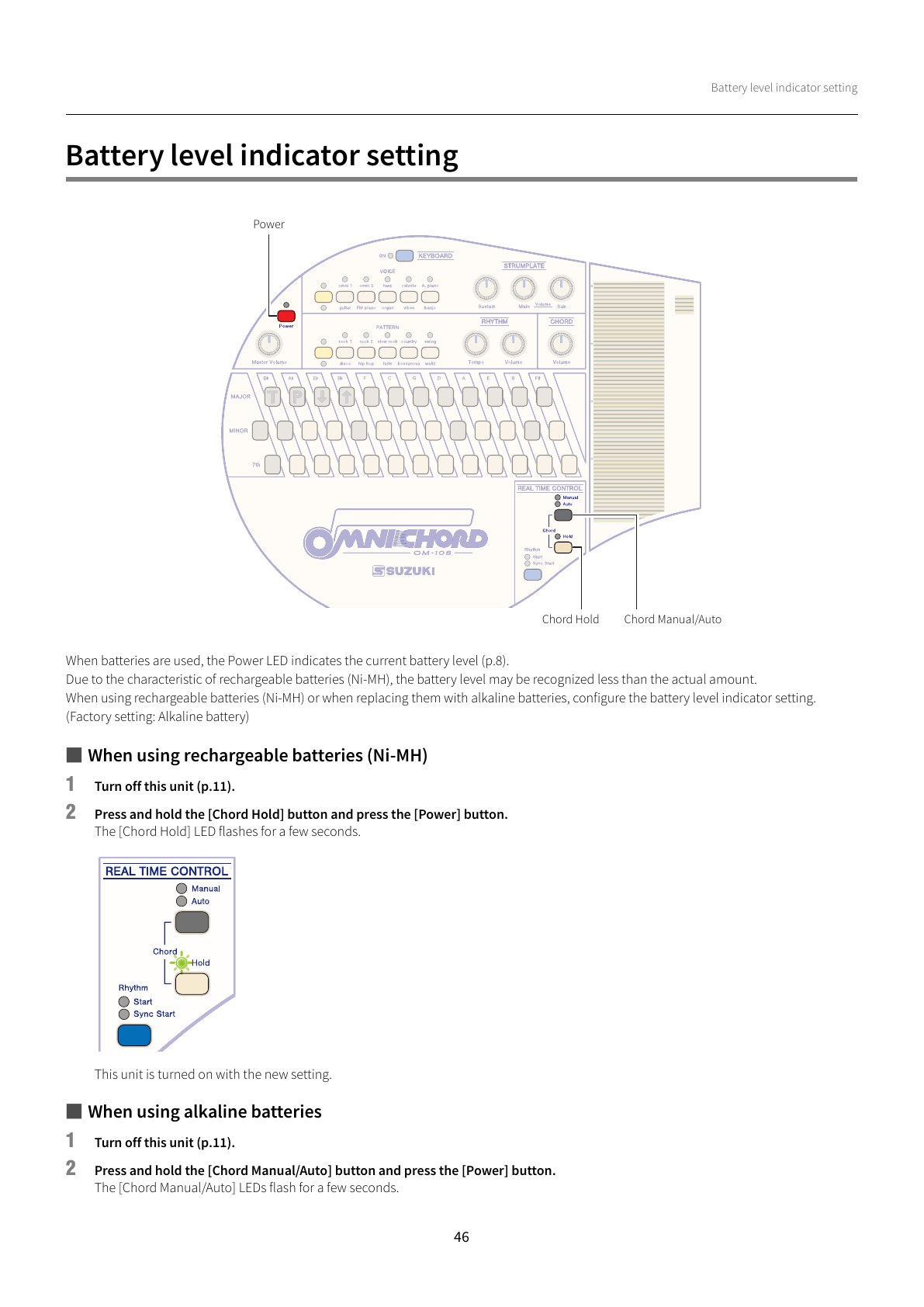

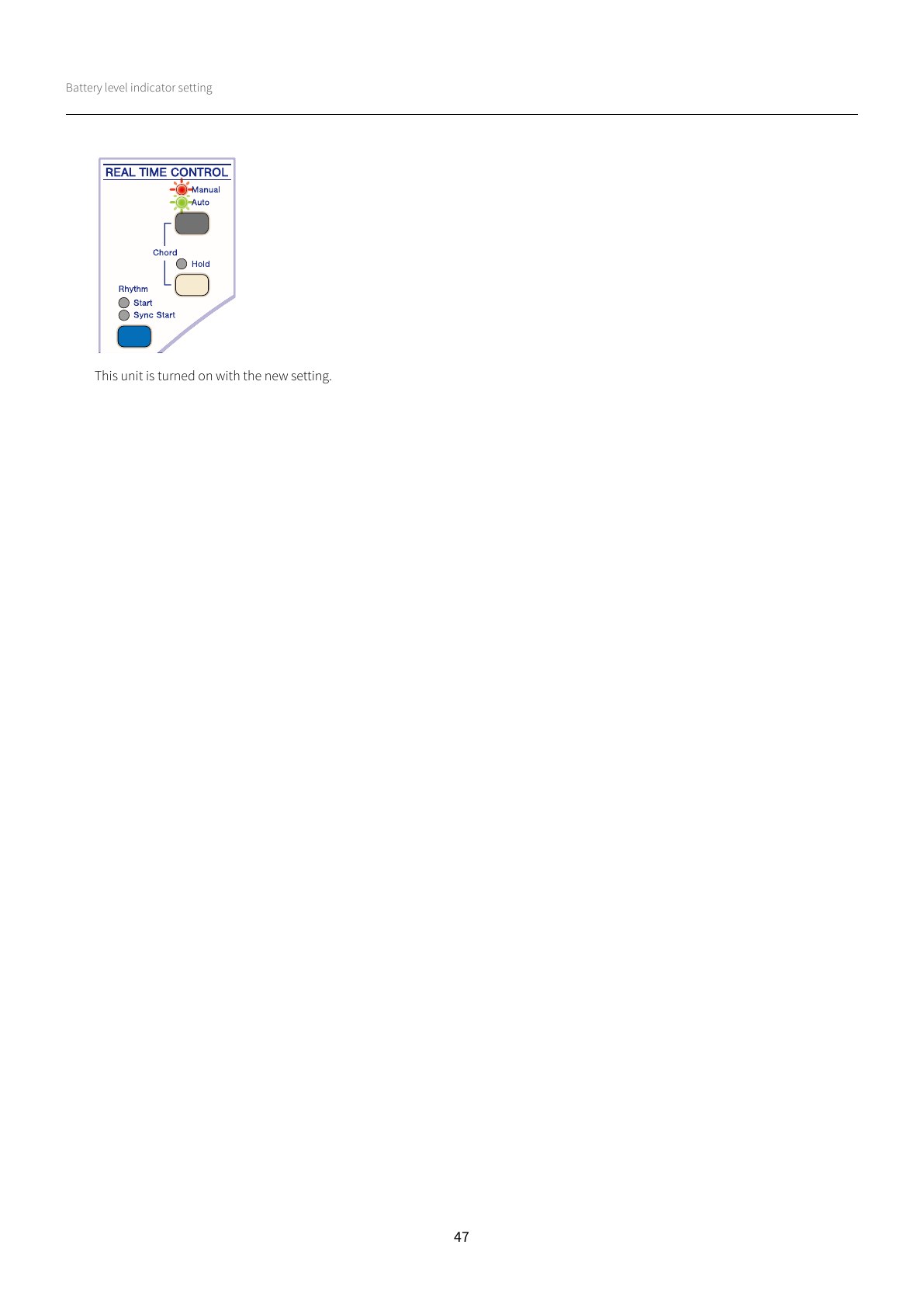

Battery level indicator setting 46 Battery level indicator setting When batteries are used, the Power LED indicates the current battery level (p.8). Due to the characteristic of rechargeable batteries (Ni-MH), the battery level may be recognized less than the actual amount. When using rechargeable batteries (Ni-MH) or when replacing them with alkaline batteries, configure the battery level indicator setting. (Factory setting: Alkaline battery) ■When using rechargeable batteries (Ni-MH) 1 Turn off this unit (p.11). 2 Press and hold the [Chord Hold] button and press the [Power] button. The [Chord Hold] LED flashes for a few seconds. This unit is turned on with the new setting. ■When using alkaline batteries 1 Turn off this unit (p.11). 2 Press and hold the [Chord Manual/Auto] button and press the [Power] button. The [Chord Manual/Auto] LEDs flash for a few seconds. Power Chord Hold Chord Manual/Auto

Battery level indicator setting 47 This unit is turned on with the new setting.

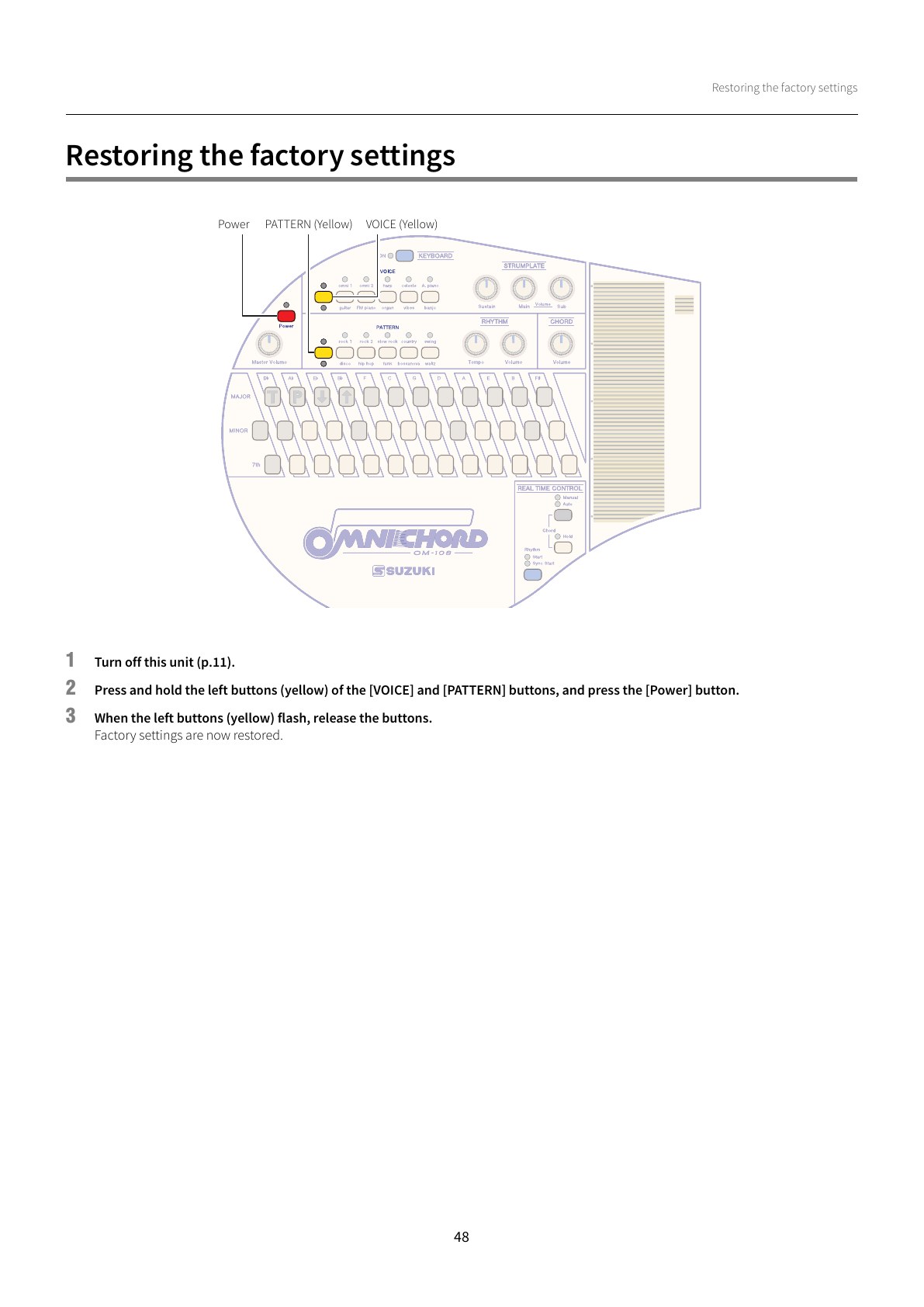

Restoring the factory settings 48 Restoring the factory settings 1 Turn off this unit (p.11). 2 Press and hold the left buttons (yellow) of the [VOICE] and [PATTERN] buttons, and press the [Power] button. 3 When the left buttons (yellow) flash, release the buttons. Factory settings are now restored. Power PATTERN (Yellow) VOICE (Yellow)

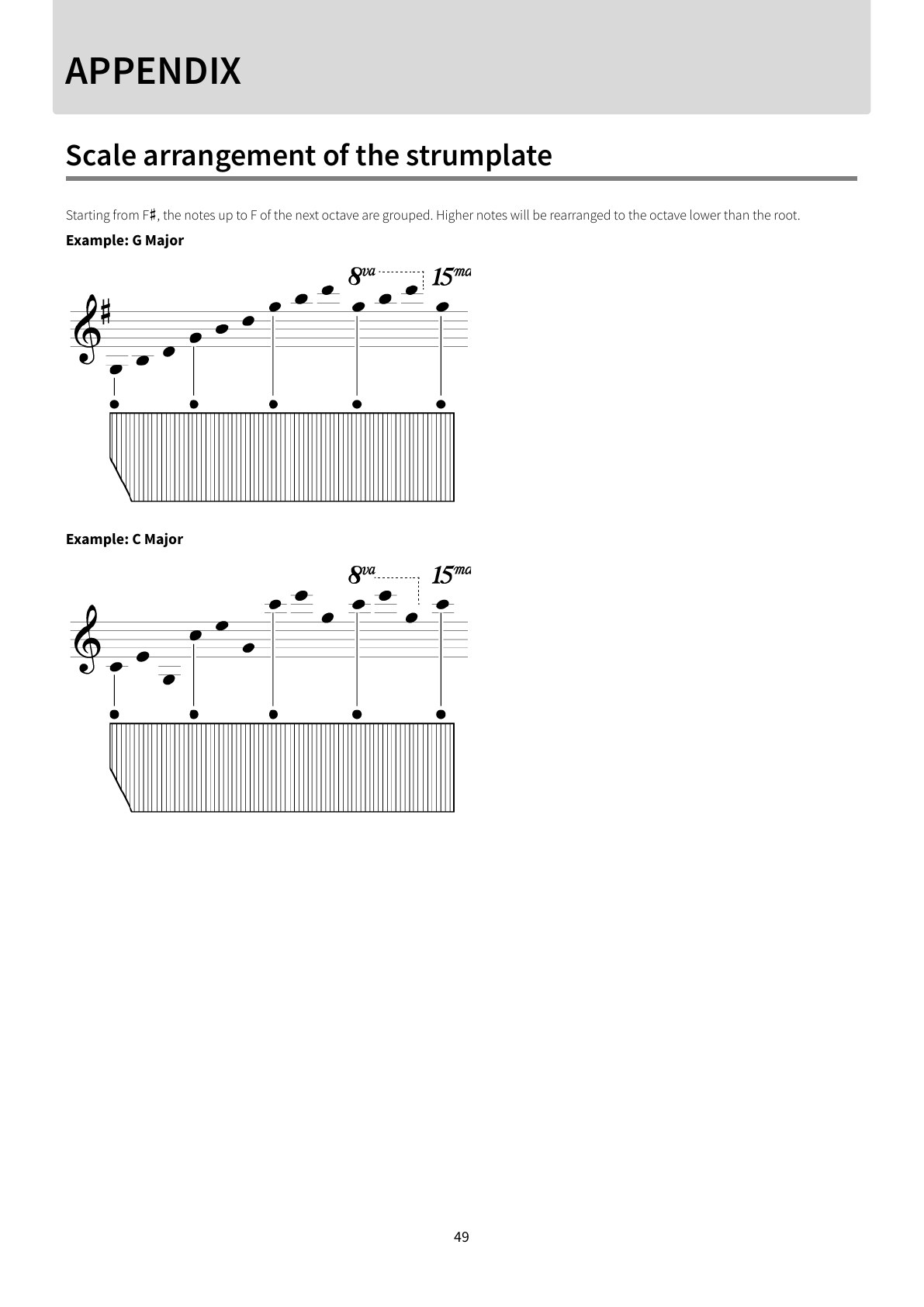

49 APPENDIX Scale arrangement of the strumplate Starting from Fs, the notes up to F of the next octave are grouped. Higher notes will be rearranged to the octave lower than the root. Example: G Major Example: C Major

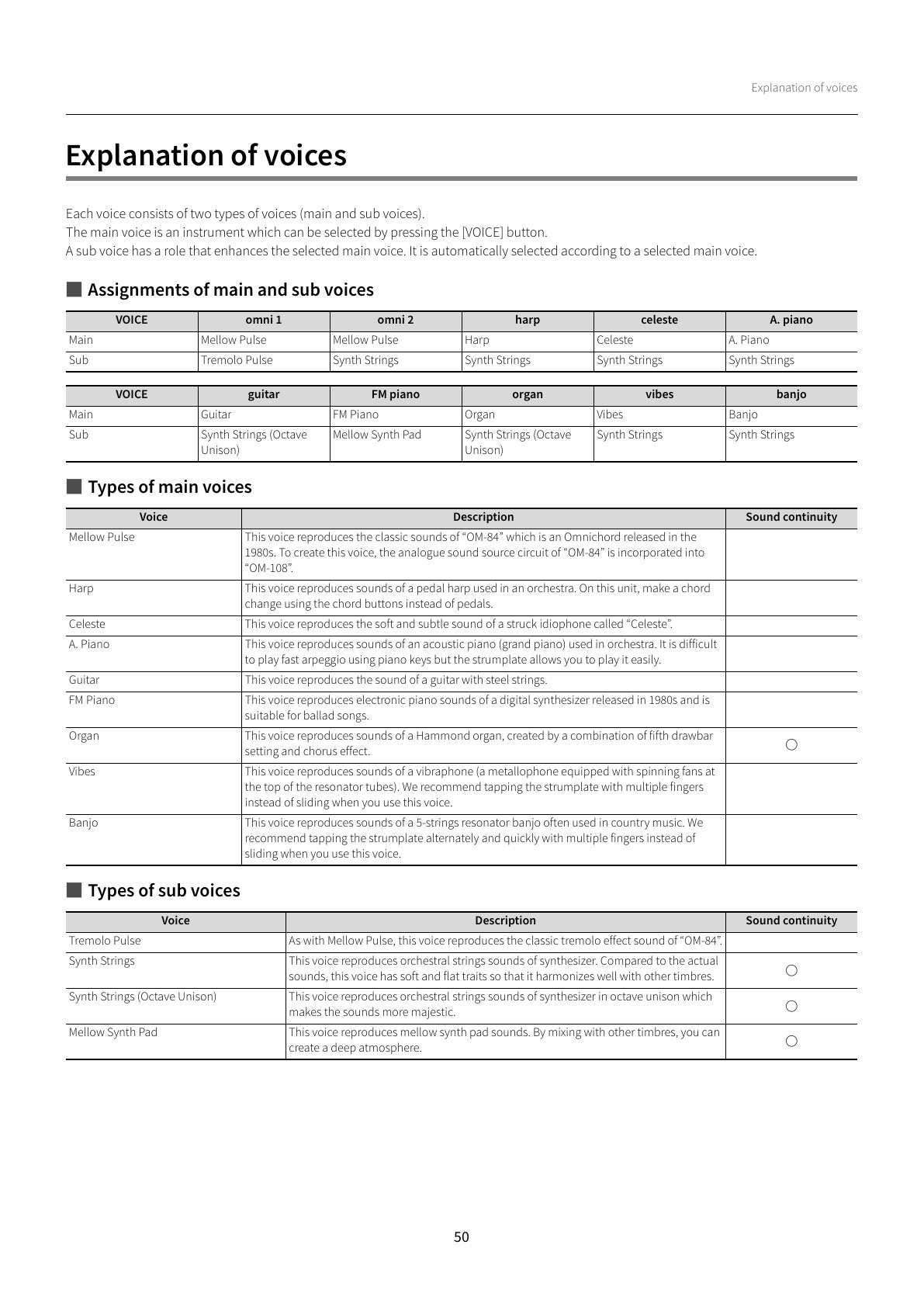

Explanation of voices 50 Explanation of voices Each voice consists of two types of voices (main and sub voices). The main voice is an instrument which can be selected by pressing the [VOICE] button. A sub voice has a role that enhances the selected main voice. It is automatically selected according to a selected main voice. ■Assignments of main and sub voices ■Types of main voices ■Types of sub voices VOICE omni 1 omni 2 harp celeste A. piano Main Mellow Pulse Mellow Pulse Harp Celeste A. Piano Sub Tremolo Pulse Synth Strings Synth Strings Synth Strings Synth Strings VOICE guitar FM piano organ vibes banjo Main Guitar FM Piano Organ Vibes Banjo Sub Synth Strings (Octave Unison) Mellow Synth Pad Synth Strings (Octave Unison) Synth Strings Synth Strings Voice Description Sound continuity Mellow Pulse This voice reproduces the classic sounds of “OM-84” which is an Omnichord released in the 1980s. To create this voice, the analogue sound source circuit of “OM-84” is incorporated into “OM-108” . Harp This voice reproduces sounds of a pedal harp used in an orchestra. On this unit, make a chord change using the chord buttons instead of pedals. Celeste This voice reproduces the soft and subtle sound of a struck idiophone called “Celeste” . A. Piano This voice reproduces sounds of an acoustic piano (grand piano) used in orchestra. It is difficult to play fast arpeggio using piano keys but the strumplate allows you to play it easily. Guitar This voice reproduces the sound of a guitar with steel strings. FM Piano This voice reproduces electronic piano sounds of a digital synthesizer released in 1980s and is suitable for ballad songs. Organ This voice reproduces sounds of a Hammond organ, created by a combination of fifth drawbar setting and chorus effect. O Vibes This voice reproduces sounds of a vibraphone (a metallophone equipped with spinning fans at the top of the resonator tubes). We recommend tapping the strumplate with multiple fingers instead of sliding when you use this voice. Banjo This voice reproduces sounds of a 5-strings resonator banjo often used in country music. We recommend tapping the strumplate alternately and quickly with multiple fingers instead of sliding when you use this voice. Voice Description Sound continuity Tremolo Pulse As with Mellow Pulse, this voice reproduces the classic tremolo effect sound of “OM-84” . Synth Strings This voice reproduces orchestral string s sounds of synthesizer. Compared to the actual sounds, this voice has soft and flat traits so that it harmonizes well with other timbres. O Synth Strings (Octave Unison) This voice reproduces orchestral strings sounds of synthesizer in octave unison which makes the sounds more majestic. O Mellow Synth Pad This voice reproduces mellow synth pad sounds. By mixing with other timbres, you can create a deep atmosphere. O

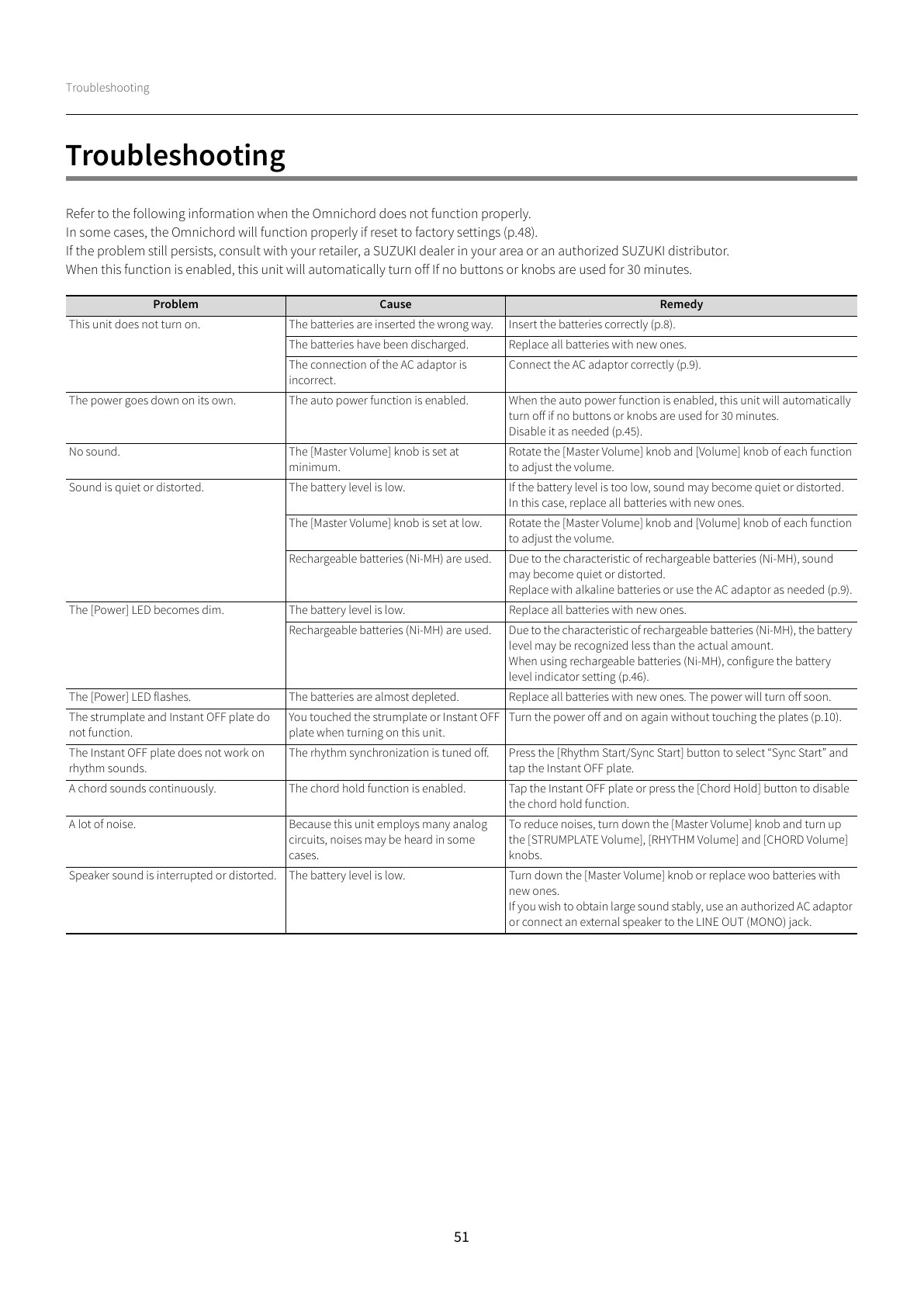

Troubleshooting 51 Troubleshooting Refer to the following information when the Omnichord does not function properly. In some cases, the Omnichord will function properly if reset to factory settings (p.48). If the problem still persists, consult with your retailer, a SUZUKI dealer in your area or an authorized SUZUKI distributor. When this function is enabled, this unit will automatically turn off If no buttons or knobs are used for 30 minutes. Problem Cause Remedy This unit does not turn on. The batteries are inserted the wrong way. Insert the batteries correctly (p.8). The batteries have been discharged. Replace all batteries with new ones. The connection of the AC adaptor is incorrect. Connect the AC adaptor correctly (p.9). The power goes down on its own. The auto power function is enabled. When the auto power function is enabled, this unit will automatically turn off if no buttons or knobs are used for 30 minutes. Disable it as needed (p.45). No sound. The [Master Volume] knob is set at minimum. Rotate the [Master Volume] knob and [Volume] knob of each function to adjust the volume. Sound is quiet or distorted. The battery level is low. If the battery level is too low, sound may become quiet or distorted. In this case, replace all batteries with new ones. The [Master Volume] knob is set at low. Rotate the [Master Volume] knob and [Volume] knob of each function to adjust the volume. Rechargeable batteries (Ni-MH) are used. Due to the char acteristic of rechargeable batteries (Ni-MH), sound may become quiet or distorted. Replace with alkaline batteries or use the AC adaptor as needed (p.9). The [Power] LED becomes dim. The battery level is low. Replace all batteries with new ones. Rechargeable batteries (Ni-MH) are used. Due to the characteristic of rechargeable batteries (Ni-MH), the battery level may be recognized less than the actual amount. When using rechargeable batteries (Ni-MH), configure the battery level indicator setting (p.46). The [Power] LED flashes. The batteries are almost depleted. Replace all batteries with new ones. The power will turn off soon. The strumplate and Instant OFF plate do not function. You touched the strumplate or Instant OFF plate when turning on this unit. Turn the power off and on again without touching the plates (p.10). The Instant OFF plate does not work on rhythm sounds. The rhythm synchronization is tuned off. Press the [Rhythm Start/Sync Start] button to select “Sync Start” and tap the Instant OFF plate. A chord sounds continuously. The chord hold function is enabled. Tap the Instant OFF plate or press the [Chord Hold] button to di sable the chord hold function. A lot of noise. Because this unit employs many analog circuits, noises may be heard in some cases. To reduce noises, turn down the [Master Volume] knob and turn up the [STRUMPLATE Volume], [RHYTHM Volume] and [CHORD Volume] knobs. Speaker sound is interrupted or distorted. The battery level is low. Turn down the [Master Volume] knob or replace woo batteries with new ones. If you wish to obtain large sound stably, use an authorized AC adaptor or connect an external speaker to the LINE OUT (MONO) jack.

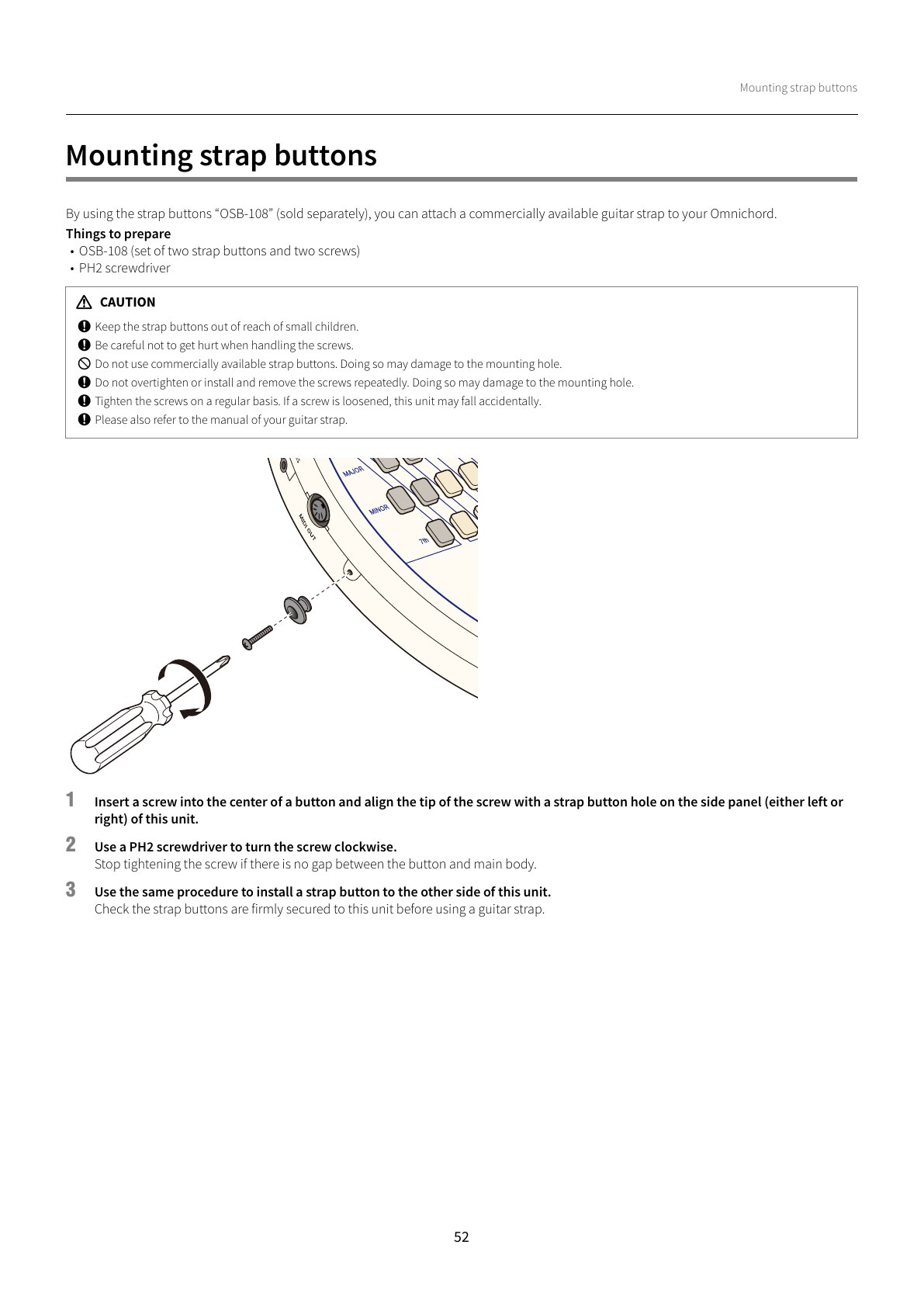

Mounting strap buttons 52 Mounting strap buttons By using the strap buttons “OSB-108” (sold separately), you can attach a commercially available guitar strap to your Omnichord. Things to prepare • OSB-108 (set of two strap buttons and two screws) • PH2 screwdriver 1 Insert a screw into the center of a button and align the tip of the screw with a strap button hole on the side panel (either left or right) of this unit. 2 Use a PH2 screwdriver to turn the screw clockwise. Stop tightening the screw if there is no gap between the button and main body. 3 Use the same procedure to install a strap button to the other side of this unit. Check the strap buttons are firmly secured to this unit before using a guitar strap. ! CAUTION " Keep the strap buttons out of reach of small children. " Be careful not to get hurt when handling the screws. # Do not use commercially available strap buttons. Doing so may damage to the mounting hole. " Do not overtighten or install and remove the screws repeatedly. Doing so may damage to the mounting hole. " Tighten the screws on a regular basis. If a screw is loosened, this unit may fall accidentally. " Please also refer to the manual of your guitar strap.

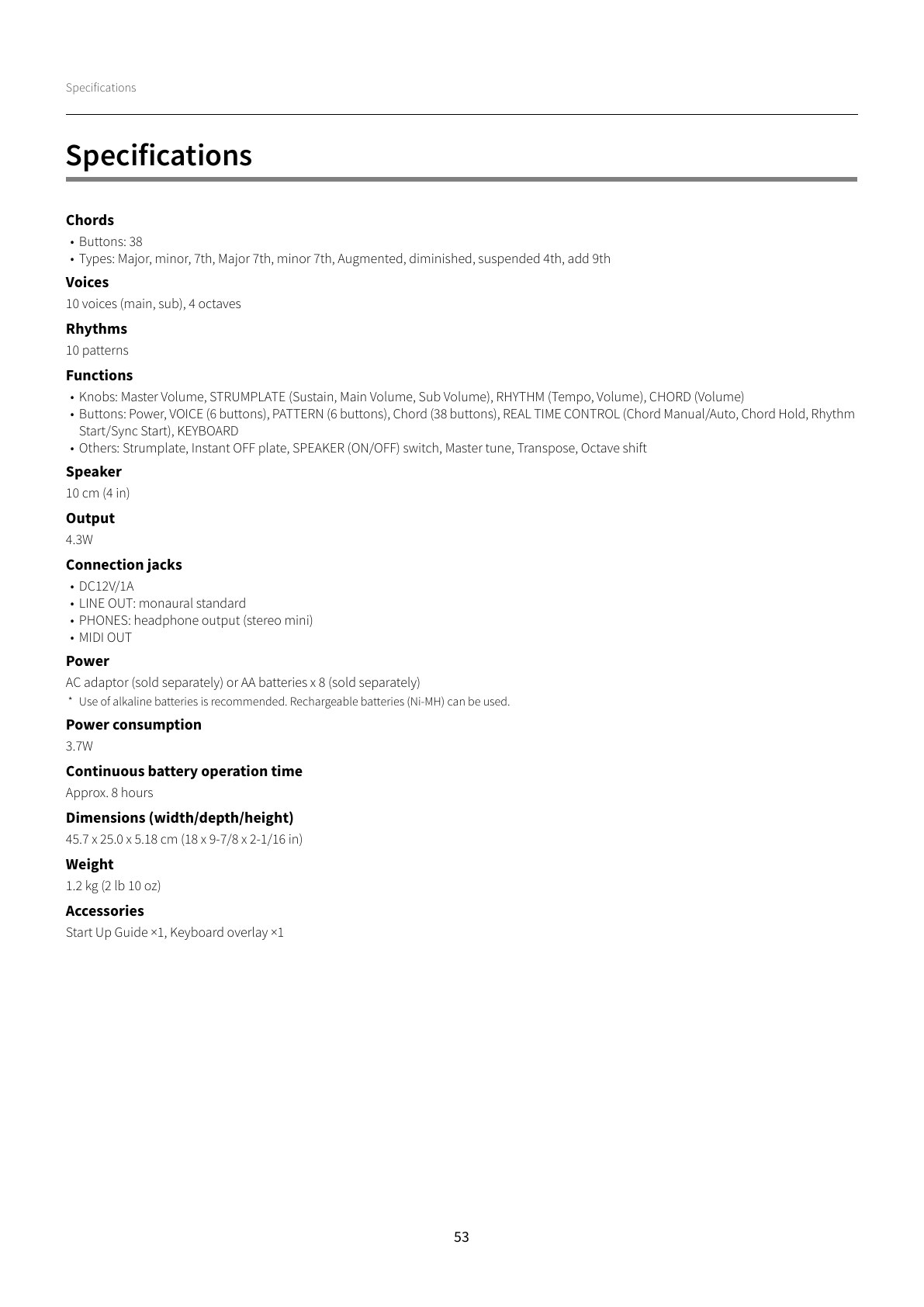

Specifications 53 Specifications Chords • Buttons: 38 • Types: Major, minor, 7th, Major 7th, minor 7th, Augmented, diminished, suspended 4th, add 9th Voices 10 voices (main, sub), 4 octaves Rhythms 10 patterns Functions • Knobs: Master Volume, STRUMPLATE (Sustain, Main Volume, Sub Volume), RHYTHM (Tempo, Volume), CHORD (Volume) • Buttons: Power, VOICE (6 buttons), PATTERN (6 buttons), Chord (38 buttons), REAL TIME CONTROL (Chord Manual/Auto, Chord Hold, Rhythm Start/Sync Start), KEYBOARD • Others: Strumplate, Instant OFF plate, SPEAKER (ON/OFF) switch, Master tune, Transpose, Octave shift Speaker 10 cm (4 in) Output 4.3W Connection jacks • DC12V/1A • LINE OUT: monaural standard • PHONES: headphone output (stereo mini) • MIDI OUT Power AC adaptor (sold separately) or AA batteries x 8 (sold separately) * Use of alkaline batteries is recommended. Rechargeable batteries (Ni-MH) can be used. Power consumption 3.7W Continuous battery operation time Approx. 8 hours Dimensions (width/depth/height) 45.7 x 25.0 x 5.18 cm (18 x 9-7/8 x 2-1/16 in) Weight 1.2 kg (2 lb 10 oz) Accessories Start Up Guide ×1, Keyboard overlay ×1

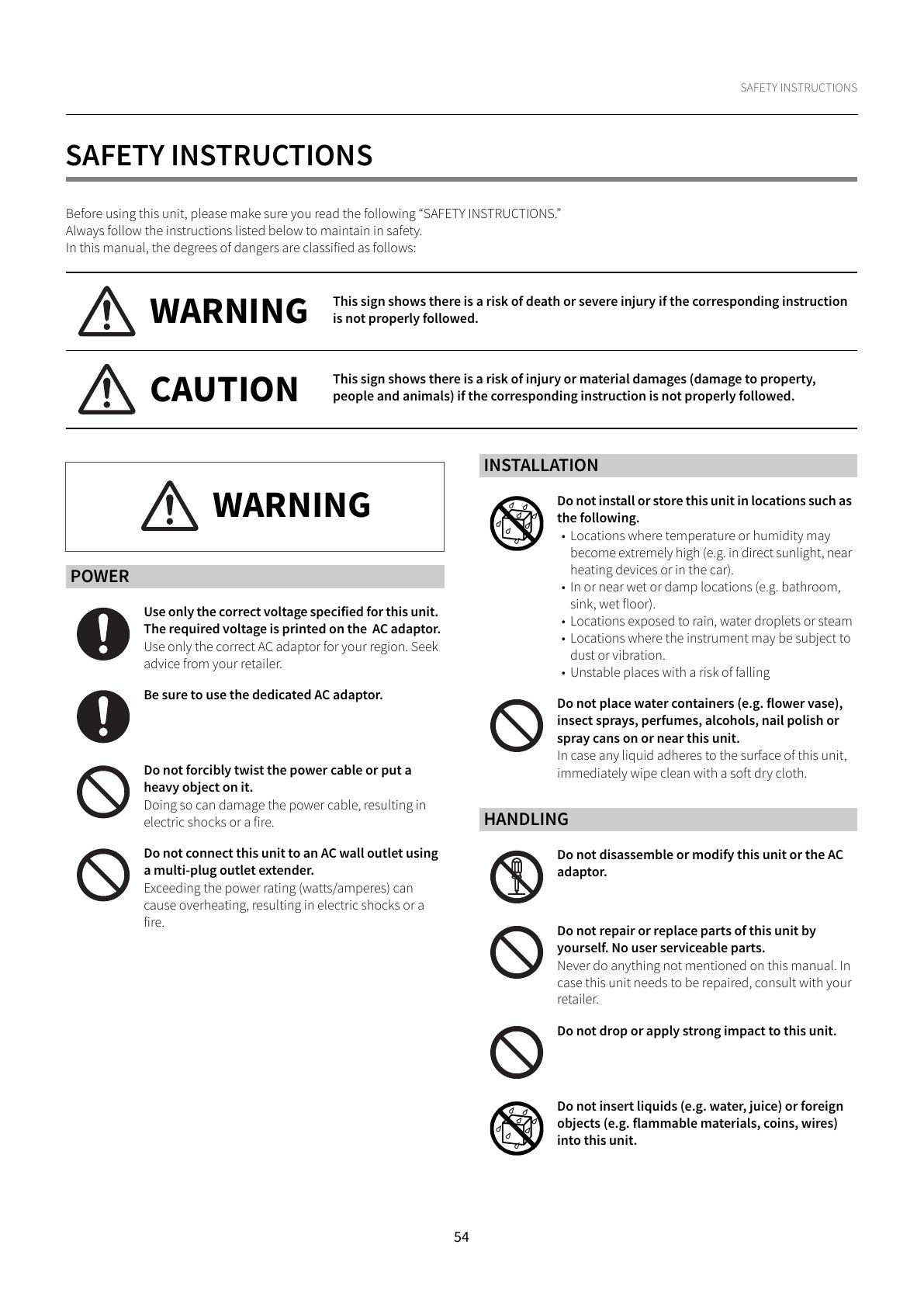

SAFETY INSTRUCTIONS 54 SAFETY INSTRUCTIONS Before using this unit, please make sure you read the following “SAFETY INSTRUCTIONS.” Always follow the instructions listed below to maintain in safety. In this manual, the degrees of dangers are classified as follows: POWER INSTALLATION HANDLING This sign shows there is a risk of death or severe injury if the corresponding instruction is not properly followed. This sign shows there is a risk of injury or material damages (damage to property, people and animals) if the corresponding instruction is not properly followed. WARNING CAUTION Use only the correct voltage specified for this unit. The required voltage is printed on the AC adaptor. Use only the correct AC adaptor for your region. Seek advice from your retailer. Be sure to use the dedicated AC adaptor. Do not forcibly twist the power cable or put a heavy object on it. Doing so can damage the power cable, resulting in electric shocks or a fire. Do not connect this unit to an AC wall outlet using a multi-plug outlet extender. Exceeding the power rating (watts/amperes) can cause overheating, resulting in electric shocks or a fire. WARNING Do not install or store this unit in locations such as the following. • Locations where temperature or humidity may become extremely high (e.g. in direct sunlight, near heating devices or in the car). • In or near wet or damp locations (e.g. bathroom, sink, wet floor). • Locations exposed to rain, water droplets or steam • Locations where the instrument may be subject to dust or vibration. • Unstable places with a risk of falling Do not place water containers (e.g. flower vase), insect sprays, perfumes, alcohols, nail polish or spray cans on or near this unit. In case any liquid adheres to the surface of this unit, immediately wipe clean with a soft dry cloth. Do not disassemble or modify this unit or the AC adaptor. Do not repair or replace parts of this unit by yourself. No user serviceable parts. Never do anything not mentioned on this manual. In case this unit needs to be repaired, consult with your retailer. Do not drop or apply strong impact to this unit. Do not insert liquids (e.g. water, juice) or foreign objects (e.g. flammable materials, coins, wires) into this unit.

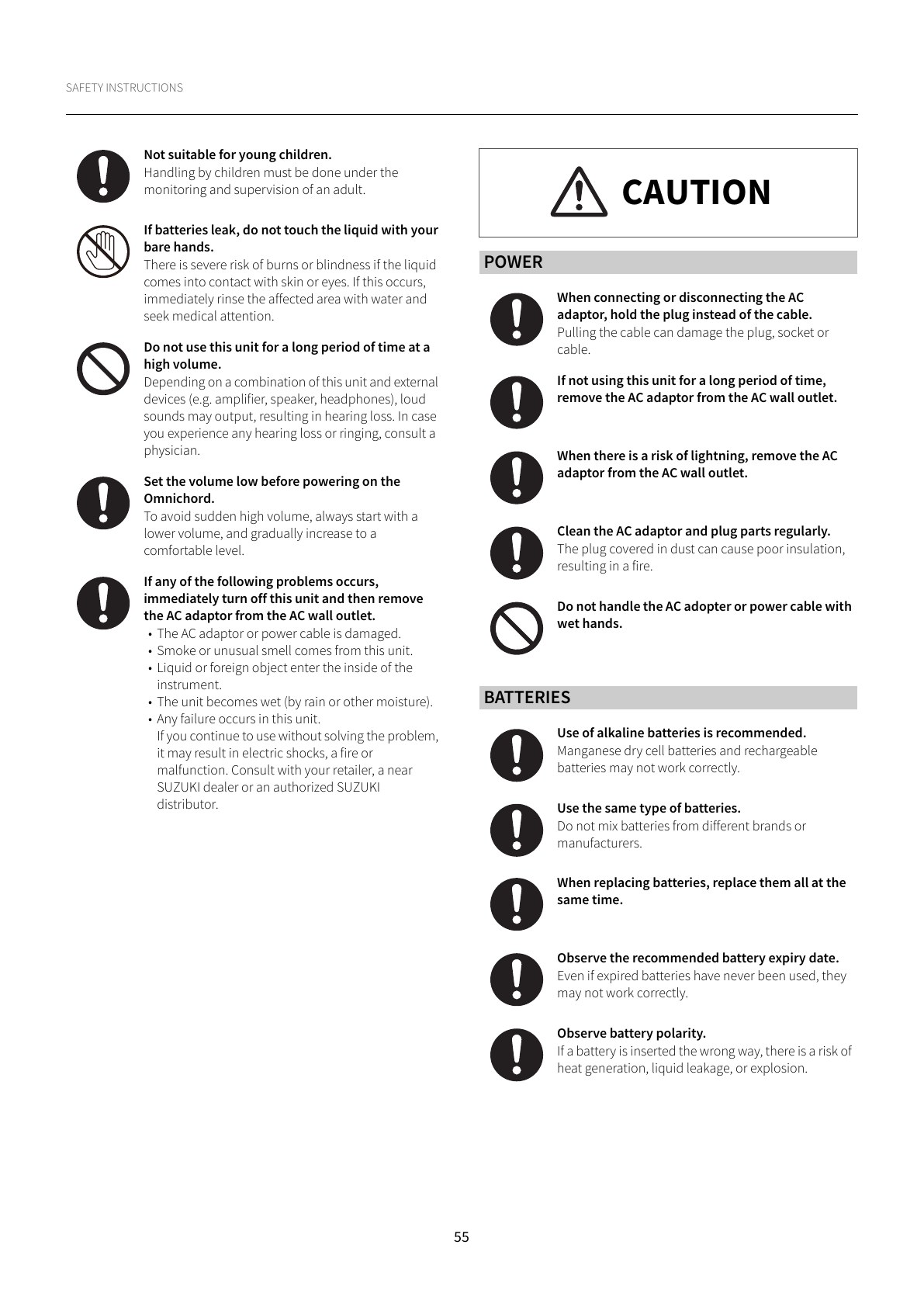

SAFETY INSTRUCTIONS 55 POWER BATTERIES Not suitable for young children. Handling by children must be done under the monitoring and supervision of an adult. If batteries leak, do not touch the liquid with your bare hands. There is severe risk of burns or blindness if the liquid comes into contact with skin or eyes. If this occurs, immediately rinse the affected area with water and seek medical attention. Do not use this unit for a long period of time at a high volume. Depending on a combination of this unit and external devices (e.g. amplifier, speaker, headphones), loud sounds may output, resulting in hearing loss. In case you experience any hearing loss or ringing, consult a physician. Set the volume low before powering on the Omnichord. To avoid sudden high volume, always start with a lower volume, and gradually increase to a comfortable level. If any of the following problems occurs, immediately turn off this unit and then remove the AC adaptor from the AC wall outlet. • The AC adaptor or power cable is damaged. • Smoke or unusual smell comes from this unit. • Liquid or foreign object enter the inside of the instrument. • The unit becomes wet (by rain or other moisture). • Any failure occurs in this unit. If you continue to use without solving the problem, it may result in electric shocks, a fire or malfunction. Consult with your retailer, a near SUZUKI dealer or an authorized SUZUKI distributor. When connecting or disconnecting the AC adaptor, hold the plug instead of the cable. Pulling the cable can damage the plug, socket or cable. If not using this unit for a long period of time, remove the AC adaptor from the AC wall outlet. When there is a risk of lightning, remove the AC adaptor from the AC wall outlet. Clean the AC adaptor and plug parts regularly. The plug covered in dust can cause poor insulation, resulting in a fire. Do not handle the AC adopter or power cable with wet hands. Use of alkaline batteries is recommended. Manganese dry cell batteries and rechargeable batteries may not work correctly. Use the same type of batteries. Do not mix batteries from different brands or manufacturers. When replacing batteries, replace them all at the same time. Observe the recommended battery expiry date. Even if expired batteries have never been used, they may not work correctly. Observe battery polarity. If a battery is inserted the wrong way, there is a risk of heat generation, liquid leakage, or explosion. CAUTION

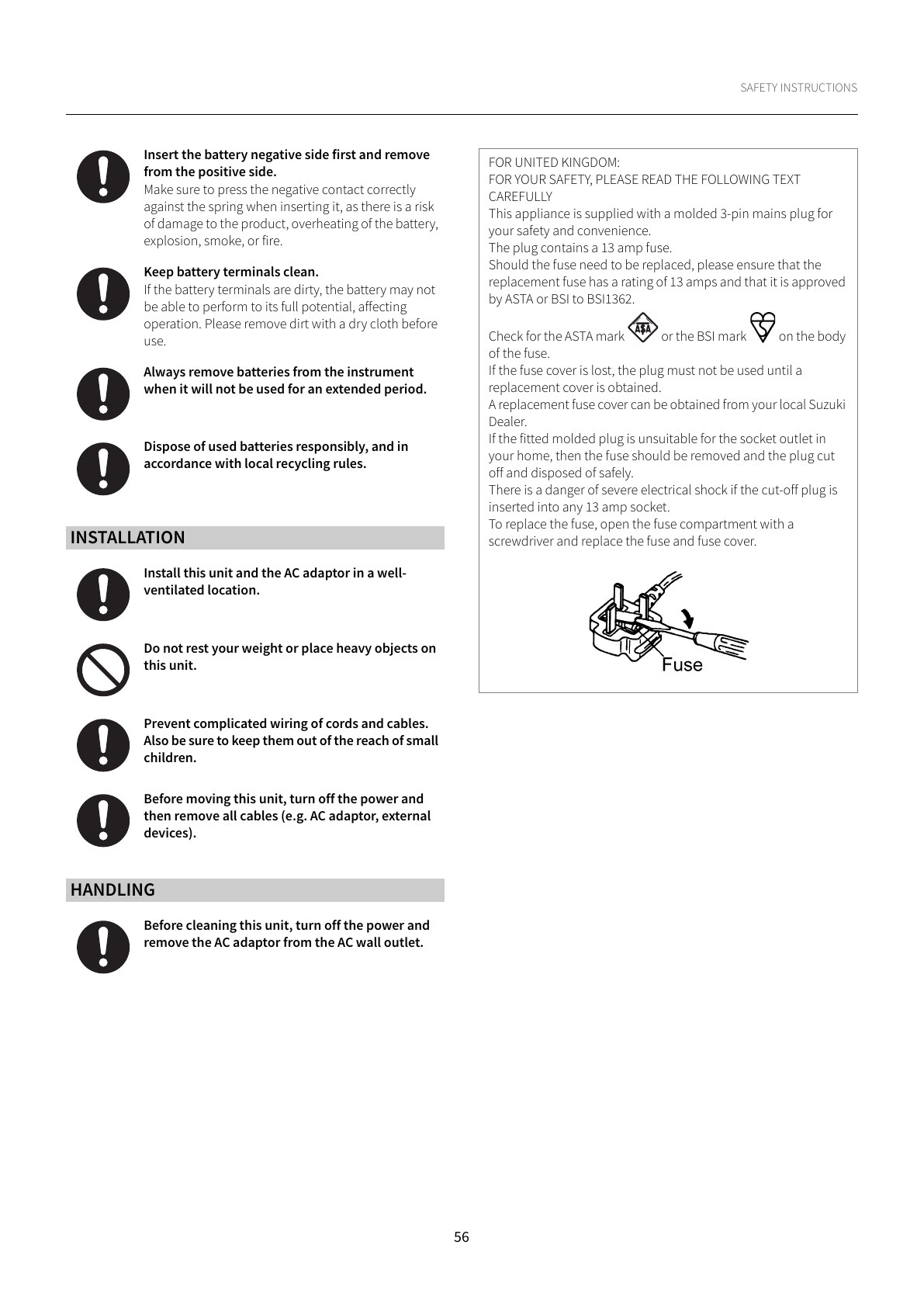

SAFETY INSTRUCTIONS 56 INSTALLATION HANDLING Insert the battery negative side first and remove from the positive side. Make sure to press the negative contact correctly against the spring when inserting it, as there is a risk of damage to the product, overheating of the battery, explosion, smoke, or fire. Keep battery terminals clean. If the battery terminals are dirty, the battery may not be able to perform to its full potential, affecting operation. Please remove dirt with a dry cloth before use. Always remove batteries from the instrument when it will not be used for an extended period. Dispose of used batteries responsibly, and in accordance with local recycling rules. Install this unit and the AC adaptor in a well- ventilated location. Do not rest your weight or place heavy objects on this unit. Prevent complicated wiring of cords and cables. Also be sure to keep them out of the reach of small children. Before moving this unit, turn off the power and then remove all cables (e.g. AC adaptor, external devices). Before cleaning this unit, turn off the power and remove the AC adaptor from the AC wall outlet. FOR UNITED KINGDOM: FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY This appliance is supplied with a molded 3-pin mains plug for your safety and convenience. The plug contains a 13 amp fuse. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 13 amps and that it is approved by ASTA or BSI to BSI1362. Check for the ASTA mark or the BSI mark on the body of the fuse. If the fuse cover is lost, the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be obtained from your local Suzuki Dealer. If the fitted molded plug is unsuitable for the socket outlet in your home, then the fuse should be removed and the plug cut off and disposed of safely. There is a danger of severe electrical shock if the cut-off plug is inserted into any 13 amp socket. To replace the fuse, open the fuse compartment with a screwdriver and replace the fuse and fuse cover.

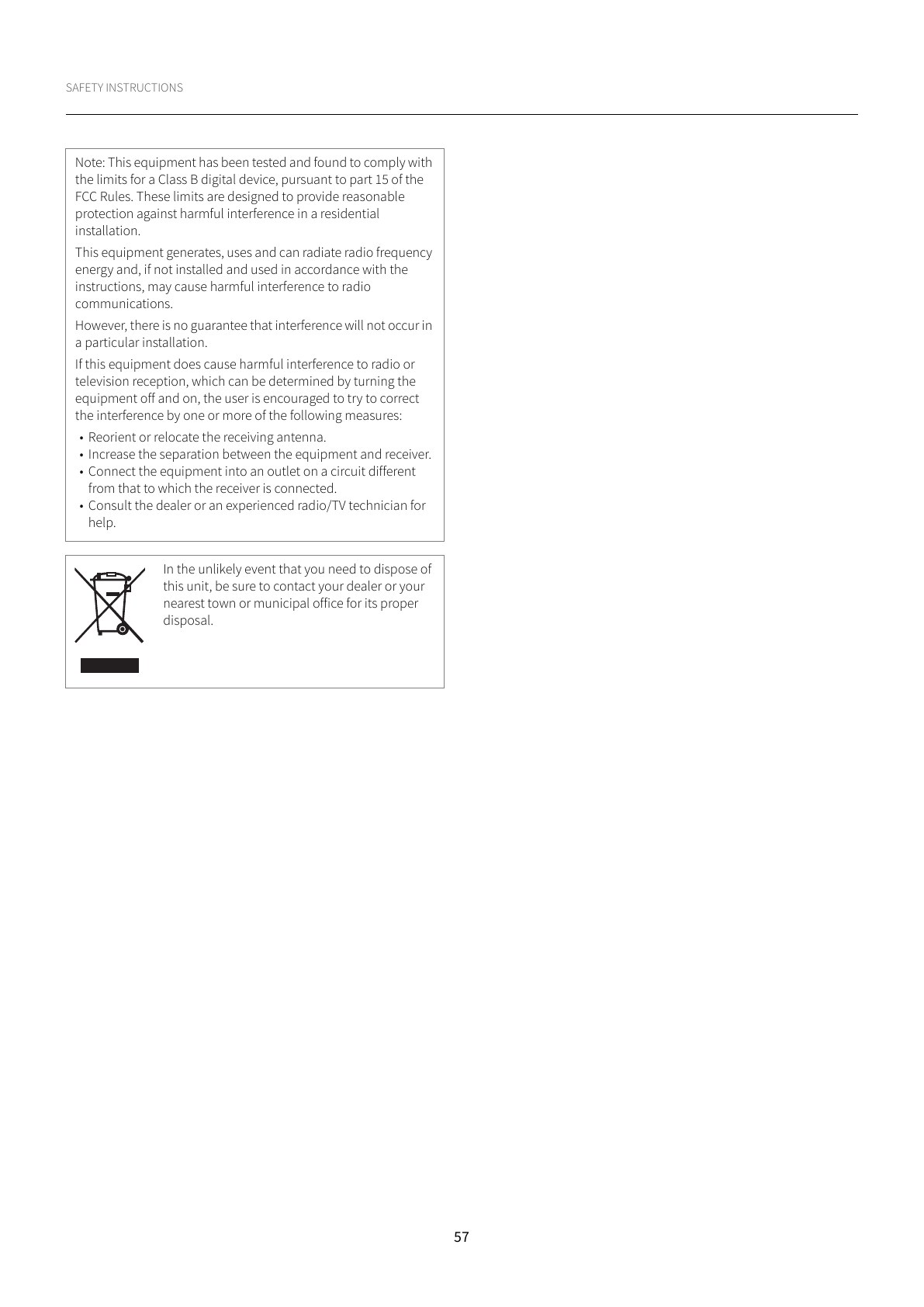

SAFETY INSTRUCTIONS 57 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. In the unlikely event that you need to dispose of this unit, be sure to contact your dealer or your nearest town or municipal office for its proper disposal.

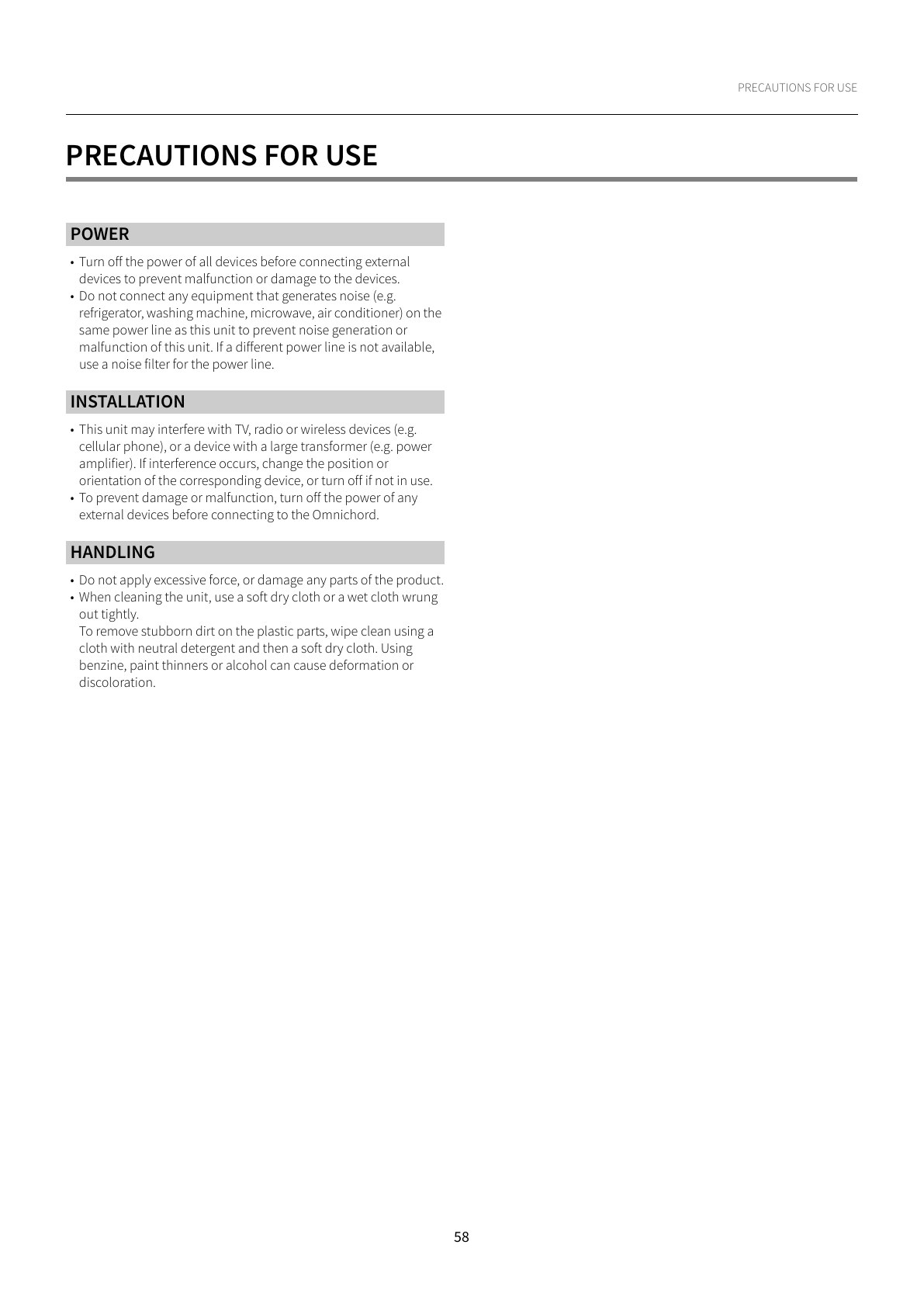

PRECAUTIONS FOR USE 58 PRECAUTIONS FOR USE POWER • Turn off the power of all devices before connecting external devices to prevent malfunction or damage to the devices. • Do not connect any equipment that generates noise (e.g. refrigerator, washing machine, microwave, air conditioner) on the same power line as this unit to prevent noise generation or malfunction of this unit. If a different power line is not available, use a noise filter for the power line. INSTALLATION • This unit may interfere with TV, radio or wireless devices (e.g. cellular phone), or a device with a large transformer (e.g. power amplifier). If interference occurs, change the position or orientation of the corresponding device, or turn off if not in use. • To prevent damage or malfunction, turn off the power of any external devices before connecting to the Omnichord. HANDLING • Do not apply excessive force, or damage any parts of the product. • When cleaning the unit, use a soft dry cloth or a wet cloth wrung out tightly. To remove stubborn dirt on the plastic parts, wipe clean using a cloth with neutral detergent and then a soft dry cloth. Using benzine, paint thinners or alcohol can cause deformation or discoloration.

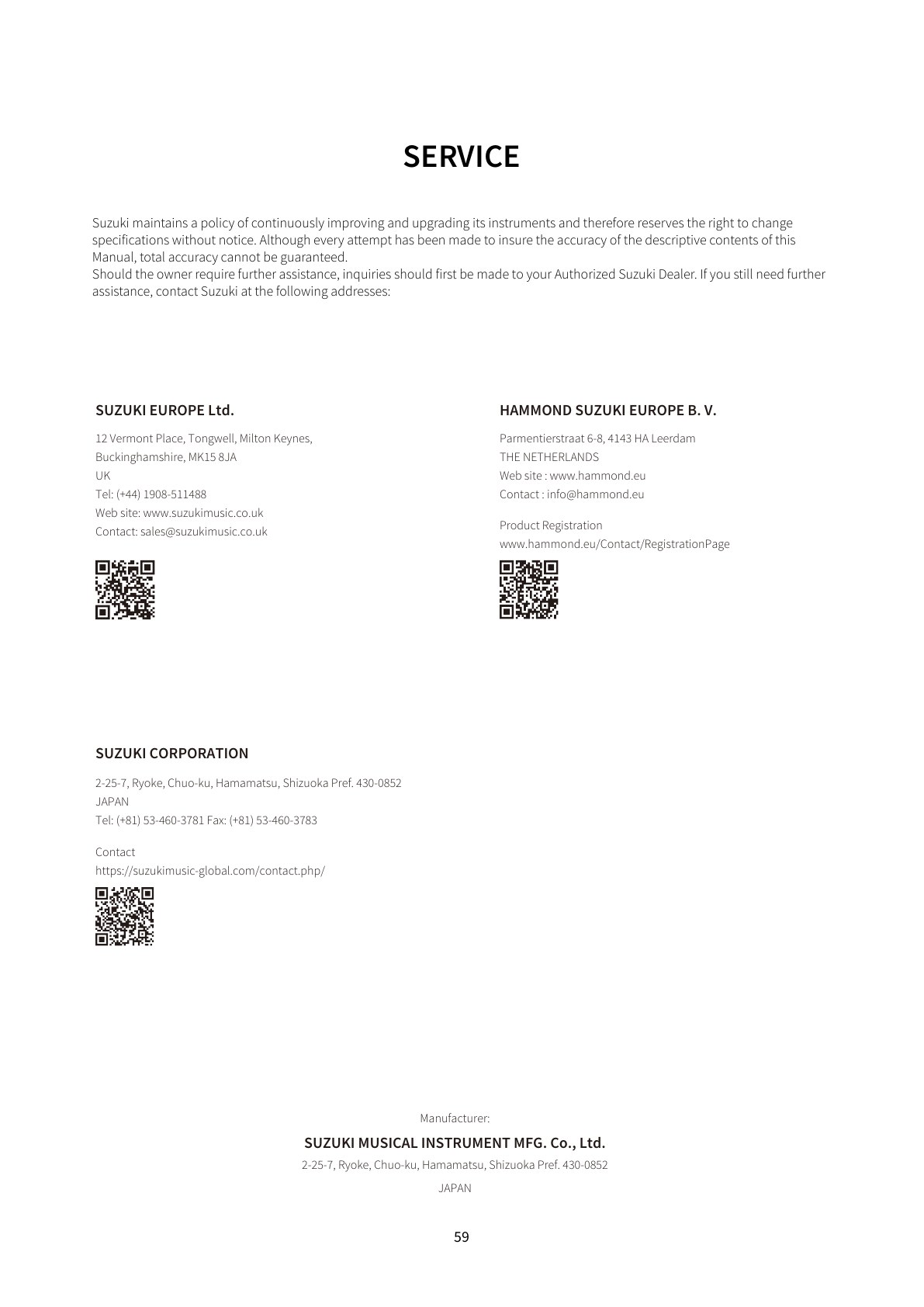

SUZUKI EUROPE Ltd. HAMMOND SUZUKI EUROPE B. V. SUZUKI CORPORATION Manufacturer: SUZUKI MUSICAL INSTRUMENT MFG. Co., Ltd. 2-25-7, Ryoke, Chuo-ku, Hamamatsu, Shizuoka Pref. 430-0852 JAPAN 12 Vermont Place, Tongwell, Milton Keynes, Buckinghamshire, MK15 8JA UK Tel: (+44) 1908-511488 Web site: www.suzukimusic.co.uk Contact: sales@suzukimusic.co.uk Parmentierstraat 6-8, 4143 HA Leerdam THE NETHERLANDS Web site : www.hammond.eu Contact : info@hammond.eu 2-25-7, Ryoke, Chuo-ku, Hamamatsu, Shizuoka Pref. 430-0852 JAPAN Tel: (+81) 53-460-3781 Fax: (+81) 53-460-3783 Product Registration www.hammond.eu/Contact/RegistrationPage Contact https://suzukimusic-global.com/contact.php/ 59 SERVICE Suzuki maintains a policy of continuously improving and upgrading its instruments and therefore reserves the right to change specifications without notice. Although every attempt has been made to insure the accuracy of the descriptive contents of this Manual, total accuracy cannot be guaranteed. Should the owner require further assistance, inquiries should first be made to your Authorized Suzuki Dealer. If you still need further assistance, contact Suzuki at the following addresses:
